ATI: SC29 Master Module Assembly 9121-SC29-M
ATI: SC29 Master Module Assembly 9121-SC29-M

Motor Power - 13 Amp/400V, Ethernet Signals - 2 Amp/60V, Tool Changer (TSI) - 4 Amp/24V, Signal - 5 Amp/250V


Price: (Members Only)


Availability: Usually Ships in 6 to 8 Weeks
Order #: 9121-SC29-M
Qty:

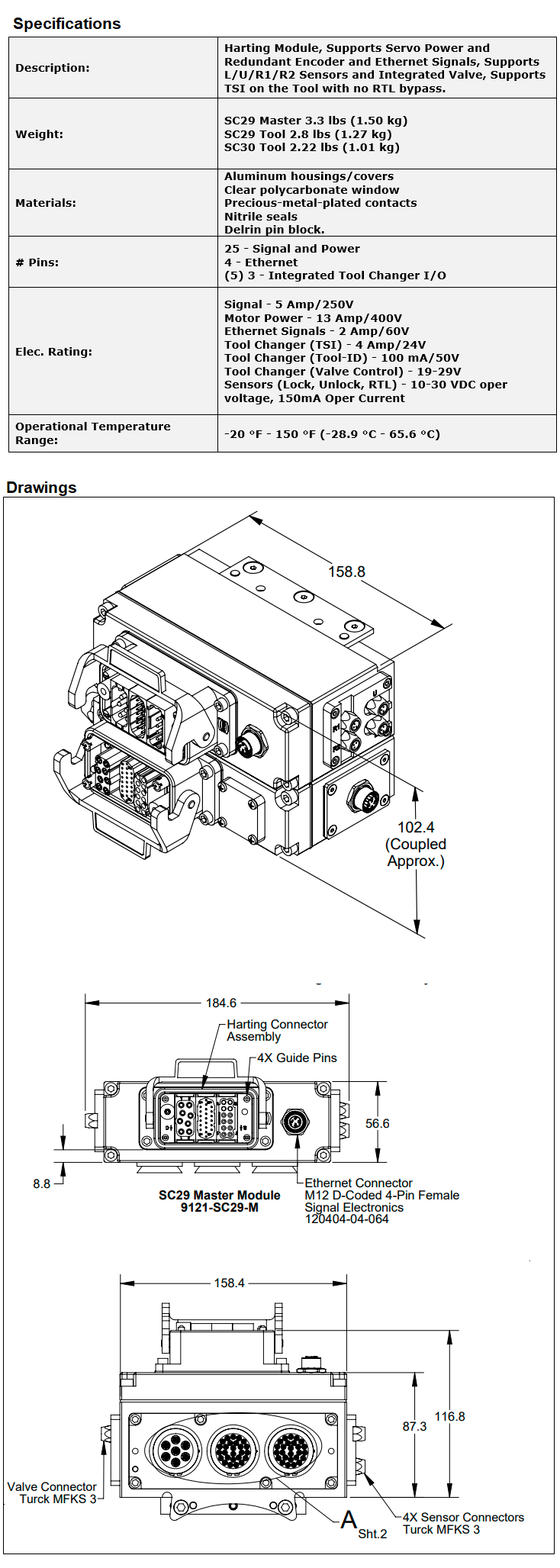

Description Specifications and Drawings


ATI: SC29 Master Module Assembly 9121-SC29-M
The module is designed to provide control of the Tool Changer, pass electrical power and signal connections to a servo motor, and pass Ethernet field bus data to the end‑of‑arm tooling. Power and signal circuits are electrically isolated both from each other and the Tool Changer. The wiring has EMI/RF shielding to protect it from noise. Compliant spring probes are provided on the Master and fixed contact pins on the Tool (refer to Figure 1.1). When the Tool Changer is coupled, the Master and Tool modules transfer signals and power across the spring probes and contact pins. A V‑ring seal surrounds the pin blocks to seal the connections from moisture and liquid while coupled
The modules are equipped with tool stand interlock (TSI), a safety feature that uses a physical break in the unlatch solenoid valve circuit to prevent an unintended tool release. The TSI circuit allows Tool Changer release ONLY when the Tool is in the stand or storage location. Refer to Section 2.1—Tool Side TSI for additional information regarding TSI.

Product Advantages
The module is designed to provide control of the Tool Changer, pass electrical power and signal connections to a servo motor, and pass Ethernet field bus data to the end-of-arm tooling.

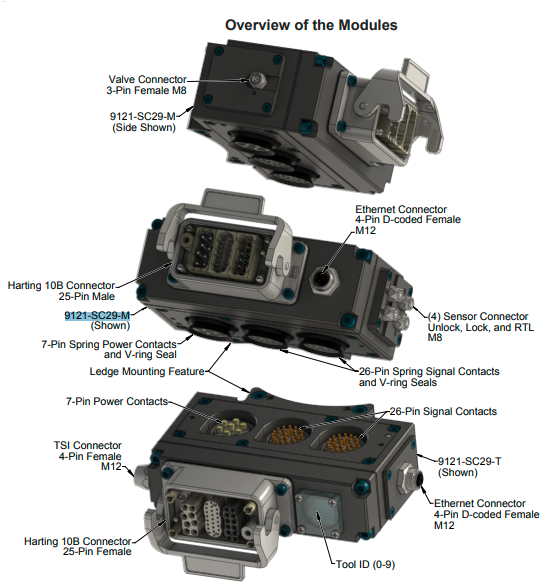

SC29 Master has: (1) Harting 10B connector (8-Pin power insert, 25-Pin signal insert, and 12-Pin I/O insert), (1) 3-Pin M8 female valve connector, (1) 4-Pin M12 D-Coded female Ethernet connector.
The SC29 Master is designed to mate with either the SC29 or SC30 Tool modules.
SC29 Tool has: (1) Harting 10B connector (8-Pin power insert, 25-Pin signal insert, and 12-Pin I/O insert), (1) 4-Pin M12 D-Coded female Ethernet connector, and (1) 4-Pin M12 female TSI connector.
SC30 Tool has: (1) 4-Pin M12 D-Coded female Ethernet connector, (1) 5-Pin Minifast female auxiliary power connector, and (1) 4-Pin M12 female TSI connector.
The SC29 and SC30 Tool modules support 0-9 Tool-ID.
Supports double-solenoid integrated valve (single-solenoid valve is not supported).
Supports L/U/R1/R2 sensors.
The SC29 and SC30 Tool modules support TSI on the Tool with no RTL bypass.
Spring-loaded pin block allows the Master and Tool modules to communicate across their interface when coupled.
A flexible pin boot surrounds the pin block to seal the connection from moisture and liquid while coupled.

Compatible QC Model

QC Model

Side

Notes

Adapter Plate Required

QC-113

Flat A with J-module

No

QC-210

No

QC-213

No

QC-310

Flat A with J-module

No

QC-313

Flat A with J-module

No

QC-510

No

QC-1210

No

QC-1310

Flat A with J-module

No

QC-1510

Flat A with J-module

No
