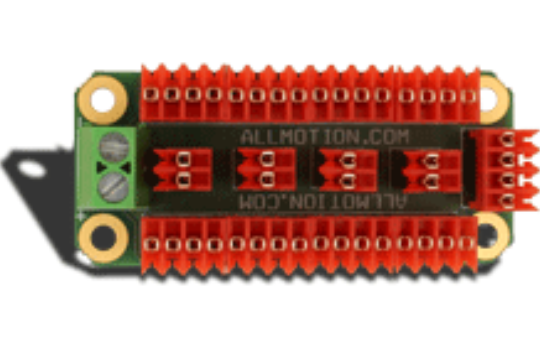

AllMotion: Accessories Daisy Chain Cards(EZBus Station 9 Way)

As the perfect companion to the EZQuad Servo, the EZ Bus Station allows easy daisy-chaining of the 4Wire (power + communication) connectors as well as having four power only connectors. Each EZ Bus Station 9 Way will allow eight Drives to be attached to one incoming 4 wire bus or will allow 7 Drives to be attached plus one Bus cable to continue on to another Daisy-Chaining point.

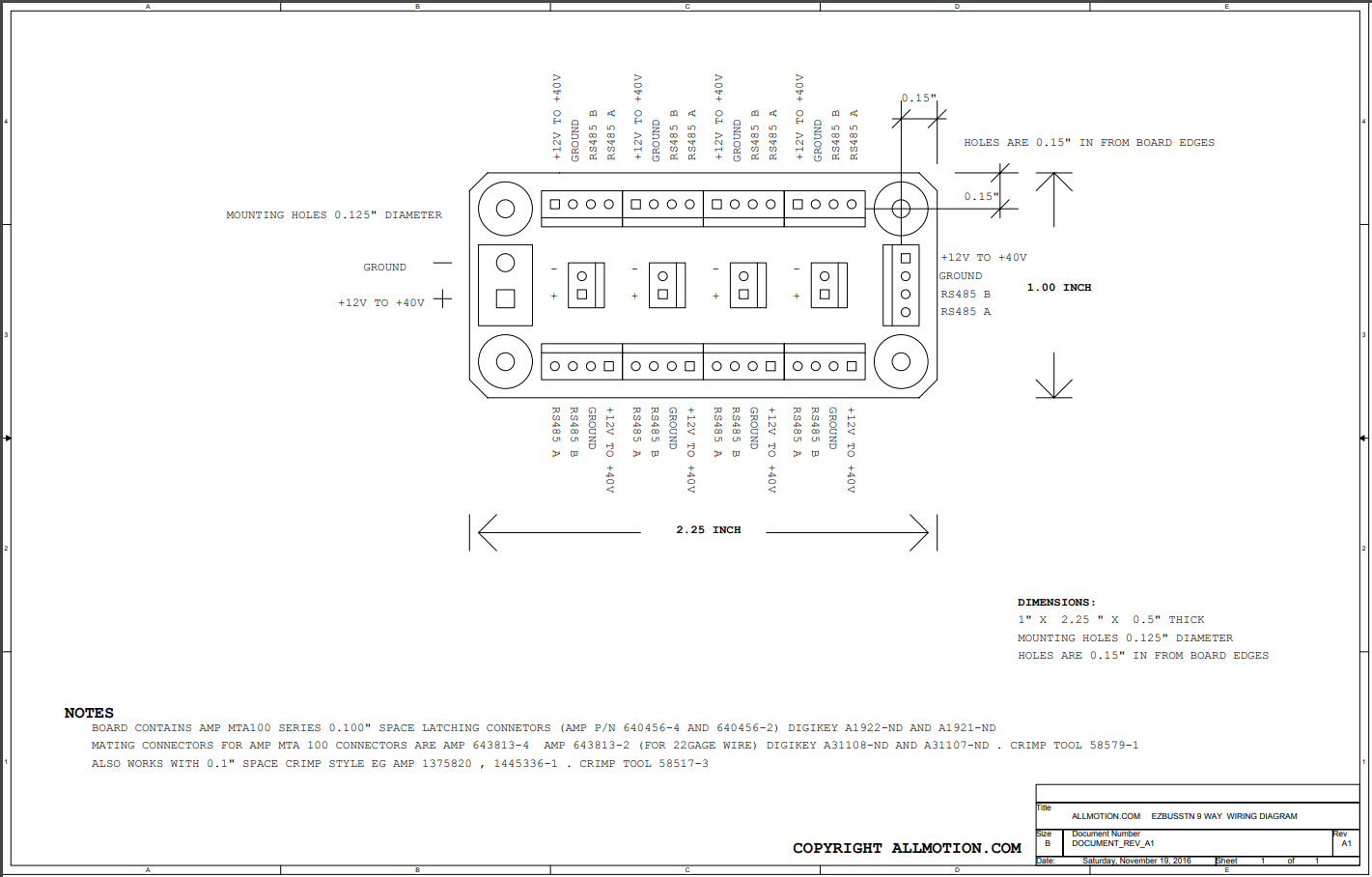

The connections are one-to-one for the four wires
