EZDT17 Daughter Boards

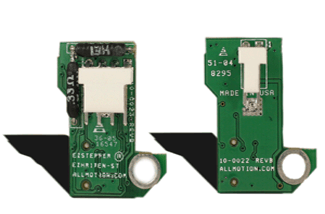

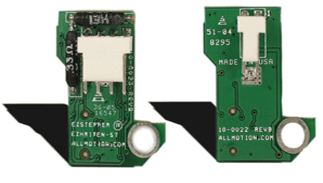

EZDT17 Daughter Boards allow the user to drive a second stepper motor, bidirectional DC load or Logic level loads. One of the daughter board is simply plugged into the expansion connector located on the EZHR17EN.

Model #:

• EZDT17-BD can drive up to a 1 amp load such as a DC motor or bidirectional solenoid. This option provides multi axis control in a small package.
• EZDT17-LO TTL Level Logic Outputs Can be used to control an external Stepper Motor Driver, Or TTL, ON/OFF and PWM outputs for additional TTL Level outputs.
• EZDT17-PW 1 Amp PWM Bi Directional Voltage Mode Driver for use with Resistive Heaters, DC Motors in open loop speed control.
• EZDT17-ST-16 drives a 2 phase stepper motor at a current of up to 1 amp (16 microsteps per step).
• EZDT17-ST-8 drives a 2 phase stepper motor at a current of up to 1 amp (8 microsteps per step).
