Adhesive backing tape (5 m) A-9584-2111

Home > Brands > Renishaw >

Renishaw Adhesive backing tape (5 m)

Alternate View

Request for Quantity & Price

Price: (Members Only)

Availability: 16 to 20 Weeks
Order #: A-9584-2111

Qty:

Description

Ordering Information

Specifications and Drawings

Renishaw Adhesive backing tape (5 m)

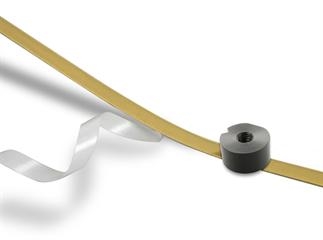

The scale is installed onto the axis substrate by a self-adhesive backing tape and the scale ends are rigidly fixed by means of epoxy-fastened end clamps, eliminating the need to drill holes. A simple applicator tool is available for quick and straightforward scale installation.

RESOLUTE accessories
Description	UoM	Part number	Price US$
FASTRACK separator kit
Centre section removal tool and 0.6 mm setting shim (?) kit	ea	A-9589-0066	52
Fastrack separator assembly	ea	A-9589-0122	52
End cover kit - for use with FASTRACK	ea	A-9589-0058	23
End cover kit for RTLC-S or RTLA-S scales	ea	A-9585-0035	23
Guillotine kit	ea	A-9589-0071	172
RGG-2 (2-part epoxy)	ea	A-9531-0342	6
RGW-1 Scale wipes (pack of 20)	ea	A-9523-4040	18
Clip set (pair incl. screws)	For use with RELA and RSLA scale ranges	A-9584-2049	12
Clamp set (pair incl. Screws, clip setting shim, and 1.5 mm hex)		A-9584-2050	12
25 off spare M3 low-profile screws for clips and clamps		A-9584-2047	17
Clip setting shim		M-9584-0928	1
Temporary bridge clamps (pair)		A-9584-2112	12
Adhesive backing tape (5 m)	For spares only - all REL* and RSL* scales are shipped with adhesive tape	A-9584-2111	26
