DC Servo Motor Controller Driver Starter Kit SK-EZQUAD

Everything to get 4 Servos running within half an hour!

The EZQUADSK Starter Kit combines an EZQUAD Servo Controller + Driver and communication cables required for the first time user to get 4 Servos moving in less than half an hour. The user needs to provide only a power supply, servos and a PC.

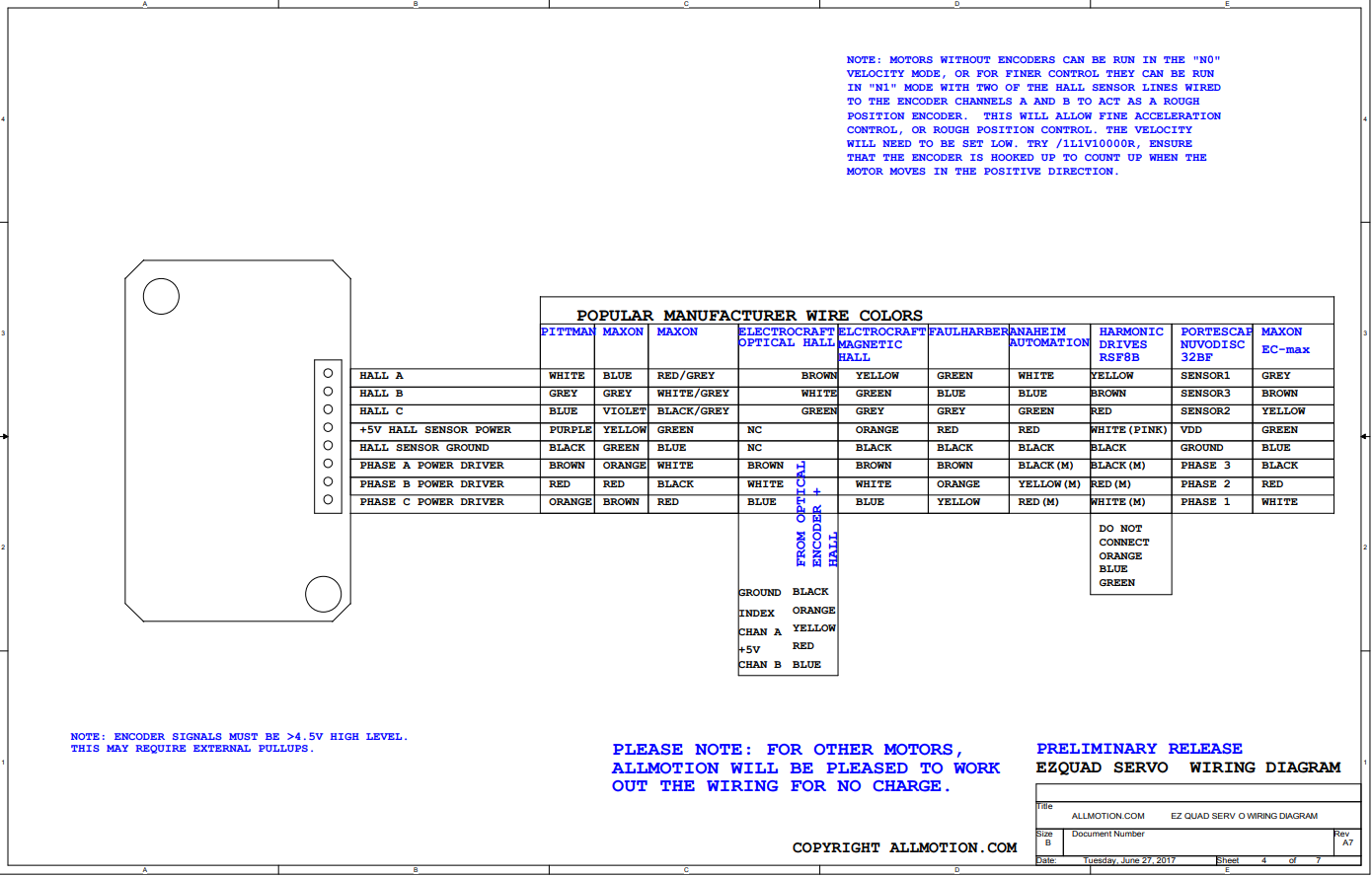

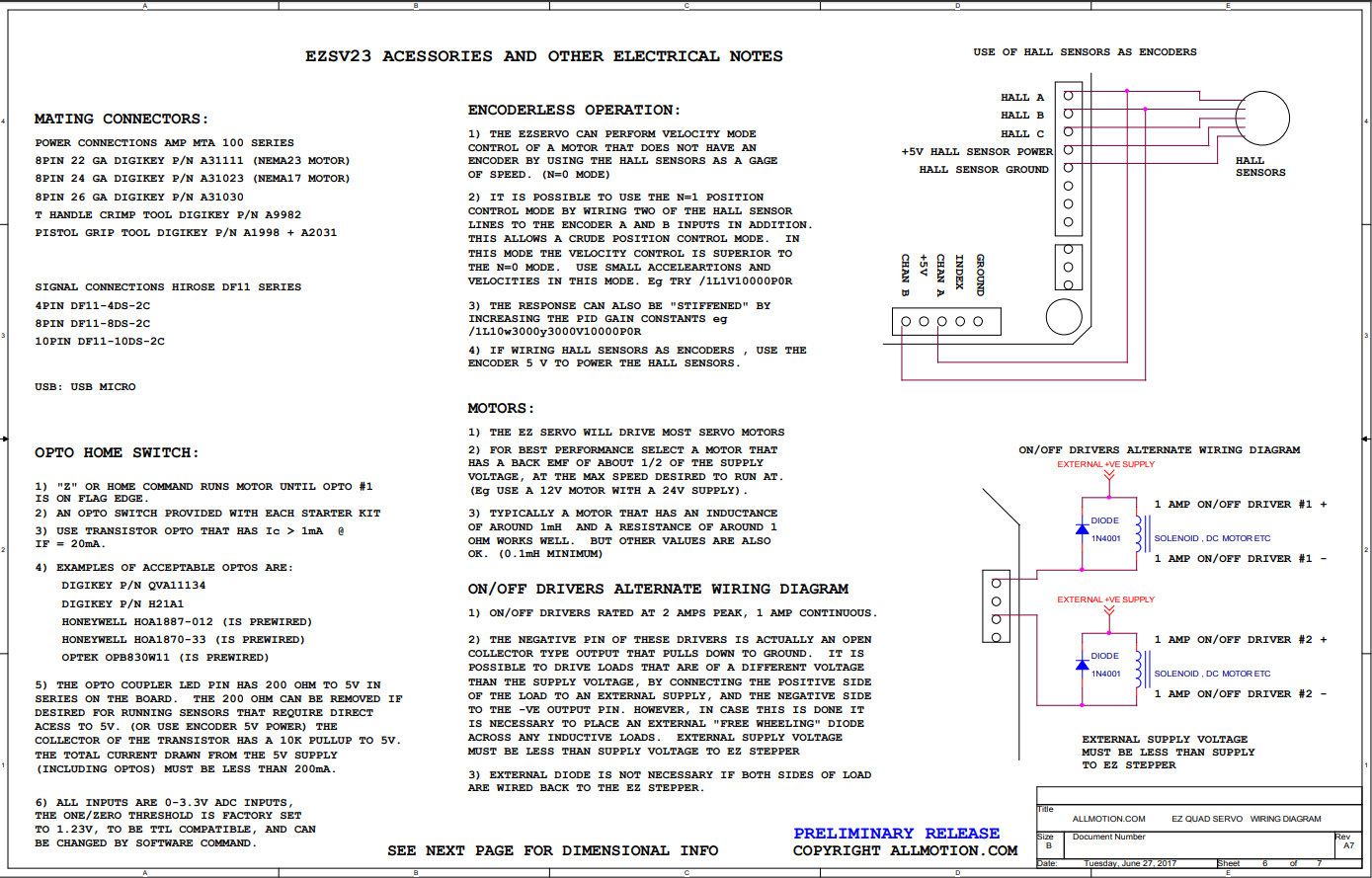

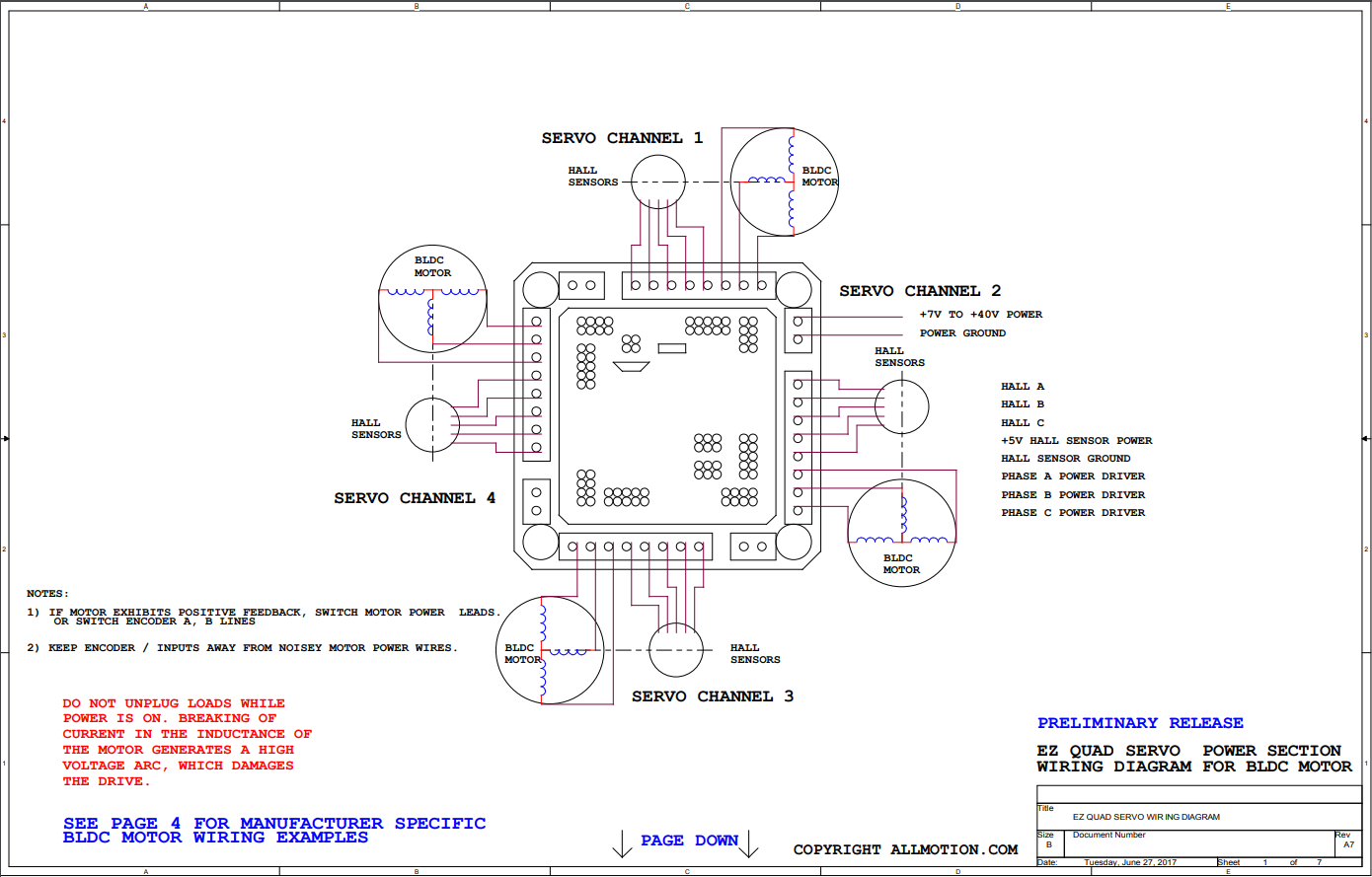

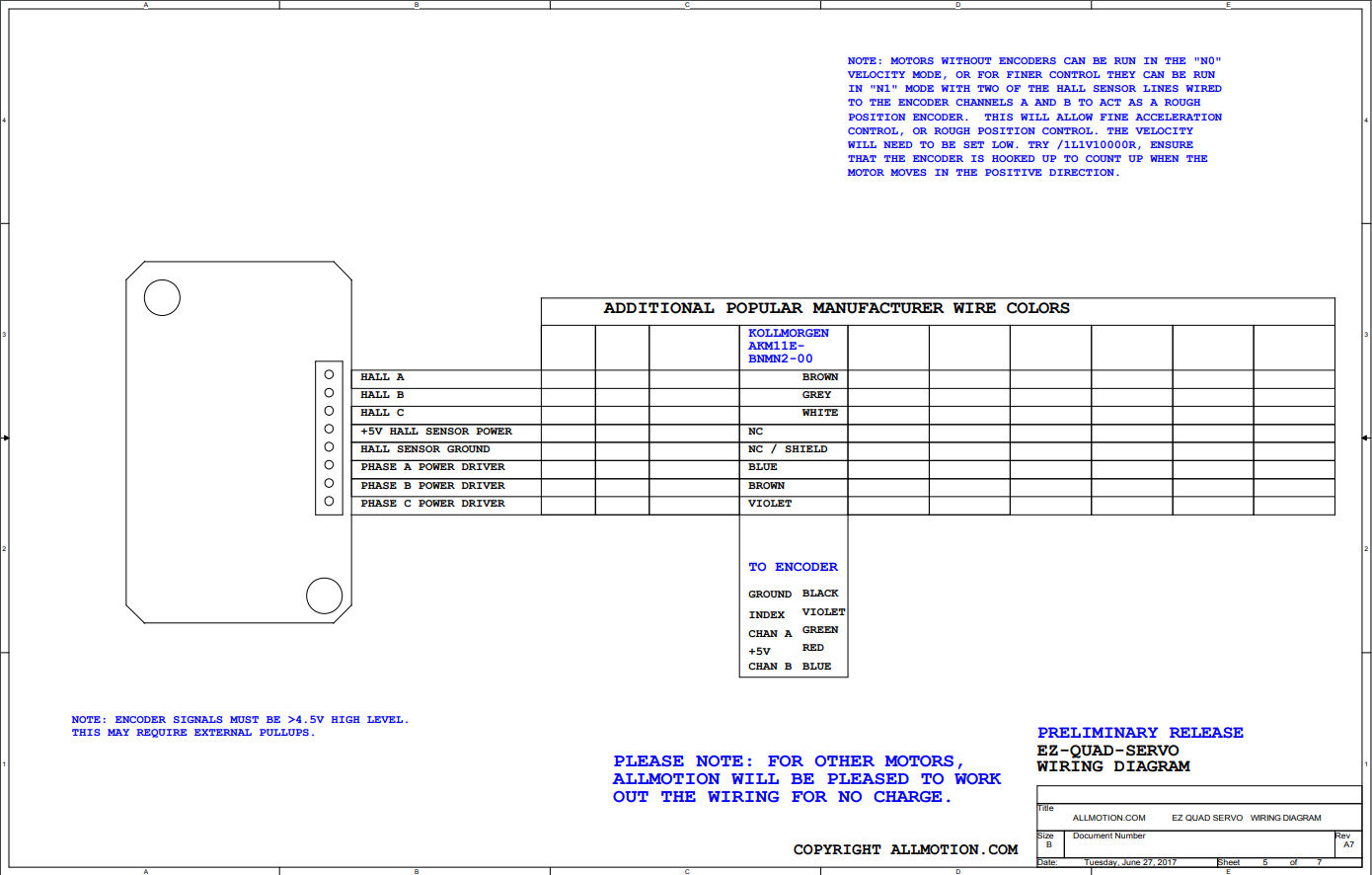

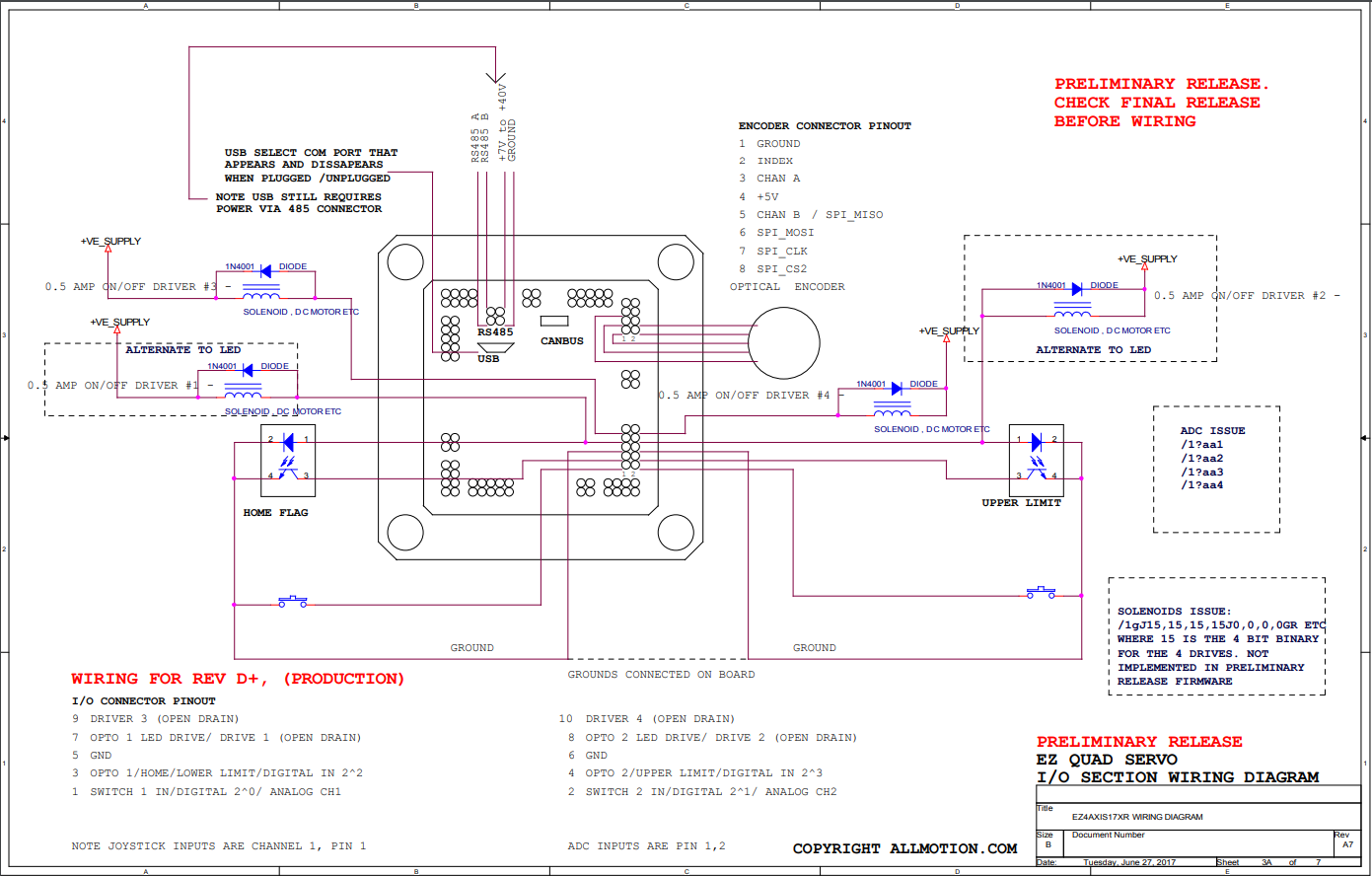

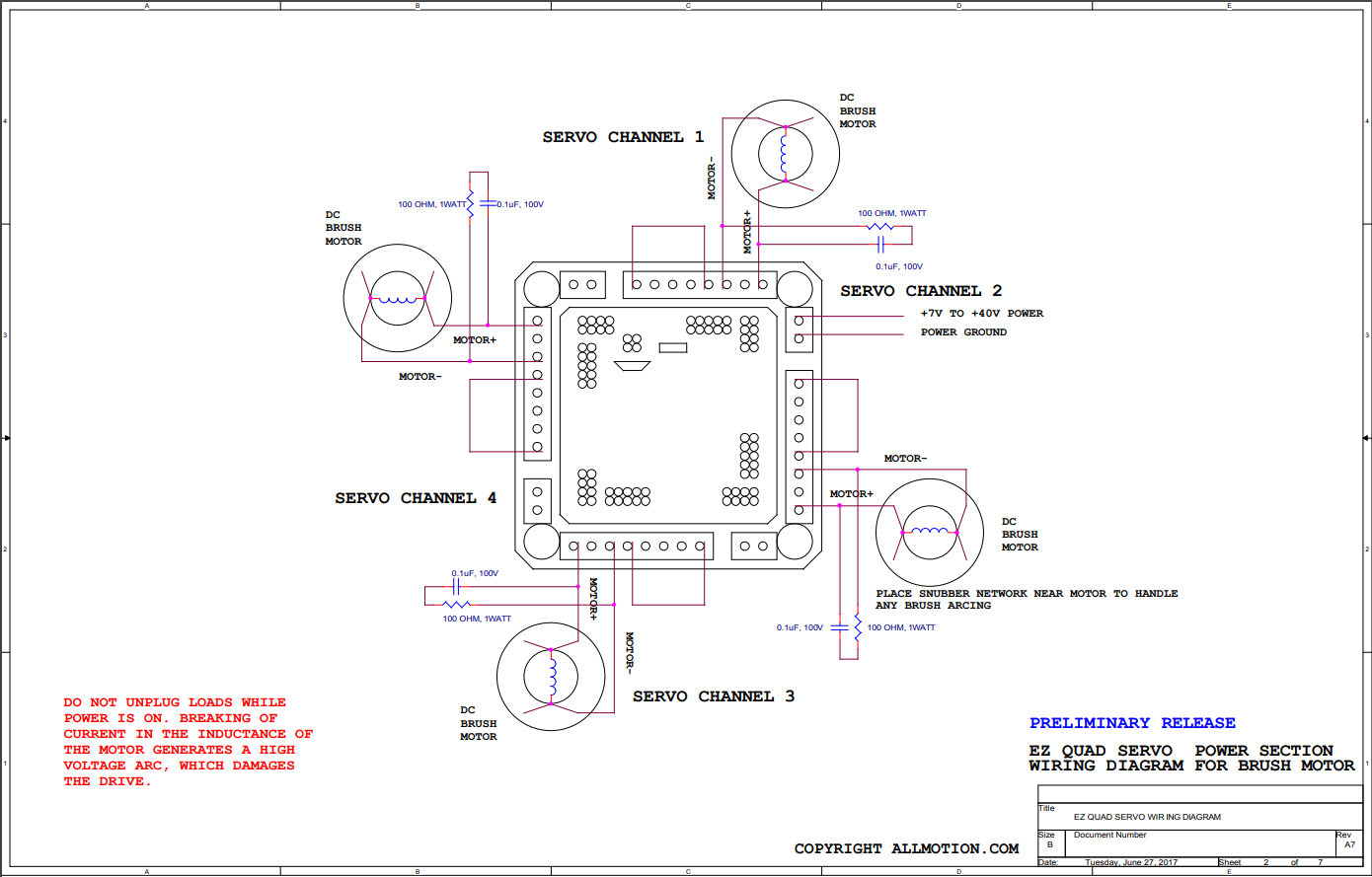

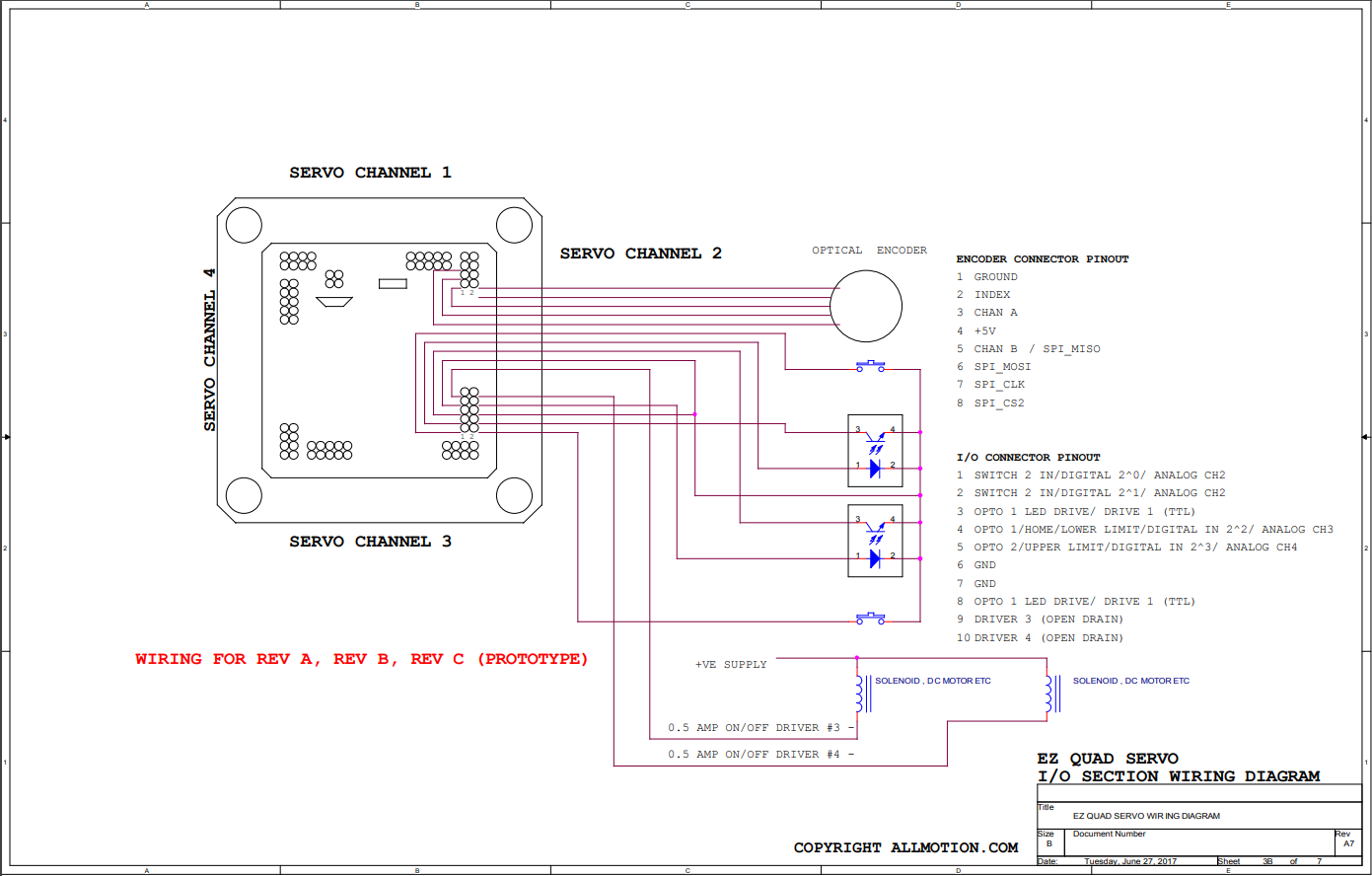

The EZQUAD Servo Wiring Diagram shows exactly how to wire the EZ4AXIS Stepper Motor Controller + Drive.

Once your motor is connected, connect the USB cable to your PC and you'll be ready to start moving your motor. Please refer to the EZQUAD Servo User Guide available on the website.

Kit Includes:

· One EZQuad Servo Controller + Driver Board.

· One Pre-Wired Opto Interrupter, for use as a home flag.

· USB Cable

· Please download most current documentation and software from the Website.

Support Links

· EZQUAD Servo Wiring Diagram

· EZStepper Command Set

· EZ Starter Kit Instructions

· EZStepper Windows Application
