Anybus® Communicator CAN - PROFINET AB7317

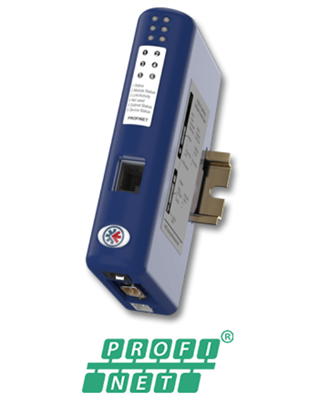

Anybus® Communicator CAN - PROFINET AB7317

Alternate View

Price: (Members Only)

Quantity in Stock:2

Order #: AB7317
Qty:

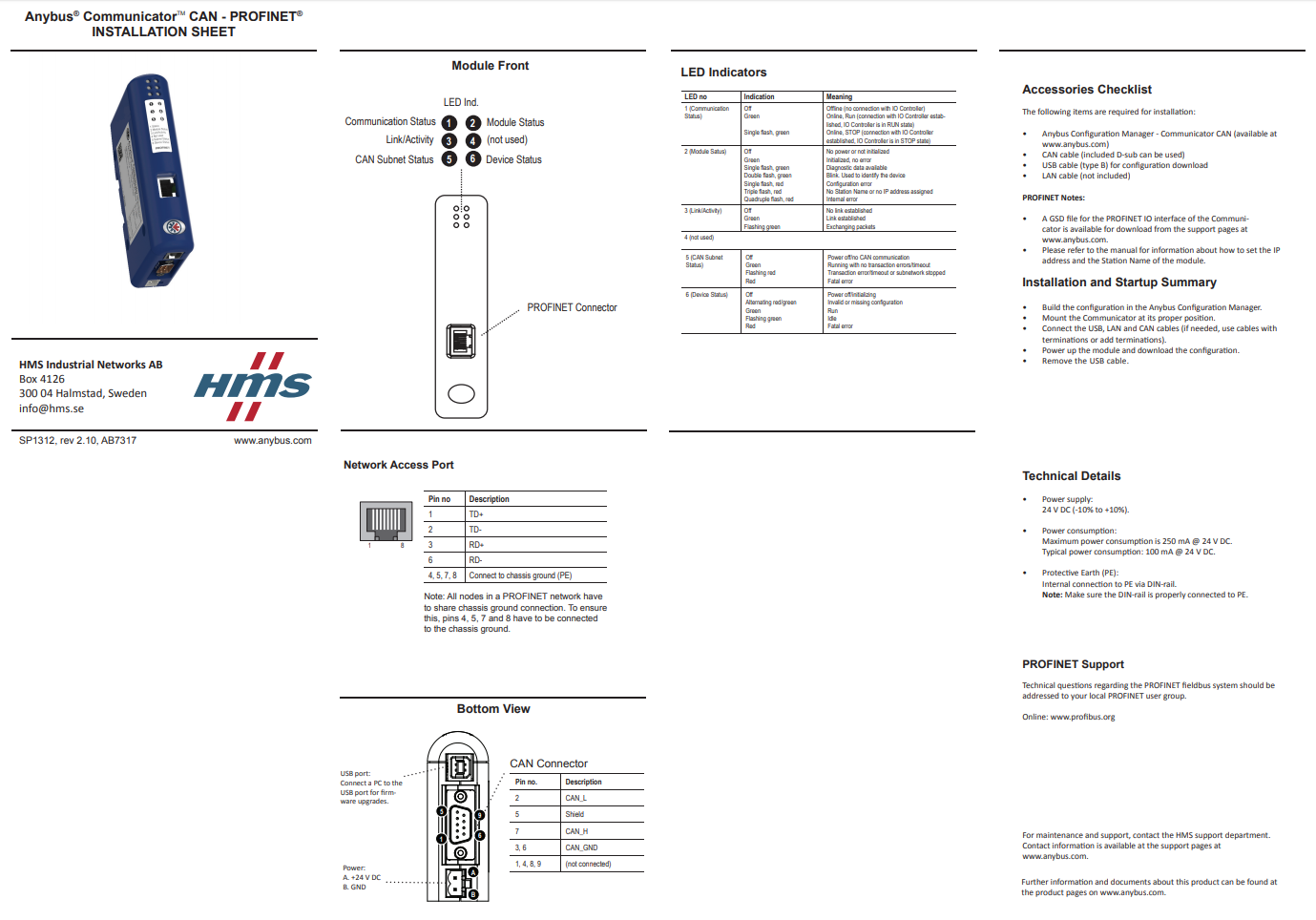

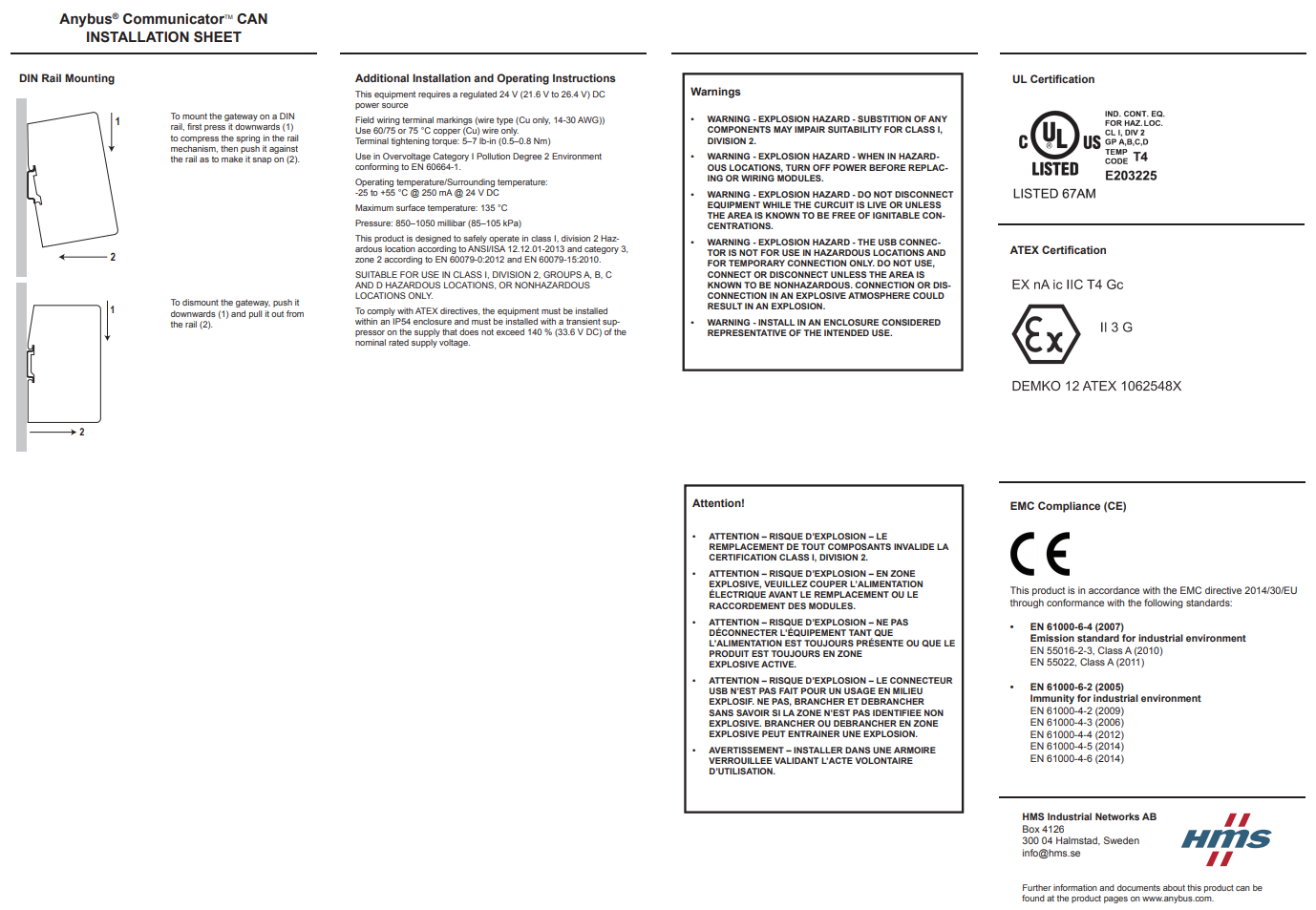

Description Ordering Information Specifications and Drawings


Anybus® Communicator CAN - PROFINET AB7317

Integrate your CAN-based industrial devices and equipment to a PROFINET control system without the need for any changes to the device. Just connect, configure and you are done!

The Anybus Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices with a CAN-based protocol to PROFINET. The gateway performs an intelligent protocol conversion and presents the CAN data to the Master PLC/Controller as easily processed I/O data.

The Communicator is slim stand-alone gateway designed for IP20 and DIN-rail mounting, requiring a 24-volt power supply. The Communicator is conformance tested to current PROFINET-IO specifications guaranteeing network compatibility.

TYPICAL CAN APPLICATIONS

Typical CAN applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.


CAN configuration - Anybus Configuraation Manager

The Anybus Configuration Manager (ACM) is included with the purchase of the Anybus Communicator.

  • Graphical CAN frame building support using several ready-made CAN functions.
  • Can configure any CAN 2.0A or 2.0B based protocol (11 and 29 bit identifiers).
  • Configures upto 128 transactions containing a total of 256 CAN frames
  • Monitor/Modify function of process I/O data informing of CAN transaction status
  • Diagnostic transaction Live List in the network I/O informing of CAN transaction status
  • Multi-language support, supporting English, German, Spanish, Italian, French, Polish, Russian, Chinese and Japanese
  • Handy Save/Load function allows for a completed configuration to be re-used for many other installations
  • Password protection prevents unauthorized upload and download of configurations

PROFINET Interface Features

  • Complete PROFINET-IO Soft-Real-Time (RT) communication
  • Max 512 bytes of Input and 512 bytes of Output data
  • Up to 64 slots / 1 sub slot
  • Cyclic data exchange (10 ms cycle time)
  • Acyclic Data Exchange (Record Data Requests)
  • Baud rate 10/100 Mbit/s
  • TCP/IP Configuration via DCP (Discovery and Configeration Protocol)
  • PROFINET uplink configeration via GSDML file
  • 1xRJ45 network connector

Features and benefits

  • Saves machine builders and device manufacturers of integrating a PROFINET interface
  • Allows system integrators to retro-fit older automation devices into modern PROFINET communication structures
  • Requires no hardware or software changes to be made to the connected device
  • Compatible with all PLCs with PROFINET support
  • Performs complete serial protocol conversion, no PLC function blocks required
  • Flexible CAN frame building method for both Response/Request or Produce/Consume protocols
  • Intelligent I/O data mapping within the Communicator permits even devices with slow CAN communication can be integrated without any restrictions to the upper network
  • Integrated Email client, FTP server and embedded webserver for diagnostics and data visualization
  • Always free technical support from HMS and global Anybus Distributors
