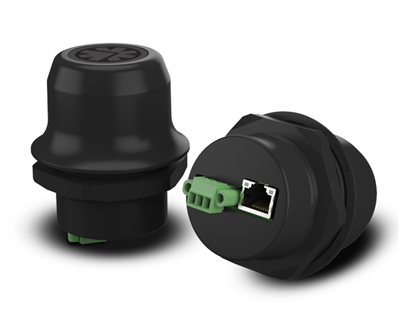

Anybus® Wireless Bolt™ RJ45 PoE AWB2030
Anybus® Wireless Bolt™ RJ45 PoE AWB2030

Alternate View



Price: (Members Only)


Availability: Lead time is 2-4 weeks

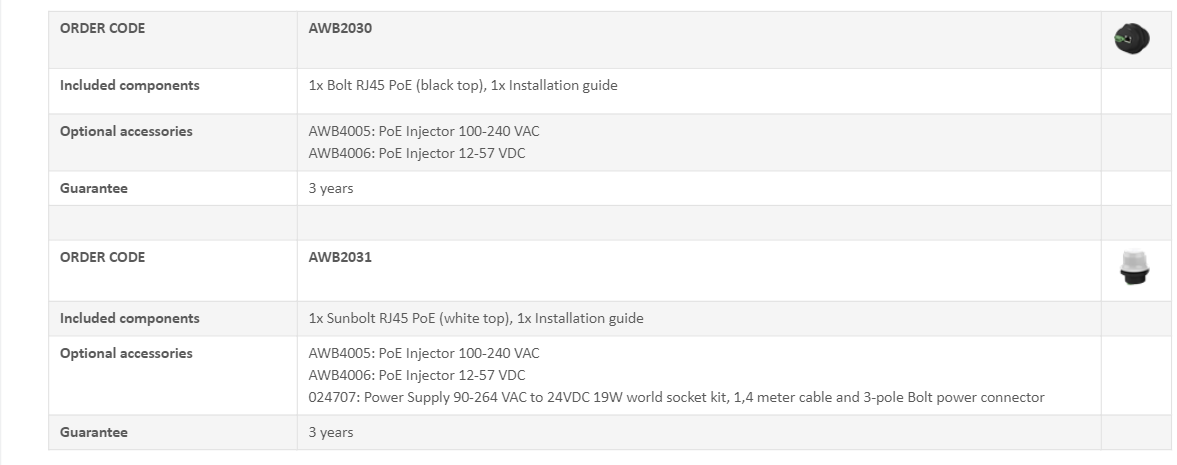

Order #: AWB2030
Qty:

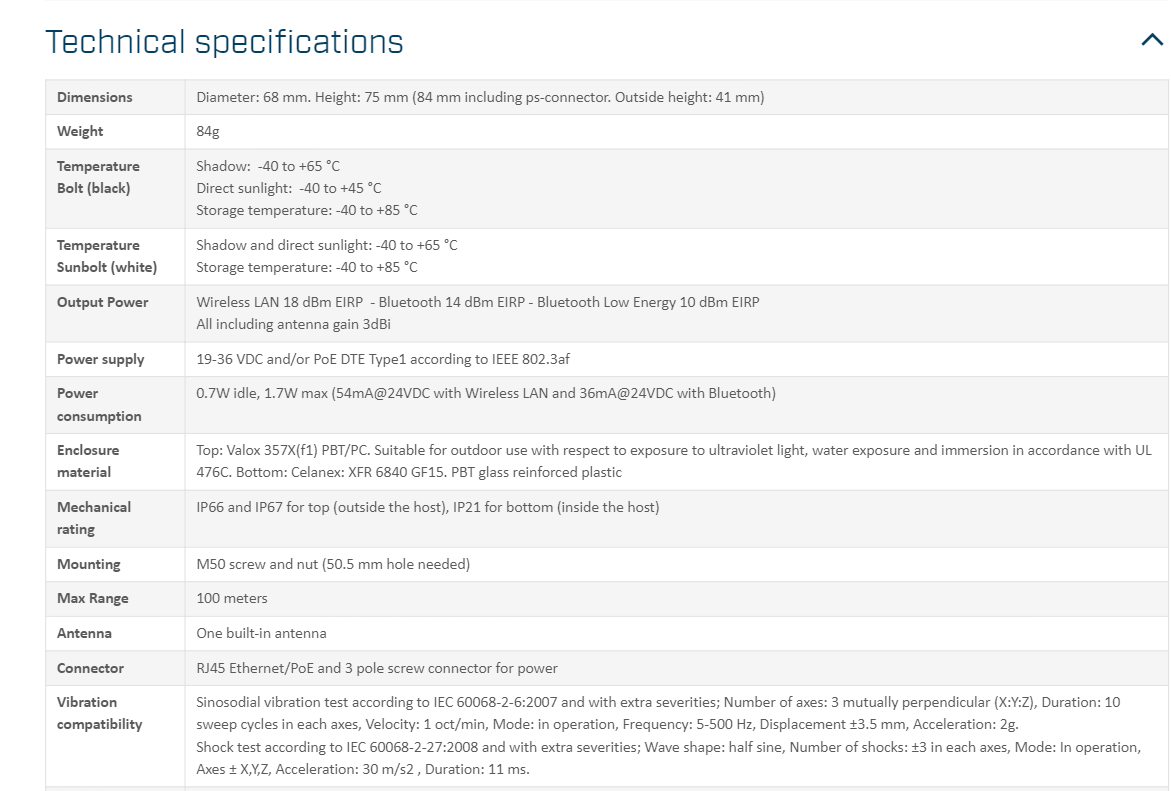

Description Specifications and Drawings

Anybus® Wireless Bolt™ RJ45 PoE AWB2030

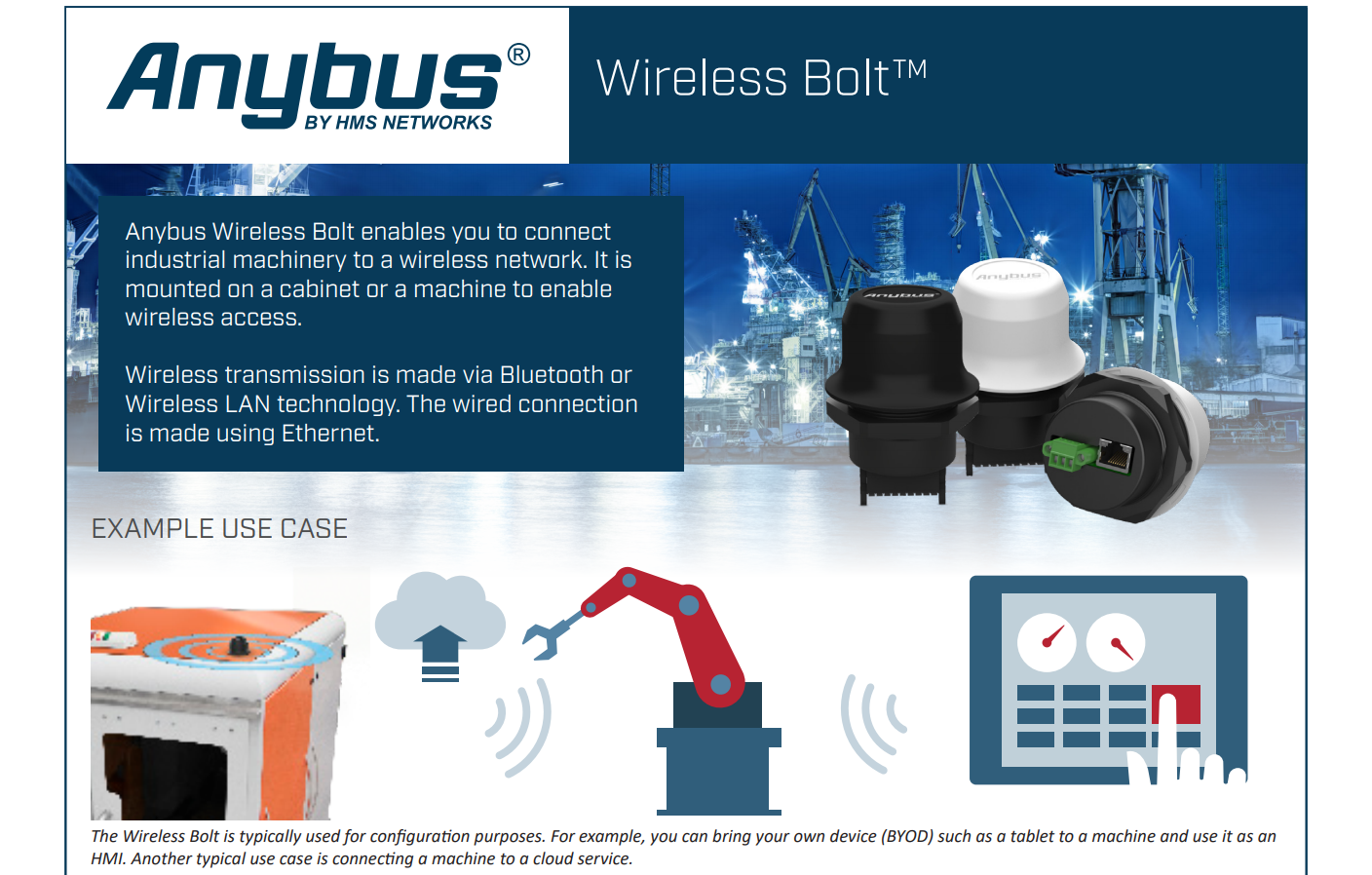

Anybus Wireless Bolt enables you to connect industrial machines and devices to a wireless network. It is attached onto a cabinet or a machine to enable wireless access over Bluetooth®, Bluetooth Low Energy® or Wireless LAN (WiFi).

On the wired side, the Anybus Wireless Bolt communicates over Industrial Ethernet, supporting protocols such as BACnet/IP, PROFINET, EtherNet/IP, Modbus TCP as well as all TCP and UDP based protocols.


CONFIGURE MACHINES WIRELESSLY

Anybus Wireless Bolt gives you direct access to configure or troubleshoot your machinery. With a range of 100 meters you can access the internal web pages via a laptop, tablet or smartphone. BYOD (Bring Your Own Device) means that you no longer need an expensive HMI. A machine operator or technician does not need to be physically located at the machine to gain access.

AN ALL-IN-ONE SOLUTION

With Anybus Wireless Bolt you get an All-in-one package featuring, connector, communication processor and integrated antenna in the same unit, with an exterior IP67 protection class.

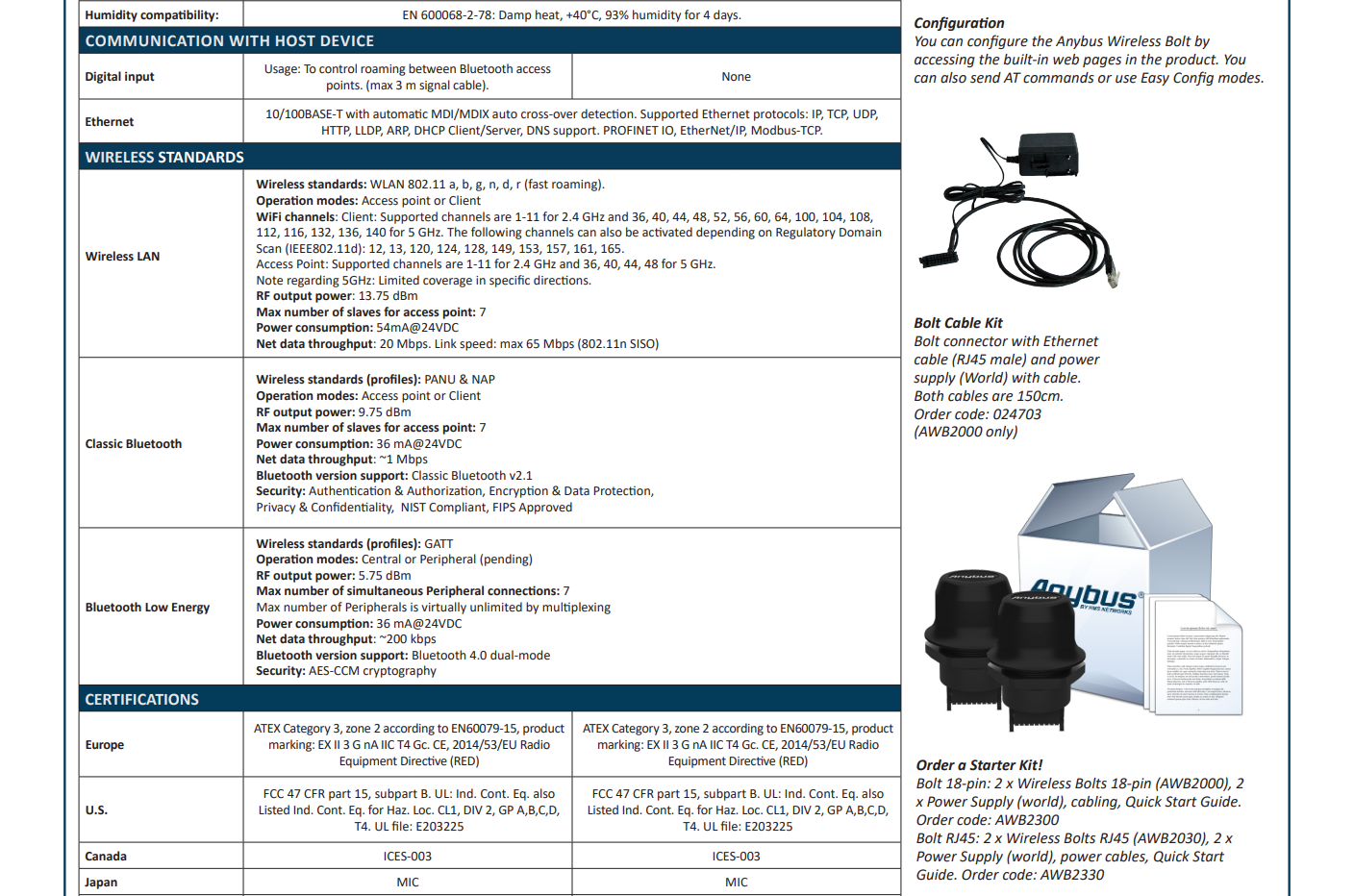

Wireless LAN Interface

  • Wireless standards: WLAN 802.11 a, b, g, n, d.
  • Operation modes: Access point or Client
  • Wireless LAN bands: 2.4GHz and 5GHz
  • RF output power: 18 dBm EIRP (including antenna gain 3dBi)
  • Max number of slaves for access point: 7
  • Power consumption: 54mA@24VDC
  • Net data throughput: 20 Mbps. Link speed: max 65 Mbps (802.11n SISO)
  • Security: WEP 64/128, WPA, WPA-PSK and WPA2, TKIP and AES/CCMP, LEAP, PEAP including MS-CHAP.

Bluetooth Interface

  • Wireless standards (profiles): PANU & NAP
  • Operation modes: Access point or Client
  • RF output power: 14 dBm EIRP (including antenna gain 3dBi)
  • Bluetooth conducted sensitivity: -90 dBm
  • Max number of slaves for access point: 7
  • Power consumption: 36 mA@24VDC
  • Net data throughput: ~1 Mbps
  • Bluetooth version support: Classic Bluetooth v2.1
  • Security: Authentication & Authorization, Encryption & Data Protection
  • Privacy & Confidentiality, NIST Compliant, FIPS Approved

Bluetooth Low Energy Interface

  • Wireless standards (profiles): GATT
  • Operation modes: Central or Peripheral (pending)
  • RF output power: 10 dBm EIRP (including antenna gain 3dBi)
  • Max number of simultaneous connections for Central:7
  • Power consumption: 36 mA@24VDC
  • Net data throughput: ~200 kbps
  • Bluetooth Low Energy version: 4.0 dual-mode
  • Security: AES-CCM cryptography

Ethernet Interface

  • Supports Ethernet protocols: IP, TCP, UDP, HTTP, LLDP, ARP, DHCP Client/Server, DNS support
  • Supports wireless bridging of Industrial Ethernet protocols: BACnet/IP, EtherNet/IP, Modbus-TCP, PROFINET
  • Ethernet interface: 10/100BASE-T with automatic MDI/MDIX cross-over
  • Layer 2 bridging mode between Anybus Wireless Bolts or Bridges, Otherwise Layer 3 TCP/UDP bridging

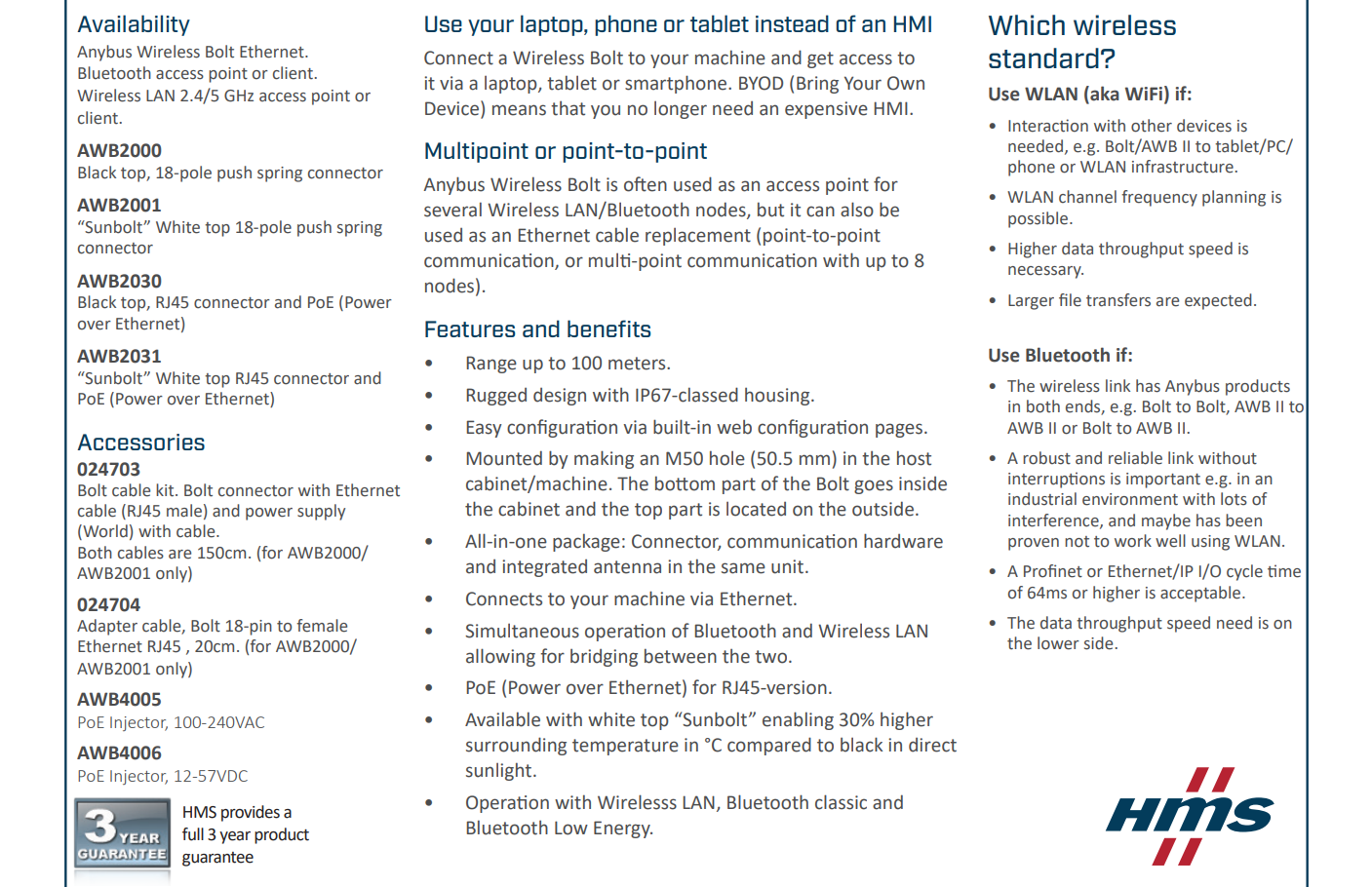

Features and benefits

  • Configure or troubleshoot industrial machinery over a wireless network
  • Increase flexibility and mobility. Eliminate expensive fixed HMI’s by using a laptop, tablet or smartphone
  • Connect to moving field equipment such as AGV’s (Automated Guided Veicles)
  • Fast Roaming (IEEE 802.11r), High link speed (IEEE 802.11n)
  • Full compatibility with Anybus Wireless Bridge — a wireless product for cable replacement
  • Connect to a Cloud Service of your choice or get live data and integrate it into a SCADA system
  • Supports Ethernet and protocols such as: BACnet/IP, EtherNet/IP, Modbus-TCP, PROFINET, TCP/UDP
  • Simultaneous operation of Bluetooth and Wireless LAN allowing for bridging between the two networks
  • Security features for a secure industrial operation
  • Dual power supply, PoE (Power over Ethernet) and/or 3-pole 19-36VDC connector
  • Available with white top Sunbolt enabling 30% higher surrounding temperature compared to black in direct sunlight.
  • Operation with Wirelesss LAN, Bluetooth classic and Bluetooth Low Energy.

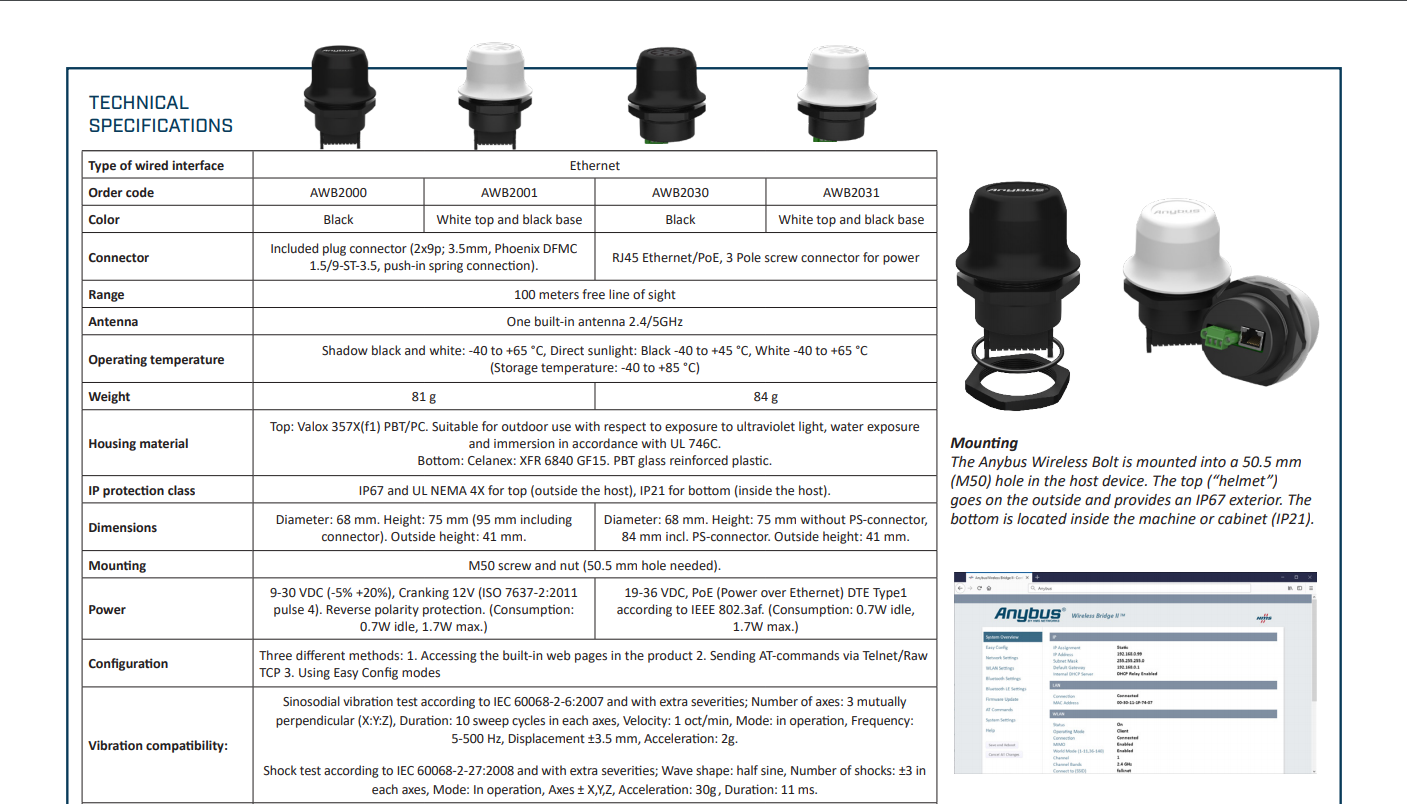

How to mount: Attaching a Wireless Bolt on a machine or cabinet.
How to configure Anybus Wireless Bolt
Wireless access for machines and cabinets via Bluetooth or WiFi — Anybus Wireless Bolt
