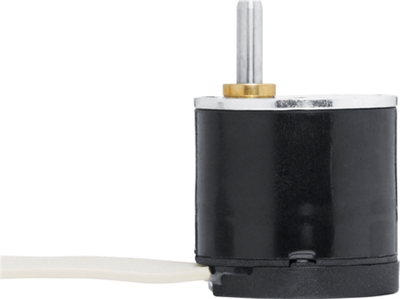

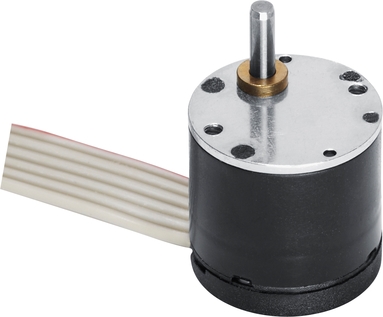

FAULHABER Brushed DC-Gearmotors: 1512...SR IE2-8 Series
1512...SR IE2-8 Series

Alternate View


Faulhaber
833-9MOTION [email protected].

Price: (Members Only)


Availability: Usually Ships in 3-21 Business Days
Order #: 1512...SR-IE2-8


Model No.:


Qty:


Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

Brushed DC-Gearmotors
: Series 1512...SR IE2-8

Precious Metal Commutation with integrated Encoder (Diameter: 15 mm, Length: 14.3 mm)

DC-Motors

FAULHABER DC-Micromotors differ from conventional iron core DC motors in that the rotor consists of a self-supporting, skew wound copper coil.

Among the inherent properties of this pioneering design are an extremely low rotor inertia and zero cogging or preferred rotor position. These factors help to define the uniquely high, power to volume ratio of the motors as well as their extremely dynamic performance characteristics.

DC-Gearmotors

The innovative FAULHABER Flat DC Gearmotors are also available with an extremely compact integrated spur gearhead for speed reduction and a significant increase in the available output torque.

There are a wide variety of reduction ratios available in the same compact housing design. Integrated incremental encoders are also available for speed and position control.

Features and benefits:

  • Extremely compact

  • Smooth and quiet

  • Variety of reduction ratios in the same motor size

Model No.: 1512U003SR 112:1 IE2-8, 1512U003SR 13:1 IE2-8, 1512U003SR 324:1 IE2-8, 1512U003SR 39:1 IE2-8, 1512U003SR 6:1 IE2-8, 1512U006SR 112:1 IE2-8, 1512U006SR 13:1 IE2-8, 1512U006SR 324:1 IE2-8, 1512U006SR 39:1 IE2-8, 1512U006SR 6:1 IE2-8, 1512U012SR 112:1 IE2-8, 1512U012SR 13:1 IE2-8, 1512U012SR 324:1 IE2-8, 1512U012SR 39:1 IE2-8, 1512U012SR 6:1 IE2-8
