Faulhaber: Brushless DC-Servomotors 2232...BX4S Series

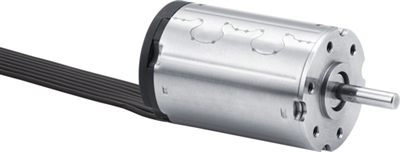

​Brushless DC-Servomotors:  2232...BX4S Series

Alternate View


Faulhaber
833-9MOTION [email protected].

Price: (Members Only)


Availability: Lead Time is 20 Business Days
Order #: 2232...BX4S


Model No.:


Qty:

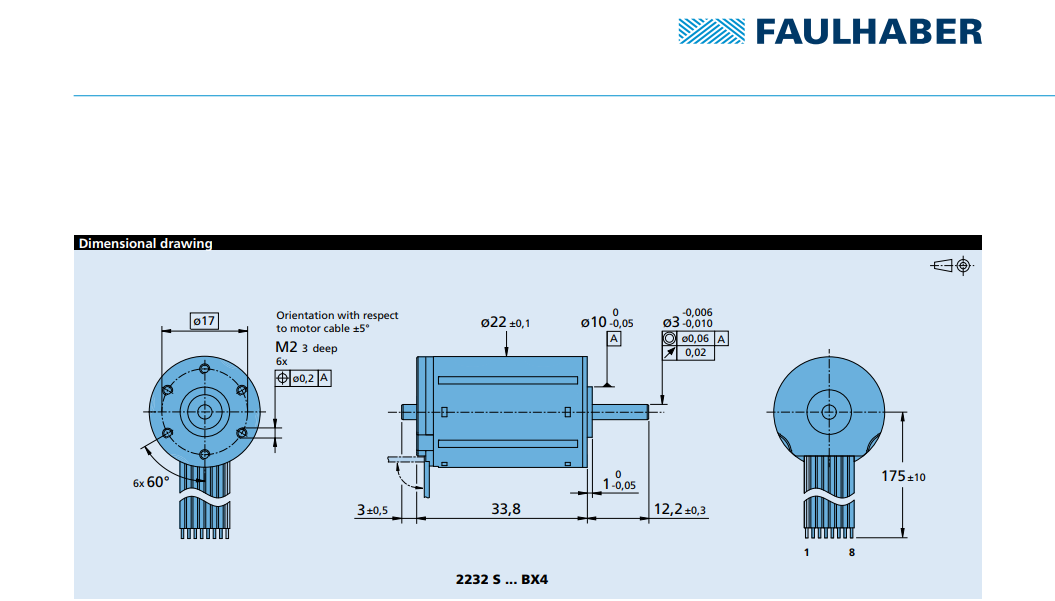

Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

Brushless DC-Servomotors
: Series 2232...BX4S

4 Pole Technology

Brushless DC-Motors

Whether it's high torque 4 pole servomotors, highly efficient flat motors,or compact slotless motors, FAULHABER specializes in getting the most performance out of the smallest package.

Due to their design FAULHABER brushless motors are ideal for heavy duty servo applications with frequent overload conditions as well as for continuous duty applications where maximum operational lifetime is required.

Brushless DC-Servomotors

FAULHABER Brushless DC-Servomotors are designed for demanding applications where compact size and high performance are key. They are available in high torque 4-Pole or high power 2-Pole versions

FAULHABER specializes in compact functional integration and many motors are available with integrated drive electronics, encoders, and analog hall sensors, which can in many cases replace the need for an encoder.

Features and Benefits:

  • High efficiency slotless design

  • High-torque or high-speed with small size and low weight

  • Highly dynamic acceleration and deceleration

  • Low noise

  • Available with a wide range of sensor options or sensorless

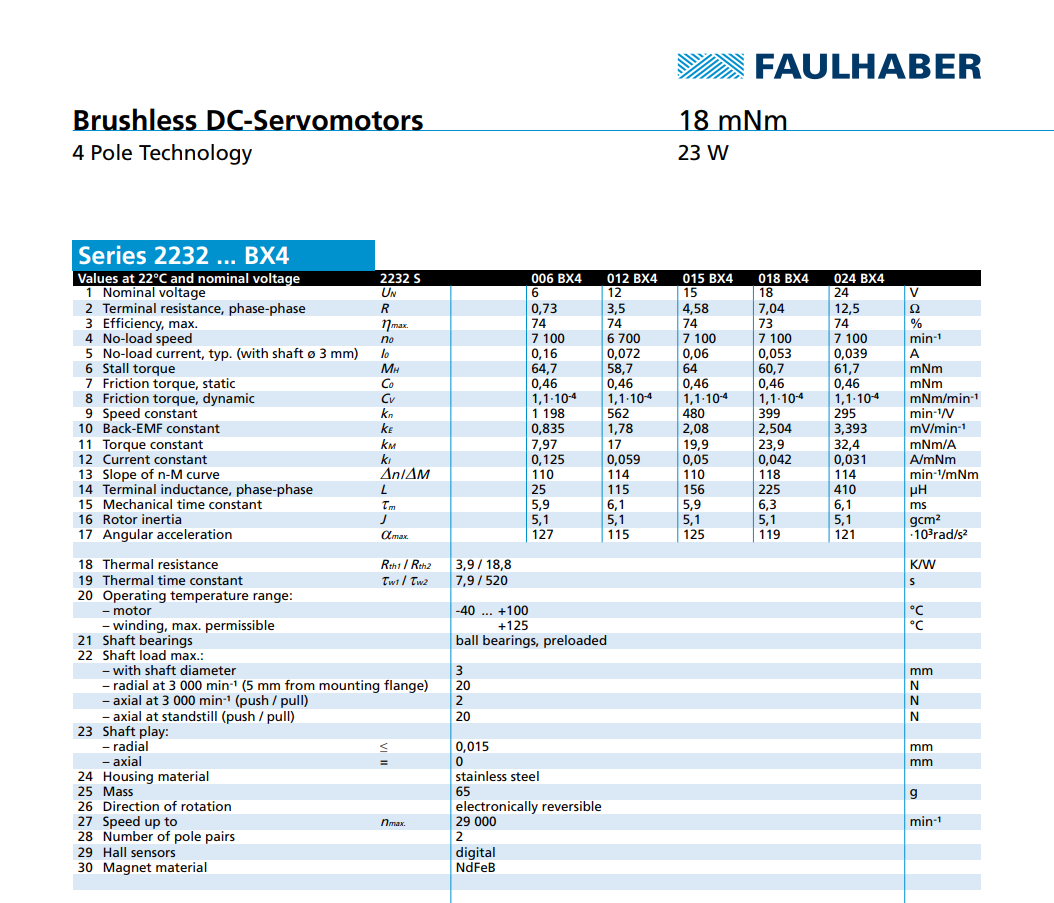

2232 BX4S Specifications:

  • Diameter (mm): 22

  • Length (mm): 33.8

  • Speed up to (rpm): 34,000

  • Stall torque (mNm): 29.4

2232 BX4S AES Specifications:

  • Diameter (mm): 22

  • Length (mm): 49.6

  • Speed up to (rpm): 40,000

  • Stall torque (mNm): 29.4

  • Technology: Absolute Encoder

2232 BX4S IE3 Specifications:

  • Diameter (mm): 22

  • Length (mm): 49.6

  • Speed up to (rpm): 40,000

  • Stall torque (mNm): 29.4

  • Technology: Encoder

2232 BX4S IE3L Specifications:

  • Diameter (mm): 22

  • Length (mm): 49.6

  • Speed up to (rpm): 40,000

  • Stall torque (mNm): 29.4

  • Technology: Encoder, Line Driver


Series: 2232 BX4S, 2232 BX4S AES, 2232 BX4S IE3, 2232 BX4S IE3L

Model No.: 2232S012BX4S, 2232S024BX4S
