Faulhaber: Brushless DC-Servomotors Series 1935...BRC
Motors with integrated Speed controller (Diameter: 19 mm, Length: 35 mm)
Brushless DC-Motors
The efficient motor series with continuously smooth-running impresses with an extraordinarily long service life. In optimized continuous operation, the motors of the BRC family convince with their high-performance bearings and cogging-free running in the linear speed and torque range. The brushless motors with integrated speed controller operate with precise speed control. This allows the operating point and the operating behavior to be precisely controlled by means of corresponding software. Measuring 15 to 31 mm in diameter, these motors are suitable for installation in extremely confined spaces and – thanks to their robust design – also for applications with high loads. The motors can be operated reversibly in a clockwise or anti-clockwise direction, depending on the required control mode. The frequency output of these motors enables precise reproduction and determination of the speed of the motor.
Motors with integrated Speed Controller
These new brushless DC motors combine the advantages of a slotless brushless motor with dedicated, high precision, speed control electronics.

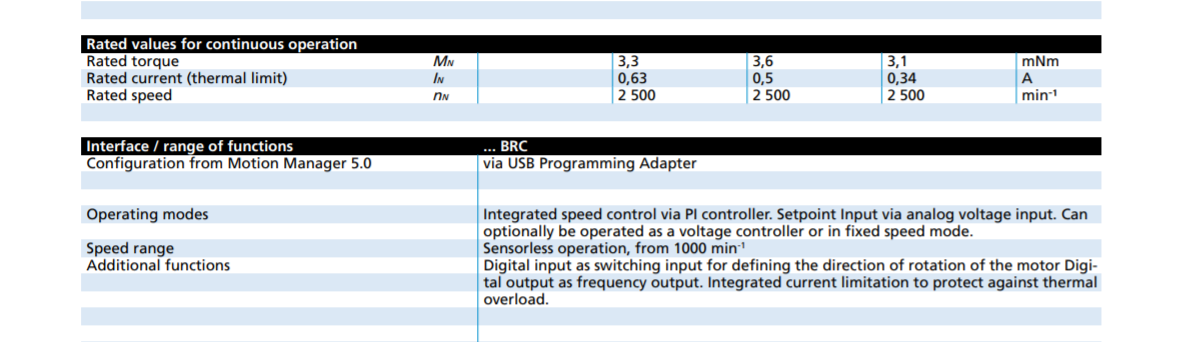

Speed control is achieved using the on board PI controller with an external command voltage.Brushless DC-Servomotors 1935...BRC Series with integrated Speed Controller

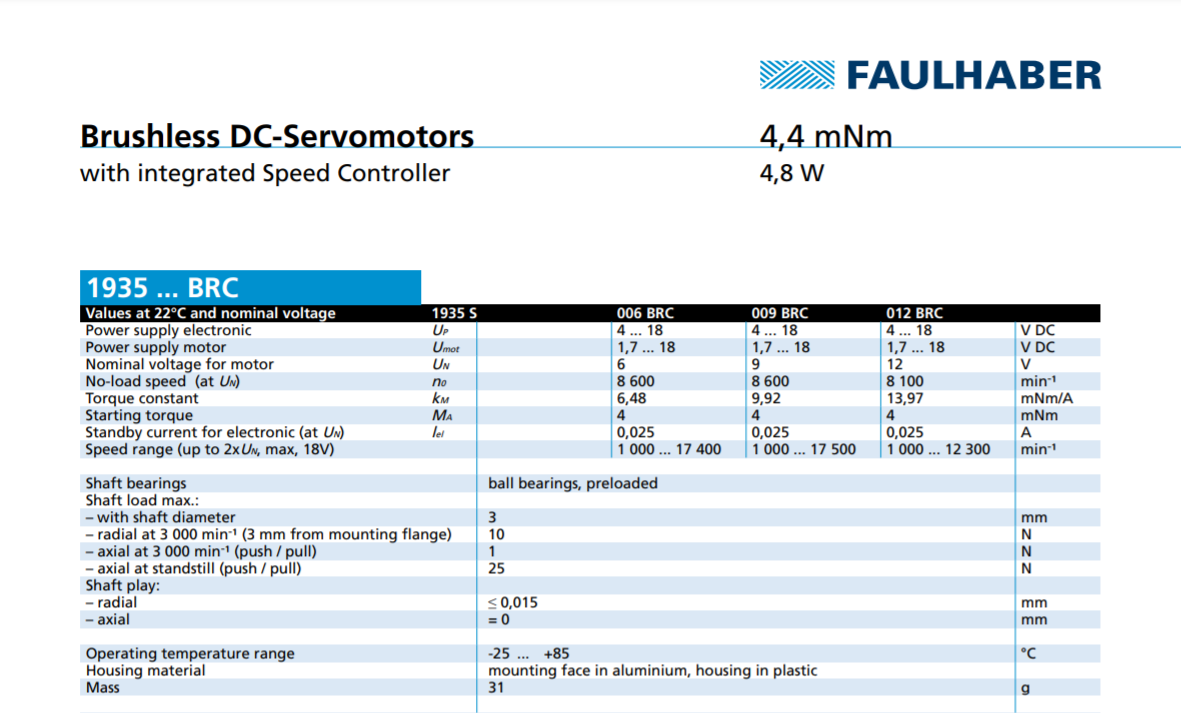

Nominal voltage:
6 ... 12 V
Torque up to (max.):
3,6 mNm
No-load speed:
8.600 min⁻¹

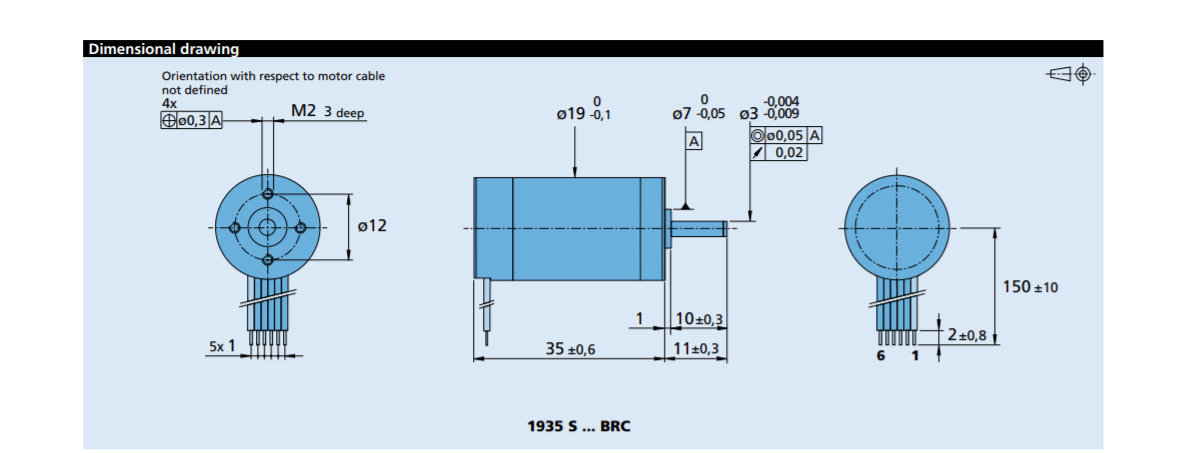

Diameter:
19 mm
Length:
35 mm
Features and Benefits:
Integrated drive electronics
Extremely compact
Very robust construction
Easy to use
Integrated current limiting
Control parameters can be tuned to the application
Model No.: 1935S006BRC, 1935S009BRC, 1935S012BRC
