AMC: DigiFlex® Performance™ CANopen Drive Mounting Card MC1XDZC03

The MC1XDZC03 mounting card is designed to host a DZC or DZXC series DigiFlex® Performance™ digital servo drive. The drive plugs into the bottom side of the mounting card, providing a compact assembly with connectors and switches readily accessible. The MC1XDZC03 is ideal for prototyping and integrating a DZC or DZXC series digital servo drive in your machine. The MC1XDZC03 utilizes side-entry right angle fixed screw terminals for the Motor and Power connectors. For vertical-entry quick-disconnect Motor and Power connections use the MC1XDZC03-QD mounting card.

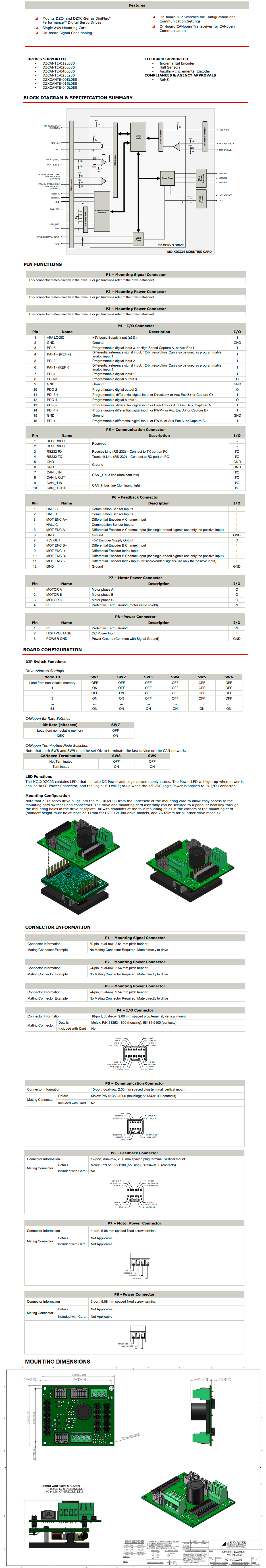

Specifications:

The MC1XDZC03 mounting card is designed to hold a DZCANTE or DZXCANTE DigiFlex® Performance™ family pcb mount servo drive to simplify connection to the controller, motor, and feedback.
Downloads:
Datasheet_MC1XDZC03.pdf

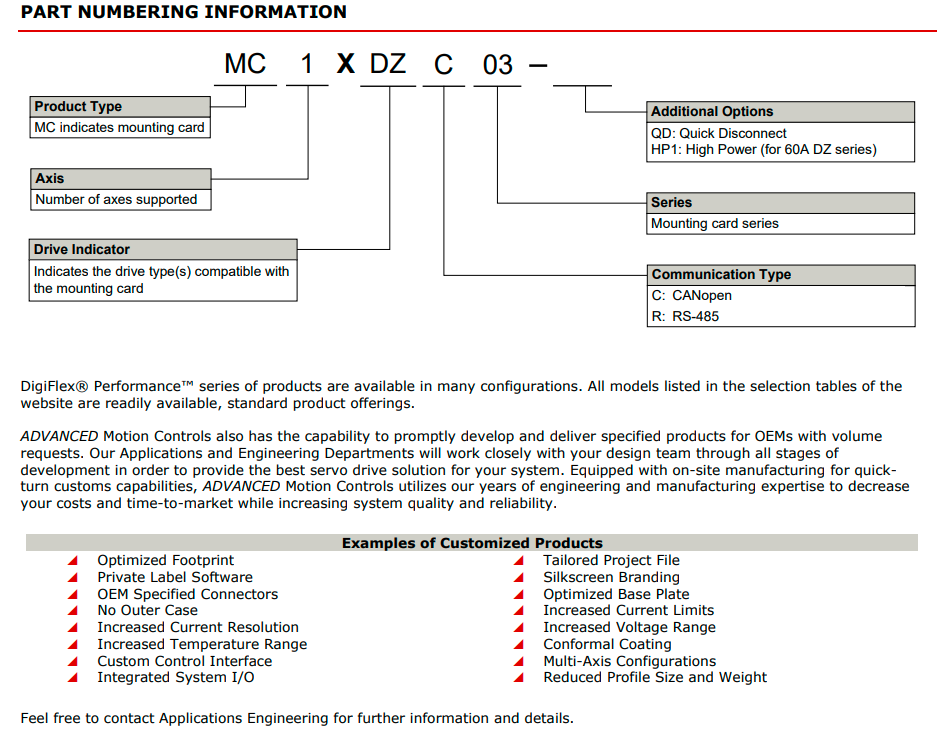

Product-Identification.pdf
