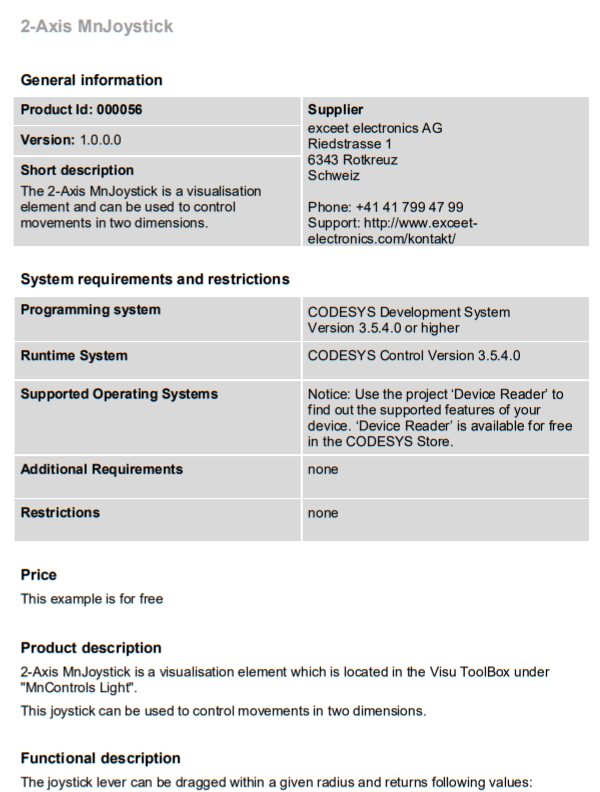

CODESYS 2-Axis MnJoystick - Article no. 000056

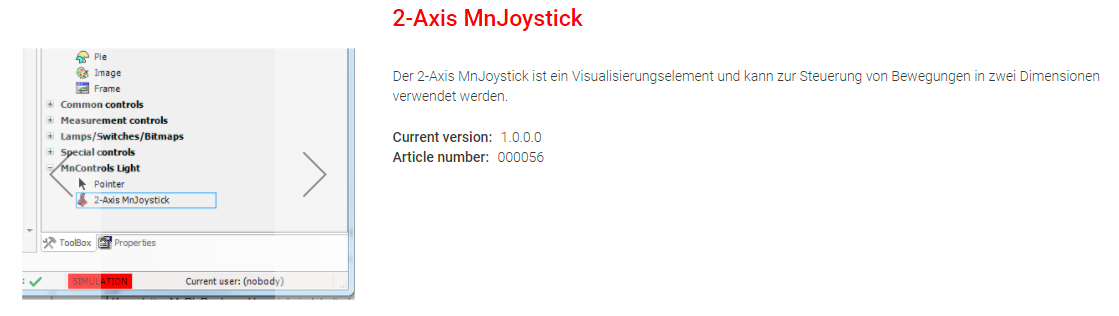

2-Axis MnJoystick is a visualisation element which is located in the Visu ToolBox under “MnControls Light”.

This joystick can be used to control movements in two dimensions.

Functional description

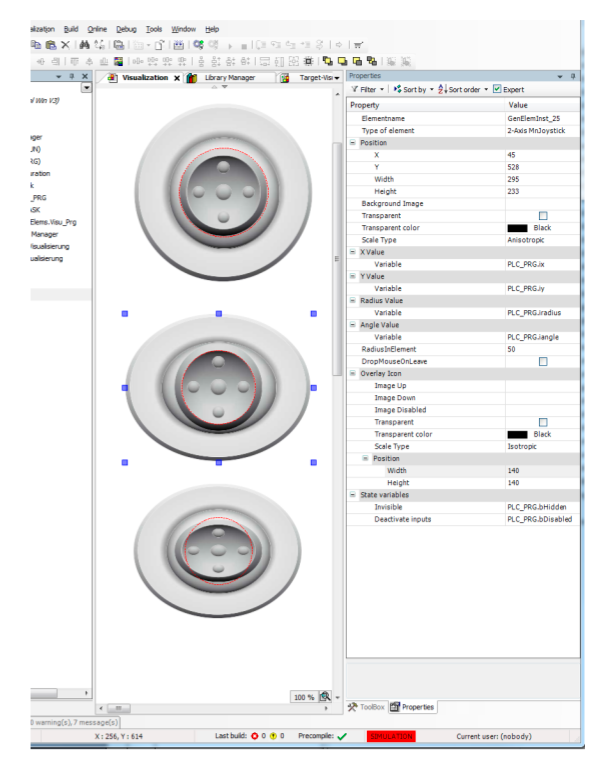

The joystick lever can be dragged within a given radius and returns following values:

X Value -> Deviation in the X direction from the center (-100 to 100, rest position = 0)

Y Value -> Deviation in the Y direction from the center (-100 to 100, rest position = 0)

Angle Value -> Angle to center ( 0 - 360 degree)

Radius Value -> Deviation from center (0 - 100)
