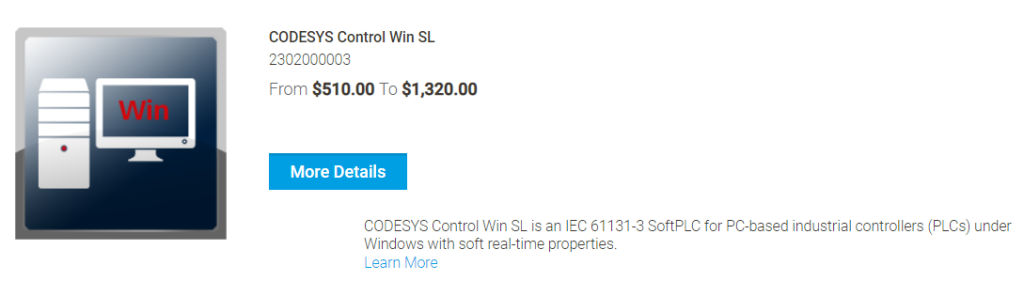

CODESYS Control Win SL Article no. 2302000003
The CODESYS
Control Win SL turns an industrial PC into a universally usable
high-performance PLC - almost arbitrarily scalable via the PC performance. The
system is suitable for applications without tough requirements on real-time
behavior and is equipped with the add-on CODESYS KNX SL is also used in
buildings.
The runtime
system supports numerous I/O interfaces such as discrete input/output or
fieldbus cards as well as integrated IEC 61131-3 protocol stacks. The
fieldbuses are configured directly in the CODESYS Development System - without
the use of additional tools.
Benefits
Communication
with the CODESYS Development System
Loading,
management and execution of the application code compiled by CODESYS in binary
format
Debugging of
the application within CODESYS
Handling of
the I/O systems and fieldbuses
Execution of

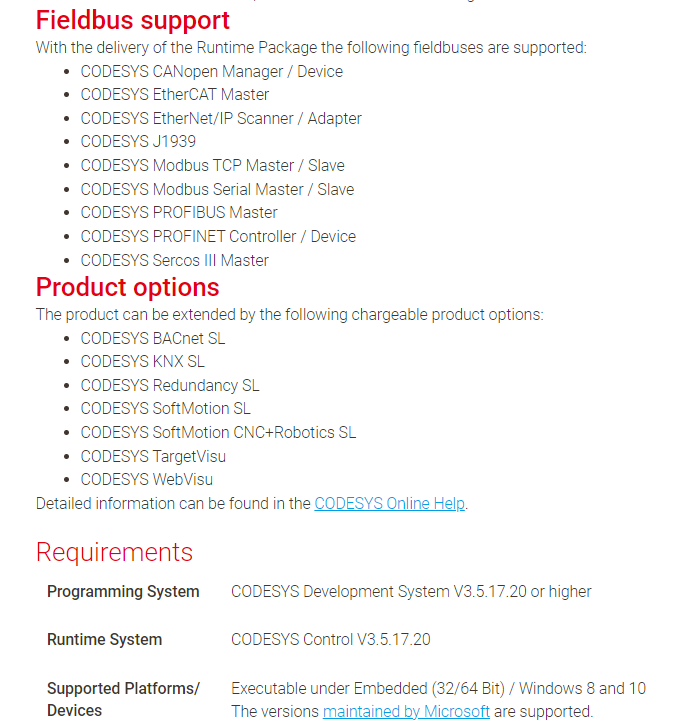

optional components (see section “Product options”)
Support of
remanent data: hard disk, flash card, battery buffered SRAM card
Interfaces
CODESYS OPC
UA Server, as full version for data exchange.
