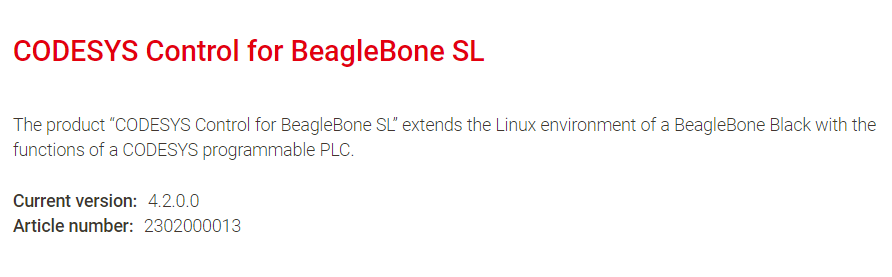

CODESYS Control for BeagleBone SL Article no. 2302000013
The CODESYS
runtime environment contained in the product is specially adapted to the
Beaglebone Black, the community supported hardware. With a CODESYS single
device license (SL), users can permanently realize a PLC device and use
functions of the freely available development environment CODESYS Development
System to configure it in IEC 61131-3.
Benefits
The software
package contains an extension for the CODESYS programming environment, with
which an update mechanism is integrated in order to install the runtime
environment on the BeagleBone Black without LINUX knowledge. The installation
of the CODESYS Runtime component on the BeagleBone Black takes place in the
form of a Debian package, directly from the CODESYS Development System. The
supplied examples supplement the software package with useful applications that
facilitate the first steps in the application.
With the
integrated CODESYS “Wink” mechanism, the hardware can be clearly assigned to an
existing gateway connection by flashing the LED.
Detailed
information can be found in the CODESYS Online Help.
Interfaces
CODESYS OPC
UA Server, as full version for data exchange.
GPIOs and
analog inputs, supported as local interfaces.
Visualization
CODESYS
WebVisu, is included as full version in the delivery of the runtime package.
Fieldbus
support
With the
delivery of the Runtime Package the following fieldbuses are supported:
CODESYS
CANopen Manager / Device
CODESYS
EtherCAT Master
CODESYS
EtherNet/IP Scanner / Adapter
CODESYS
J1939
CODESYS
Modbus TCP Master / Slave
CODESYS
Modbus Serial Master / Slave
CODESYS
PROFINET Controller / Device
Product
options
Further
products can be licensed for a fee:
CODESYS
BACnet SL
CODESYS KNX
SL
CODESYS
Redundancy SL
CODESYS
SoftMotion SL
CODESYS
SoftMotion CNC+Robotics SL
