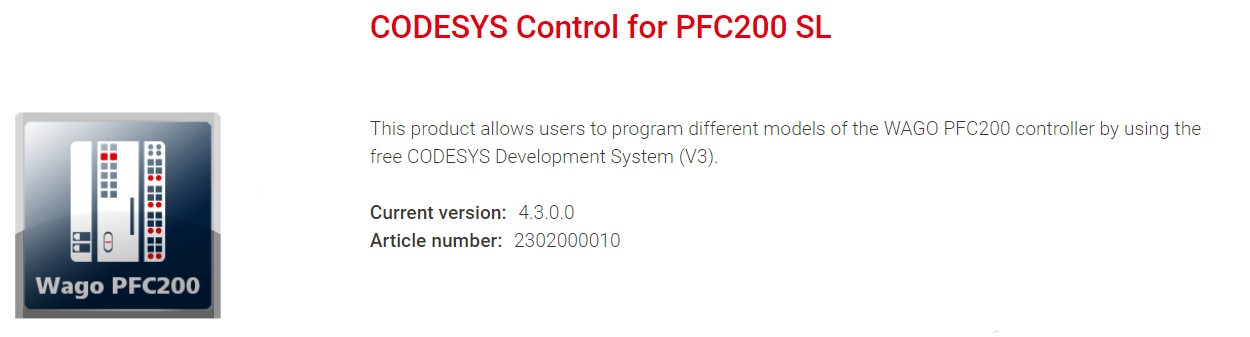

CODESYS Control for PFC200 SL Article no. 2302000010
CODESYS Control for PFC200 SL is a SoftPLC-based on CODESYS
V3 for the WAGO PFC200 industrial PLC. After installation of the runtime
environment, the PLC can be engineered with the CODESYS Development System
(V3).
Download of the product “CODESYS Control for PFC200 SL” from
the CODESYS Store (http://store.codesys.com)
Installation of CODESYS SoftPLC on a WAGO PFC200 device (http://www.wago.com)
Exchange of the WAGO PLC runtime environment (as delivered by
WAGO) for a standard CODESYS V3-compatible SoftPLC.
PLC configuration with WAGO software tools
Benefits
Suitable for PLCs in the sectors of factory and process
automation (with new defined PLC functional range)
Comprehensive engineering solution with the free CODESYS
Development System (V3), extensible by add-ons from the CODESYS Store
Efficient engineering with the products of the CODESYS
Professional Developer Edition (code management via link to Apache Subversion,
static code analysis, runtime measurement on the PLC, CODESYS Test Manager for
test automation, methodical application development with UML diagrams)
Same performance and cycle times of the fieldbus tasks as for
the OEM product, for example when using local I/O modules
Detailed information can be found in the CODESYS Online Help.
Interfaces
CODESYS OPC UA Server, as full version for data exchange.
Support of all popular digital and analog input and output
modules from WAGO (download list from CODESYS Store)
Visualization
CODESYS WebVisu, is included as full version in the delivery
of the runtime package.
Fieldbus support
With the delivery of the Runtime Package the following
fieldbuses are supported:
CODESYS CANopen Manager / Device (except 750-8202 / -8212)
CODESYS EtherCAT Master
CODESYS EtherNet/IP Scanner / Adapter
CODESYS J1939
CODESYS Modbus TCP Master / Slave
CODESYS Modbus Serial Master / Slave (only 750-8202 / -8212)
CODESYS PROFINET Controller / Device
Product options
Further products can be licensed for a fee:
CODESYS KNX SL
CODESYS Redundancy SL
