CODESYS Control for emPC-A/iMX6 SL Article no. 2302000014

CODESYS Control for emPC-A/iMX6 SL is a runtime environment based on CODESYS V3 for implementing a PLC with the Linux-based, real-time capable industrial controller emPC-A/iMX6 from Janz Tec AG. After installation the product, the PLC can be engineered with the CODESYS Development System (V3) from 3S-Smart Software Solutions GmbH.

Purchase of the applicable hardware from the company Janz Tec AG (http://www.janztec.com).

Download of the product CODESYS Control for emPC-A/iMX6 SL from the CODESYS Store (http://store.codesys.com).

Installation of the CODESYS PLC runtime environment on the hardware

Benefits

Suitable for controllers in all industries and sectors

Comprehensive engineering solution with the free CODESYS Development System (V3), including extensive visualization options

Efficient engineering with the products of the CODESYS Professional Developer Edition (code management via link to Apache Subversion, static code analysis, runtime measurement on the PLC, comprehensive test automation, methodical application development with UML diagrams)

Compatible with additional add-on and products from the CODESYS Store

Detailed information can be found in the CODESYS Online Help.

Interfaces

CODESYS OPC UA Server, as full version for data exchange.

Visualization

CODESYS WebVisu, is included as full version in the delivery of the runtime package.

Fieldbus support

CODESYS CANopen Manager / Device

CODESYS EtherCAT Master

CODESYS EtherNet/IP Scanner / Adapter

CODESYS J1939

CODESYS Modbus TCP Master / Slave

CODESYS Modbus Serial Master / Slave

CODESYS PROFINET Controller / Device

Product options

Further products can be licensed for a fee:

CODESYS BACnet SL

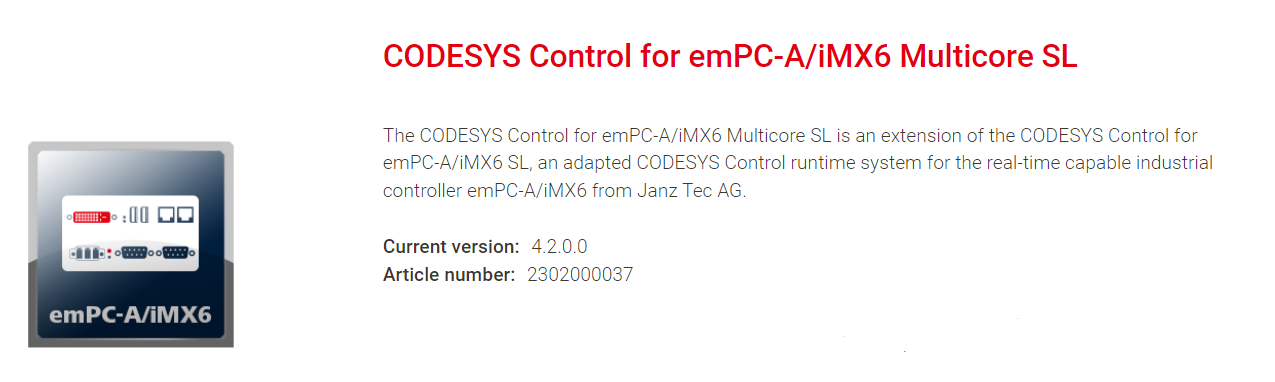

CODESYS Control for emPC-A/iMX6 MC SL

CODESYS KNX SL

CODESYS Redundancy SL

CODESYS SoftMotion SL

CODESYS SoftMotion CNC+Robotics SL

CODESYS TargetVisu SL
