CODESYS Depictor Article no. 2101000008
The CODESYS Depictor allows creating and displaying 3D models and linking their geometrical relations (i.e. axis angles) to CODESYS applications. It is possible to display and animate machine parts (e.g. robots) or entire production lines in CODESYS.

(A demo license is available for testing, with a maximum of 10 poses.)

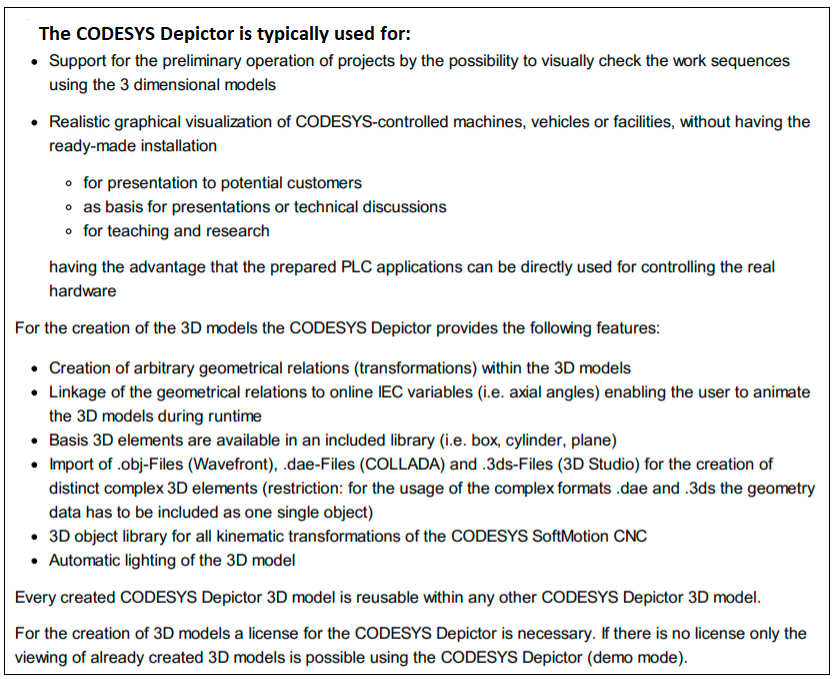

The CODESYS Depictor is used for the flexible creation, illustration and animation of 3D models. For the creation of the 3D models, poses (geometrical relations / transformations) and elements (3D geometries) can be placed in a tree structure indicating the relation to each other. The pose properties (e.g. rotation angle) can be linked to CODESYS application variables, so that the whole 3D model can be animated.
