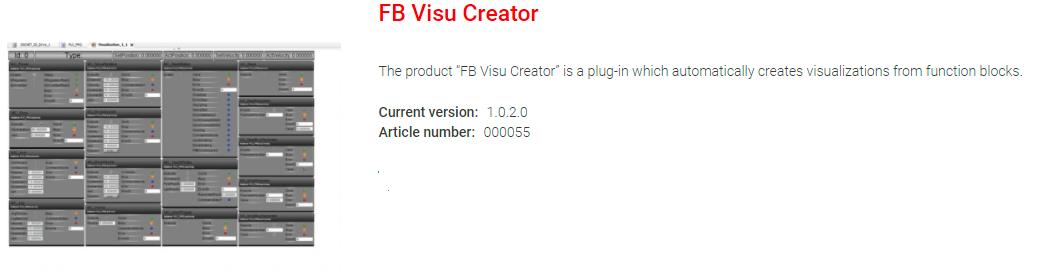

FB Visu Creator

The product “FB Visu Creator” is a plug-in which automatically creates visualizations from function blocks. Product description

Licensing:

No license is required.

The ‘FB Visu Creator’ plug-in automatically creates visualizations from function blocks. All desired function blocks and the input and output fields can be marked with attributes. The tool generates visualizations for the marked function blocks. Afterwards the visualization can be linked with an instance of the function block by a frame reference.

The generation of the visualization is controlled by attributes. There are attributes for functions blocks and attributes for input and output fields.
