CODESYS PROFINET Device SL Article no. 2303000021
Data
Sheet CODESYS PROFINET Device SL
The CODESYS
PROFINET Device enables a CODESYS PLC to act as a PROFINET Device that is
programmable with the CODESYS Development System.
Product
description
PROFINET
(Process Field Network) is an open standard for realtime industrial Ethernet
systems in automation technology. It is promoted by the user organization PI
(PROFIBUS & PROFINET International as an umbrella group of the PROFIBUS
user organization PNO) and is regarded as the successor of PROFIBUS. PROFINET
uses UDP/IP and IEEE 802.3 (Standard Ethernet) for acyclic services and/or I/O
communication
The fully
integrated CODESYS PROFINET Device Solution provides a uniform configurator for
different variants of underlying PROFINET Device communication stacks:
CODESYS
PROFINET Device (IEC)
Protocol
stack in the form of a CODESYS library (in IEC 61131-3 code), operates on
standard network interface cards. The Ethernet adapter is not used exclusively,
it’s still available for all other applications using TCP/IP on this adapter
(e.g. CODESYS Visualization, Web Browser).

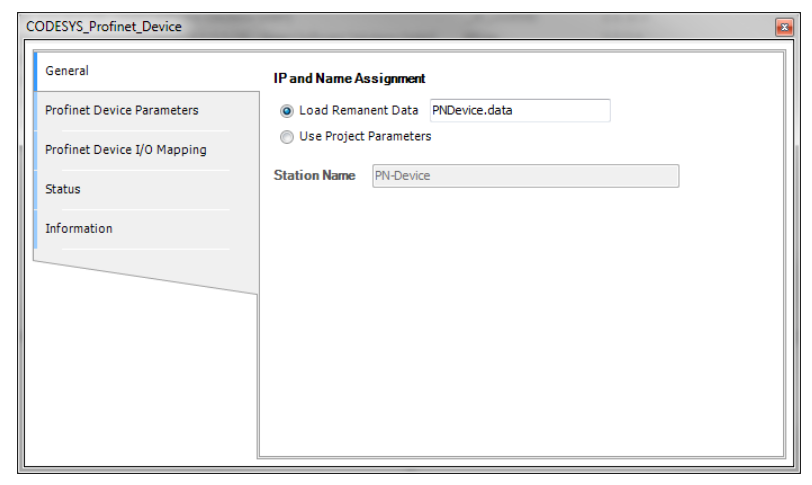

CODESYS
PROFINET Device Configurator
Configurator
for settings of PROFINET Device Sample GSDML file included in scope of delivery
Configuration of module’s in- and output-mapping Status page with detailed view
of currently pending diagnostics
