CODESYS TargetVisu SL Article no. 2304000002
If the
CODESYS TargetVisu component is implemented in the CODESYS Control runtime
environment of an automation device, the device can display graphical user
interfaces on the integrated or connected display and/or be operated via them.
The development of the user interfaces takes place together with the
development of the IEC 61131-3 application project directly in the CODESYS
Development System.
Two
licensing models are offered for the visualization extension of a controller:
CODESYS
TargetVisu (Full / Embedded / Light)
Performance-related
volume licensing for all the controllers of a device family by the controller
supplier; for the general visualization option for the end user.
CODESYS
TargetVisu SL (Full)
Hardware-based
single licensing (SL) by the end user, for a device with an interface to an
external display unit and full visualization preparation.
CODESYS
TargetVisu (Full)
Support for all
elements of the CODESYS Development System on a controller with a CODESYS
Control Runtime.
CODESYS
TargetVisu (Embedded)
Reduction of
the range of functions of the CODESYS TargetVisu (Full), for the support of
devices with no graphic library and low system resources.
CODESYS
TargetVisu (Light)
Hardware-dependent,
minimum range of graphic functions of a visualization option with minimum
memory requirement, for the support of the simplest devices. All options can be
combined with the product CODESYS WebVisu for the display of created masks on

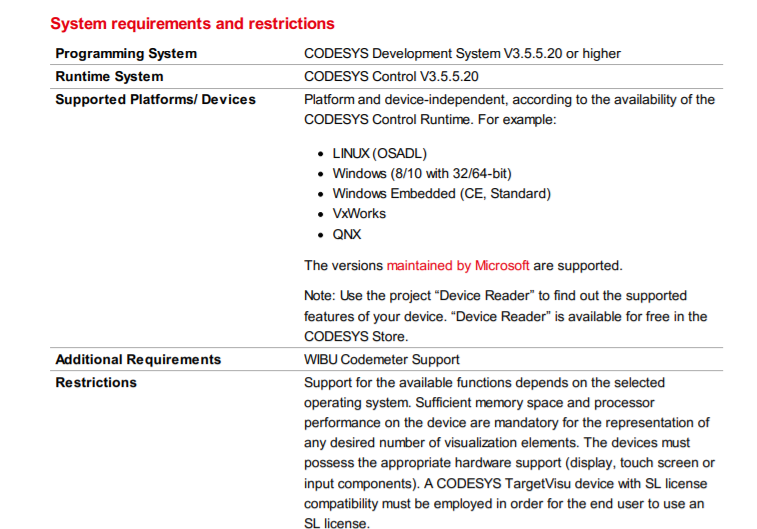

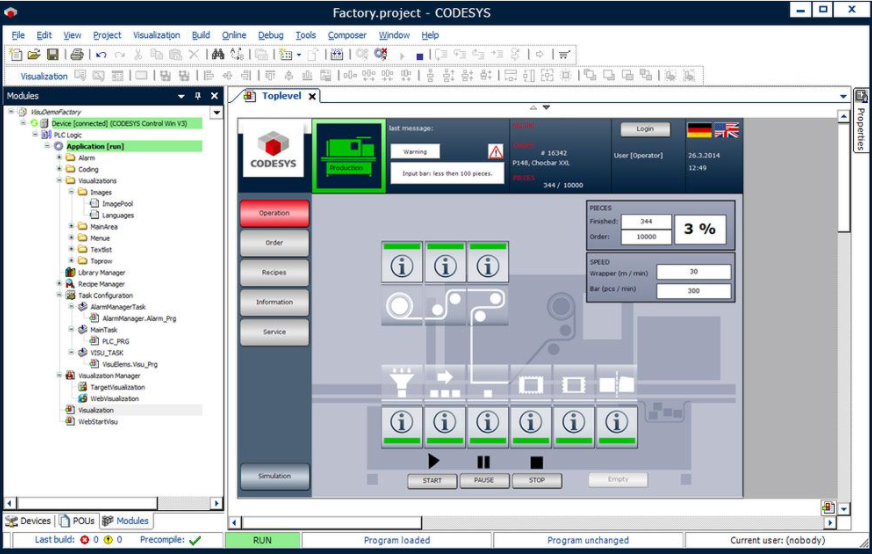

display devices with a web browser. The project engineering of the graphical
displays is done with the editor integrated in the CODESYS Development System.
Visualization
management via:
Specification
of the display on the target device (update rate, width and height in pixels)
Universal
modification of all masks via CODESYS Visualization styles
Management
of actions by assignment of hot keys or mouse events
Setting of
user groups for the graphic interface
