CYCLONE:800W Servo Motor (SEMA-08)
CYCLONE:800W Servo Motor (SEMA-08)


Price: (Members Only)


Availability: Usually Ships in 1 to 2 Business Days
Order #: SEMA-08


Brake Option:

Encoder:

Shaft:

Qty:
Description Specifications and Drawings


Specifications:

  • Brand: CYCLONE
  • Model: SEMA-08
  • Rated Speed: 3000rpm
  • Maximum Speed: 5000rpm
  • Rated Power: 800W
  • Rated Torque: 2.6 Nm
  • Peak Torque: 7.8 Nm
  • Rated Current: 4.8A
  • Peak Current: 14.4A
  • Encoder: Incremental 5000 lines


Catalog

Buying Guide

SEMA Specs.

SEMA Torque Curves

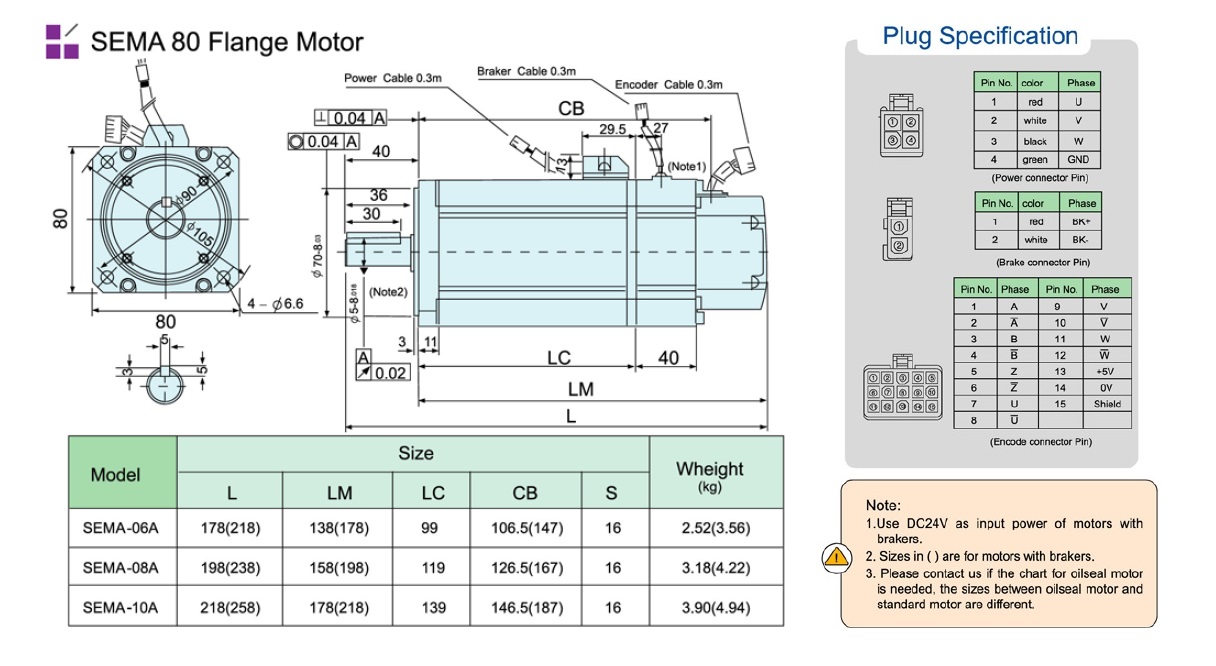

SEMA 80 CAD
