Classic Rod Linear Actuator CRLA-12-35-3
Classic Rod Linear Actuator

Alternate View



Price: (Members Only)


Availability: Usually Ships in 7 Business Days
Order #: CRLA


Options:


Qty:

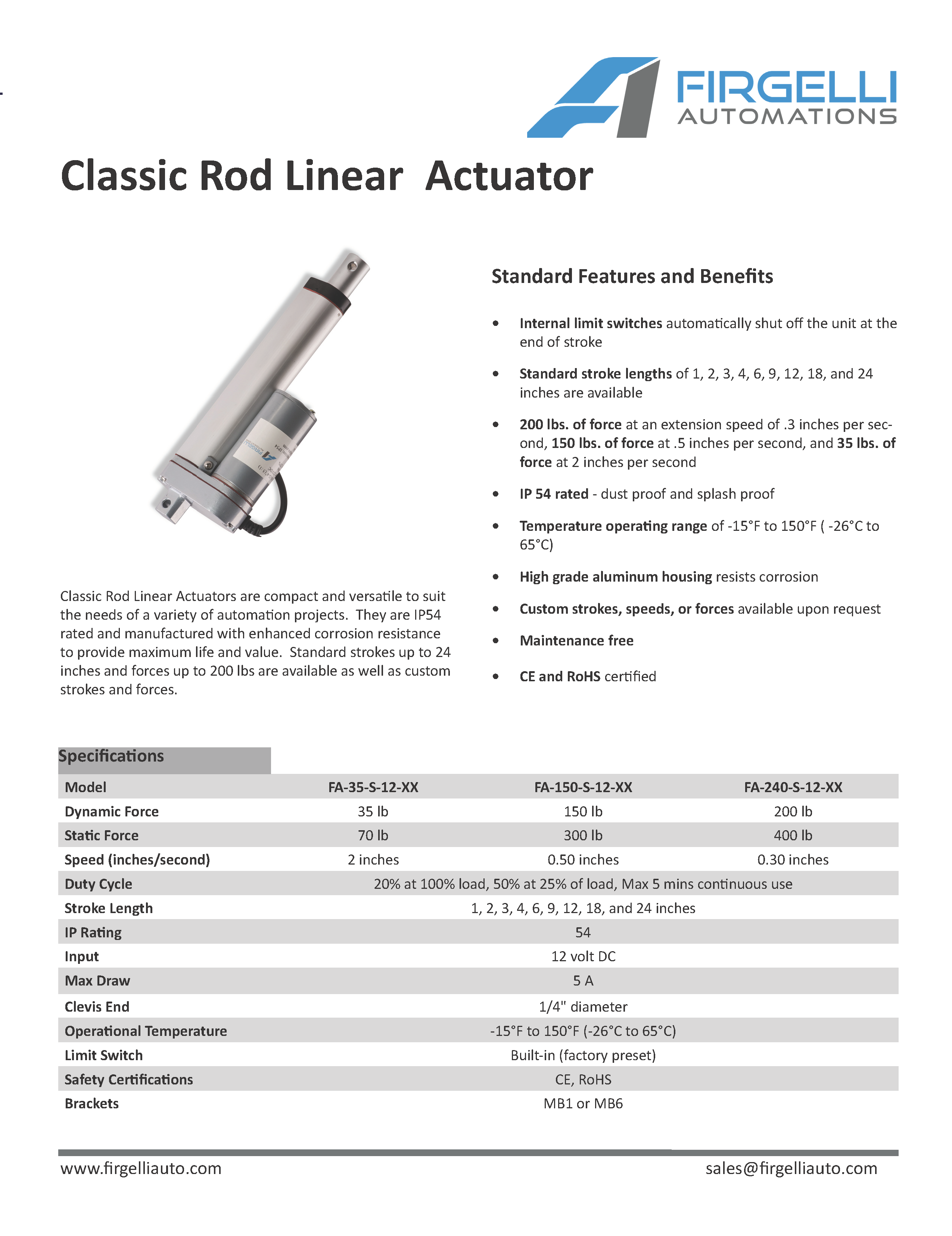

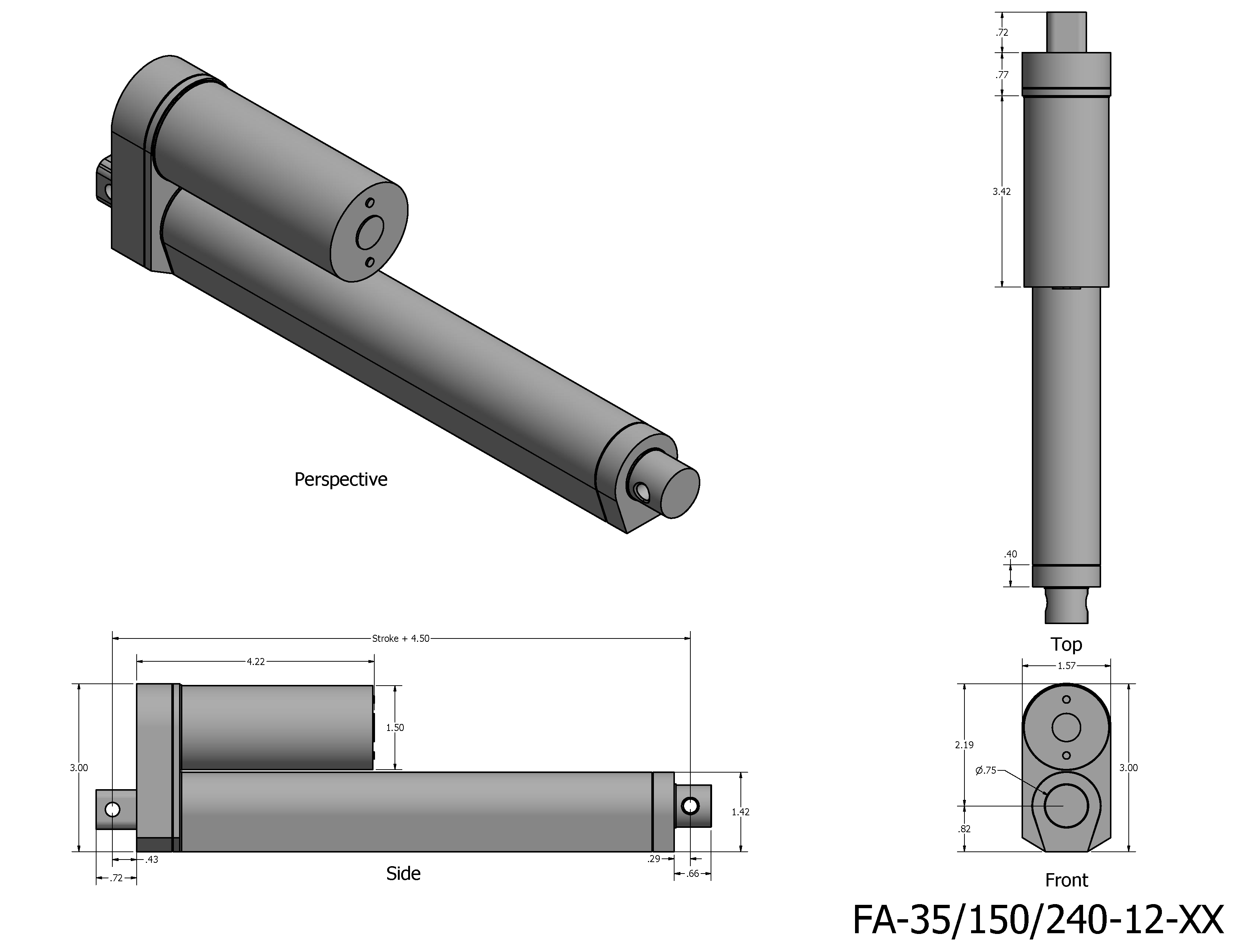

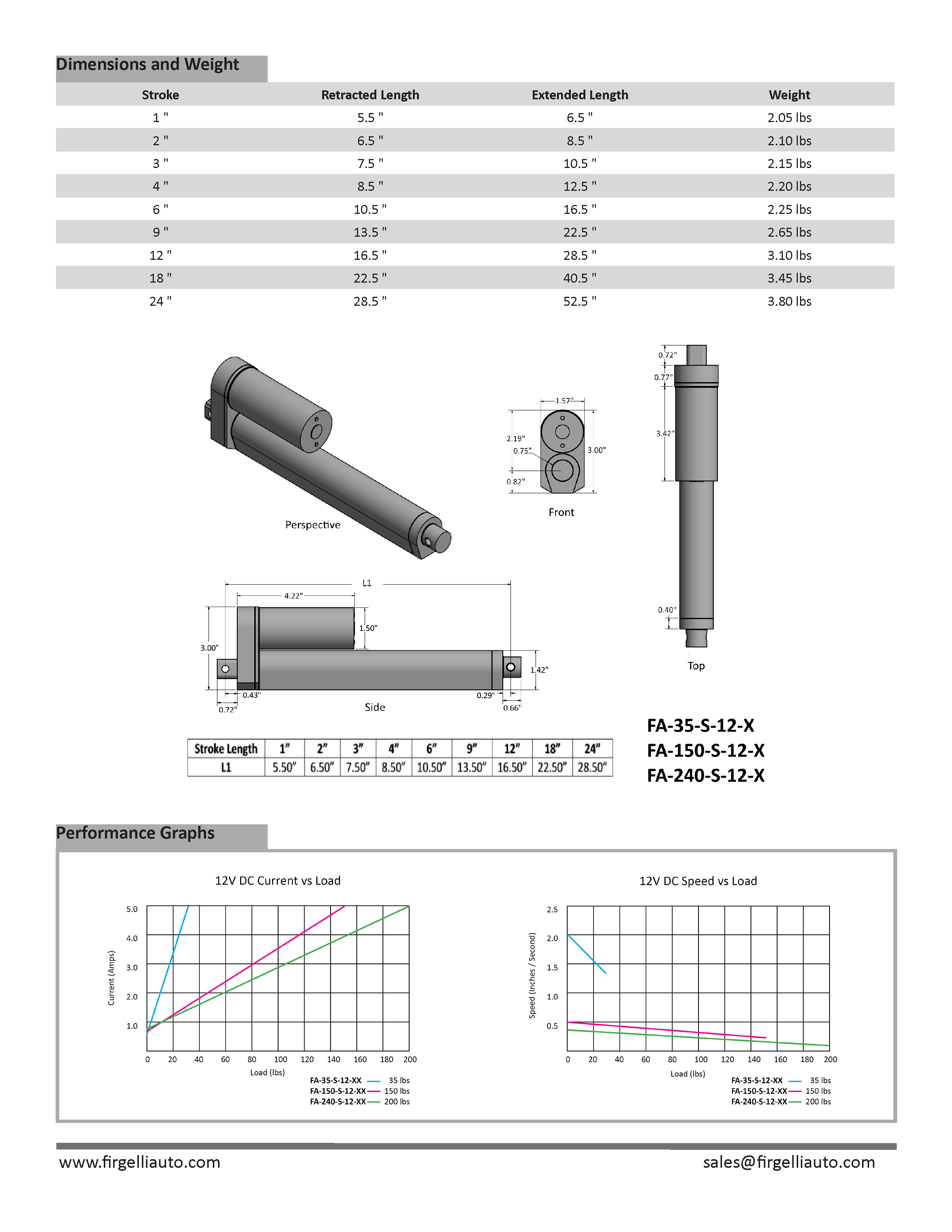

Description Specifications and Drawings


Firegelli: CLASSIC ROD LINEAR ACTUATORS CRLA-12-35-3

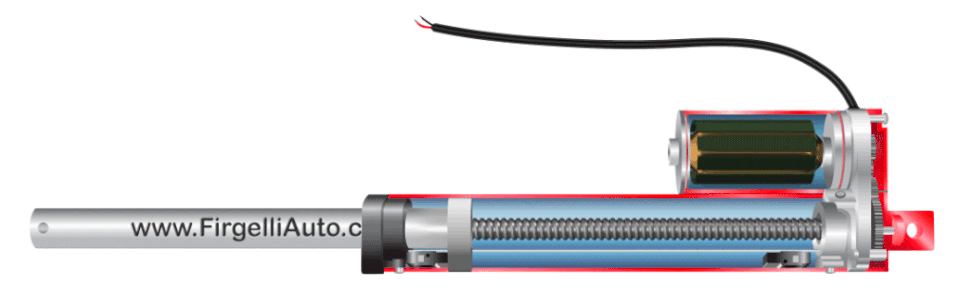

A linear actuator that creates motion in a straight line, in contrast to the circular motion of a conventional electric motor. Linear actuators are used in machine tools and industrial machinery, in computer peripherals such as disk drives and printers, in valves and dampers, and in many other places where linear motion is required. Hydraulic or pneumatic cylinders inherently produce linear motion.

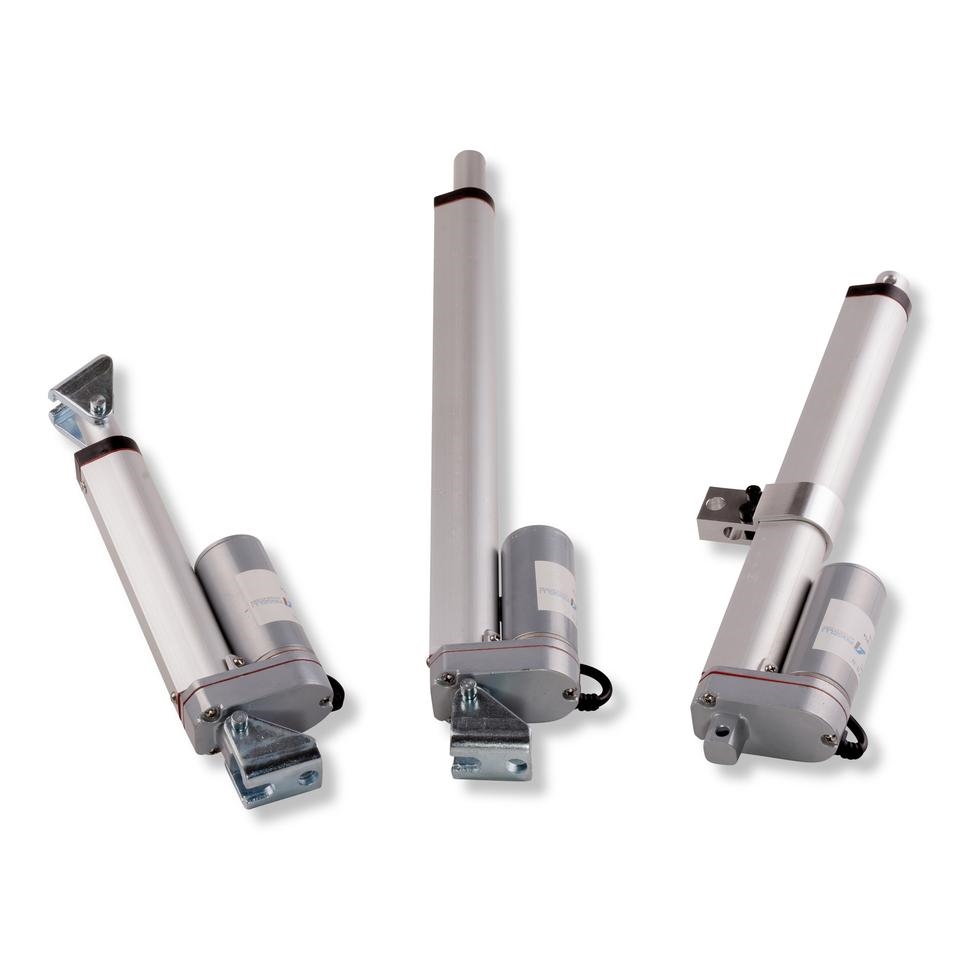

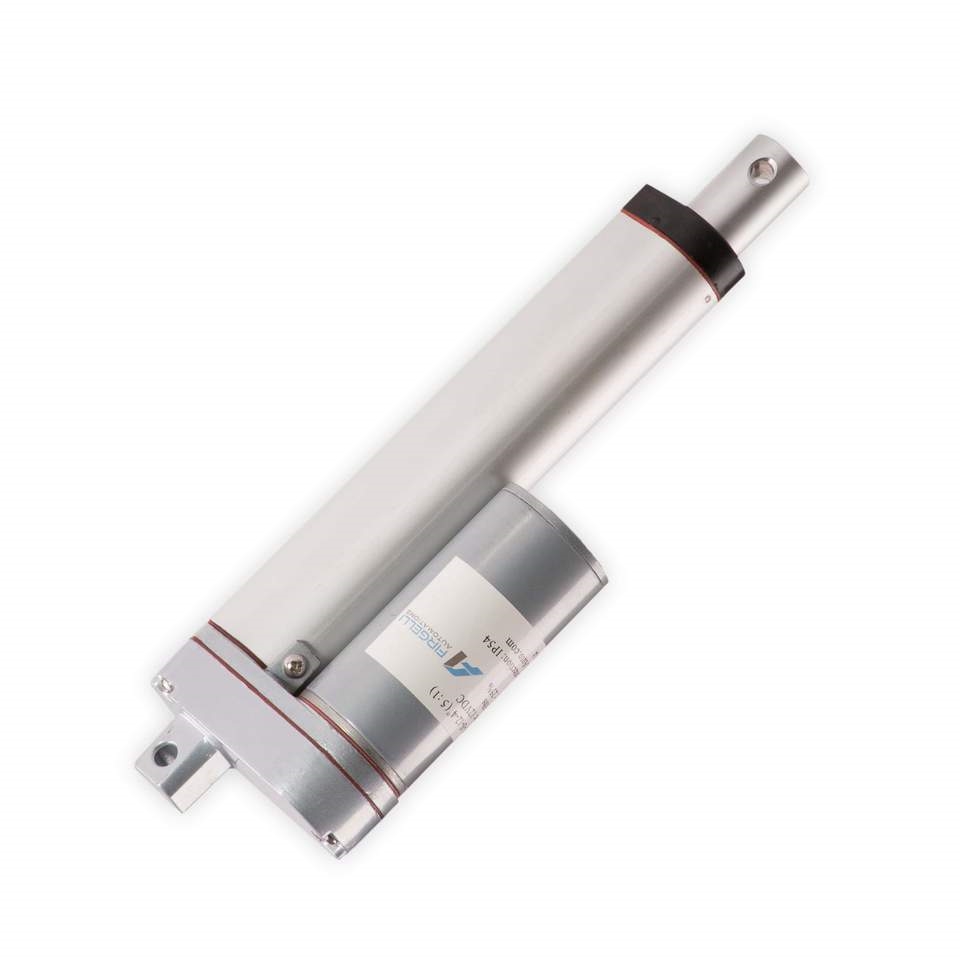

Compact and versatile, the Classic Rod Linear Actuator is available in various strokes with forces ranging from 35 – 200 lbs. Manufactured with high grade aluminum and built in limit switches this actuator provides consistent, reliable performance with zero maintenance for all your automation projects.

Standard Features and Benefits

· Internal limit switches automatically shut off the unit at the end of stroke - This protects you and your equipment from possible damage.

· Huge range of stoke options as standard: 1, 2, 3, 4, 6, 9, 12, 18 and 24 inches are available - Gives you more flexibility.

· Delivering multiple force options from 35 to 200 lbs - Giving you even more flexibility

· IP54 rated – dust and splash proof - Because it never hurts to have more protection than you actually need

· Maintenance free - Gives you more free time to do more important things

· CE and RoHS certified - for extra comfort knowing they are certified for safe use.

· Accessories sold separately include: Remote Controls, Switches, Micro-Controllers, and Power Supplies

Brackets

· Fits with MB1 Bracket

· Fits with MB6 Bracket
