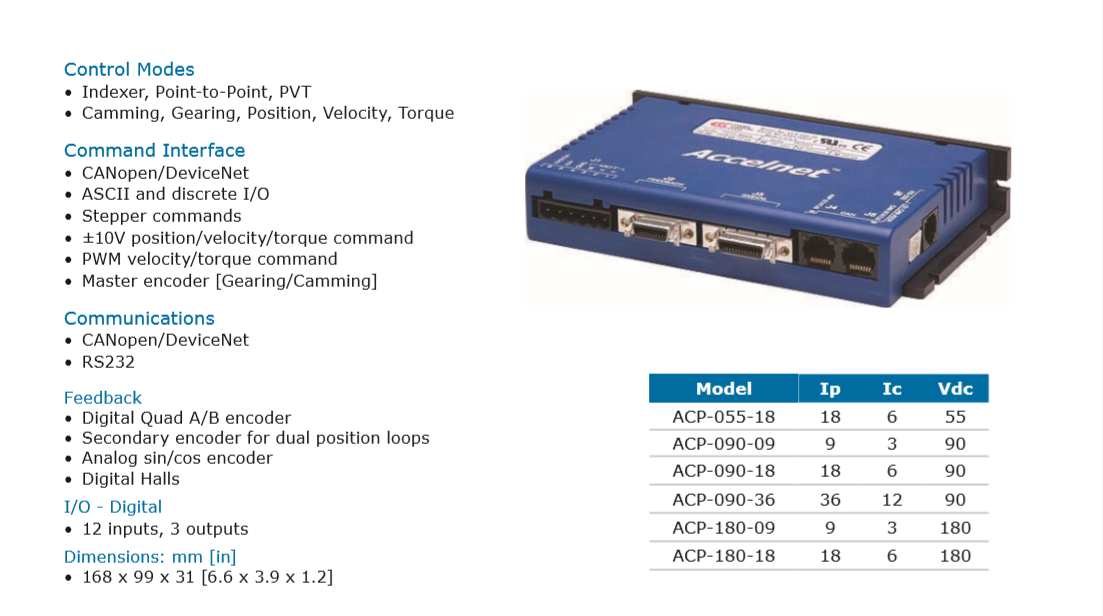

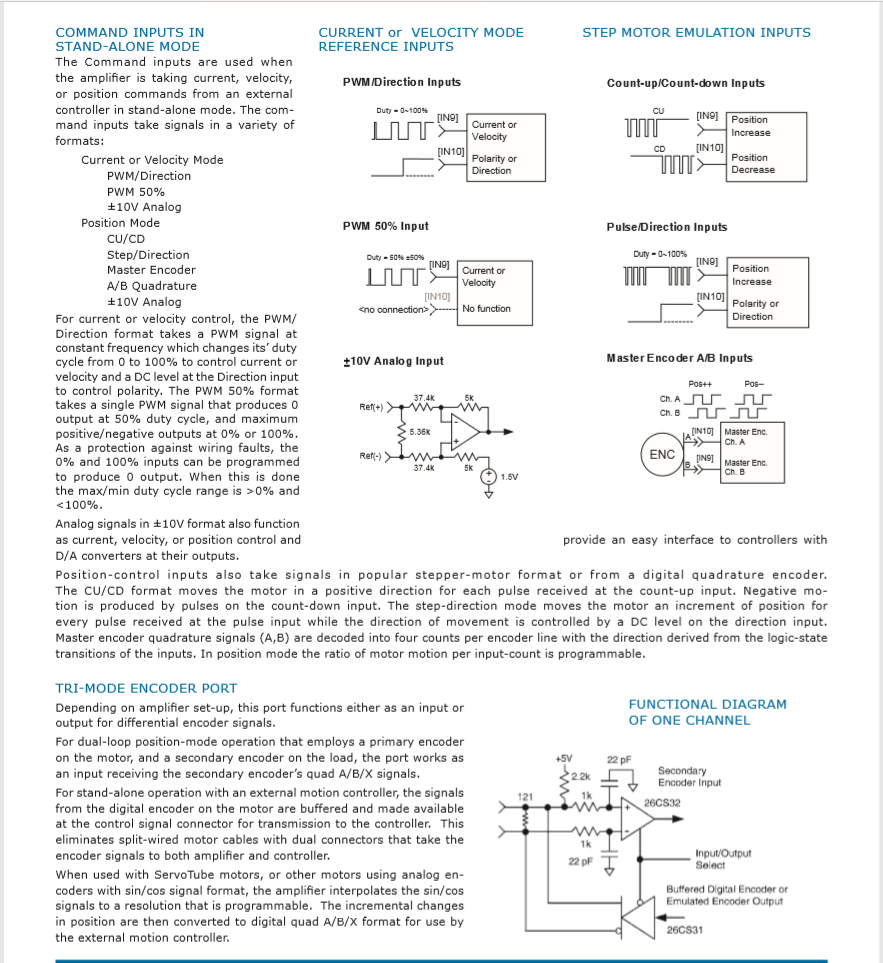

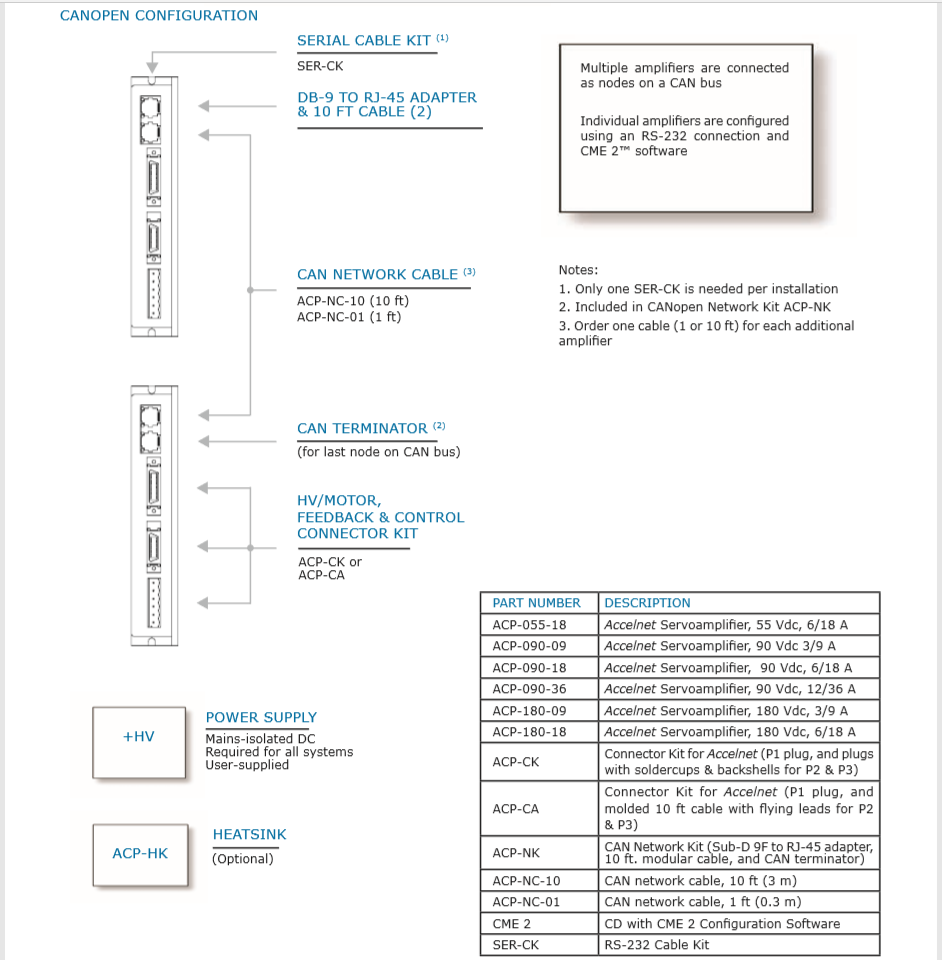

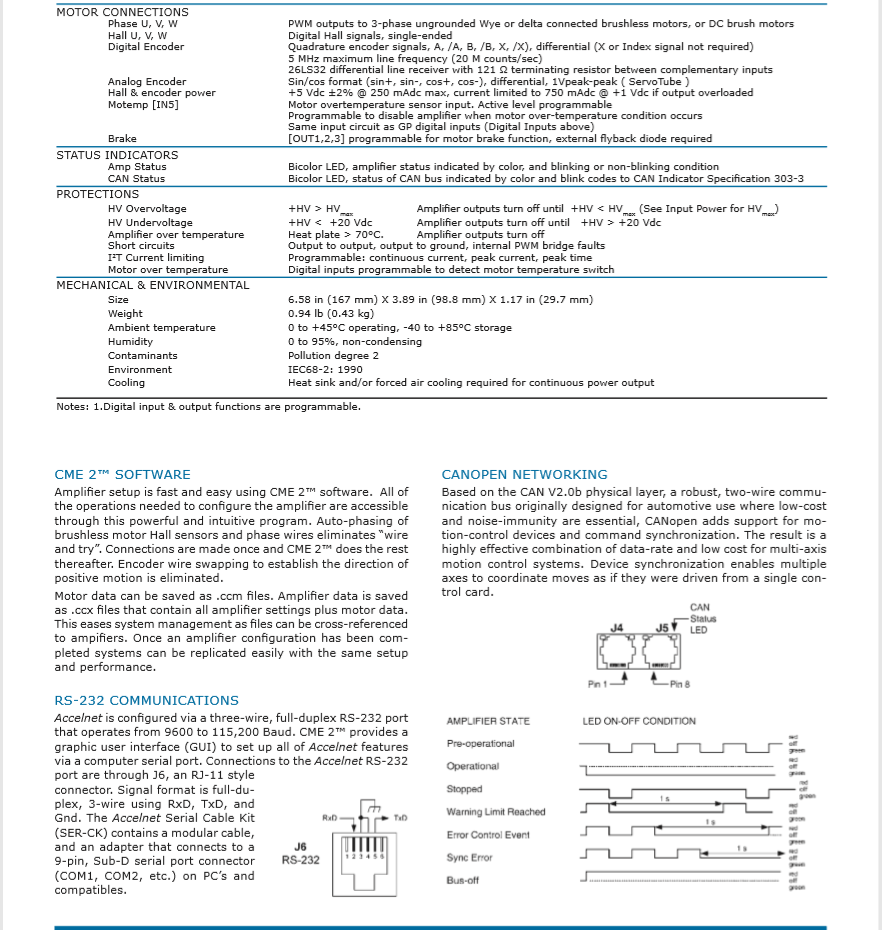

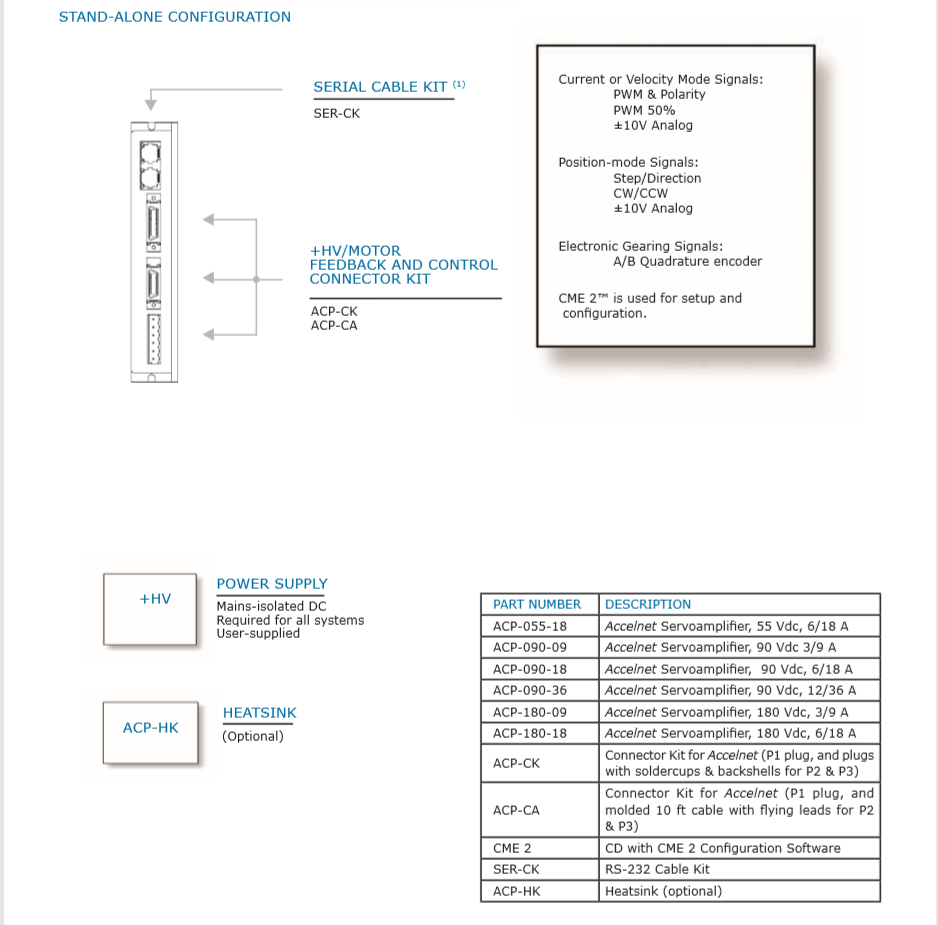

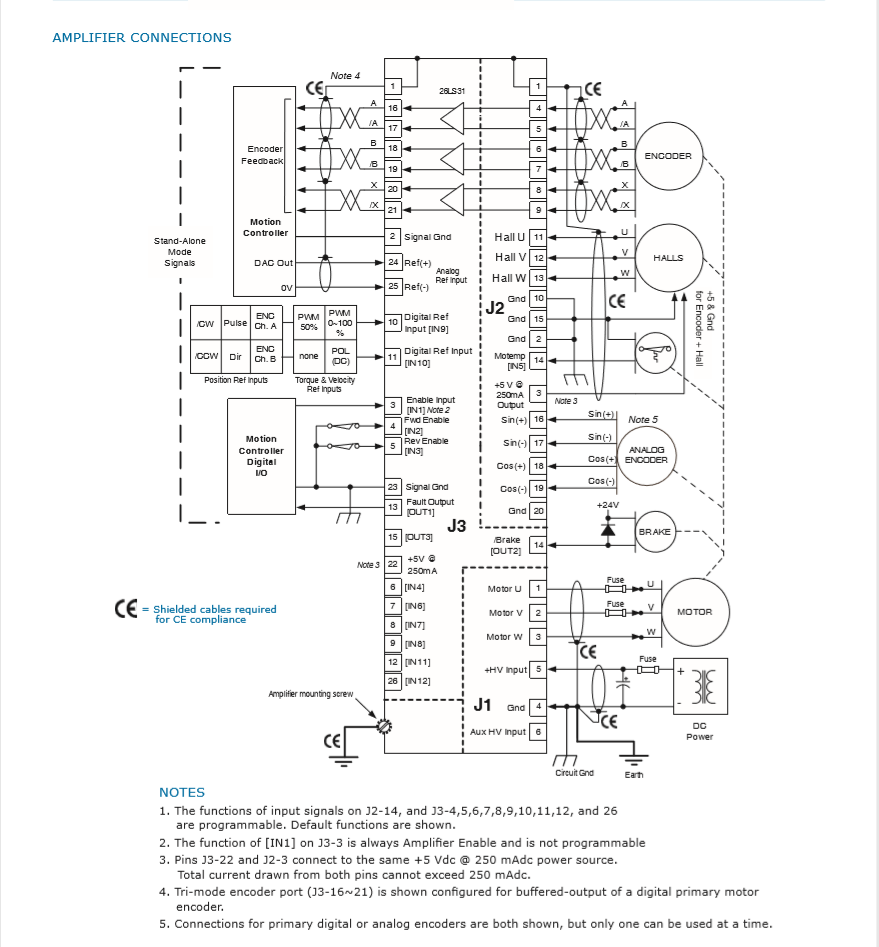

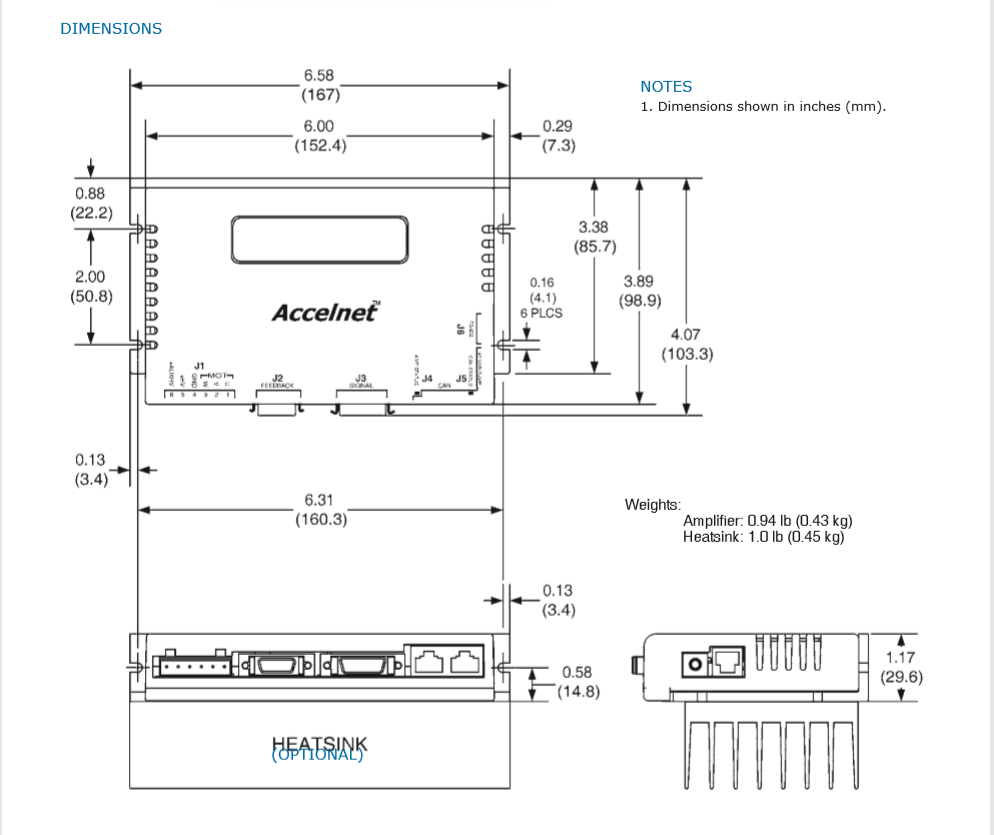

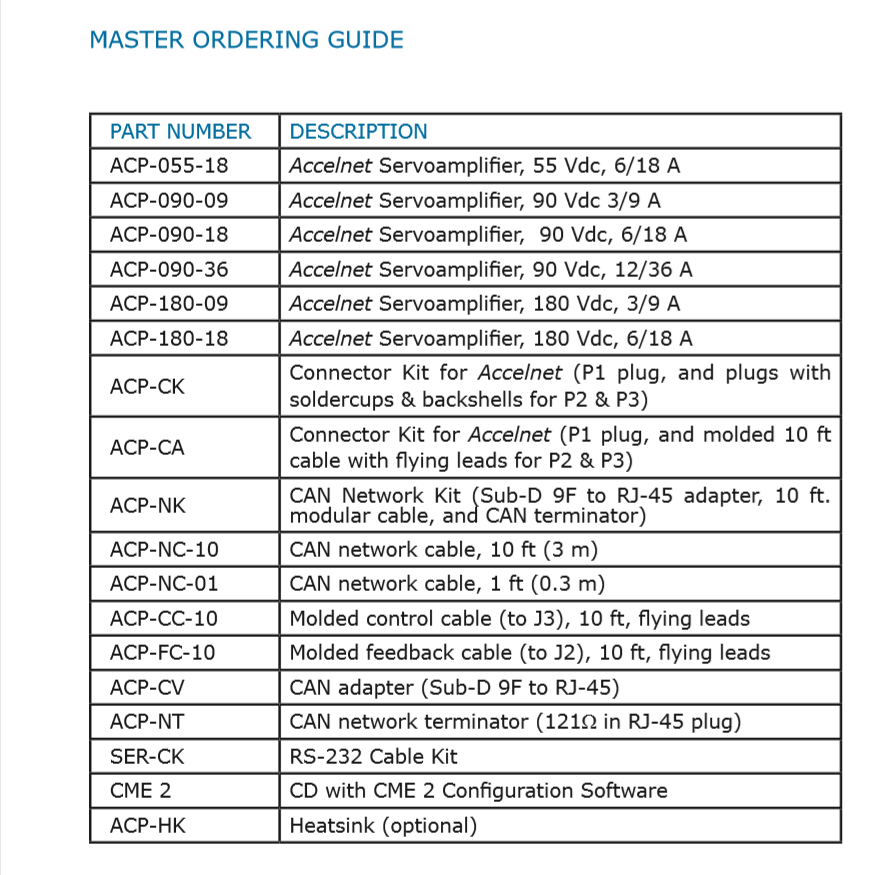

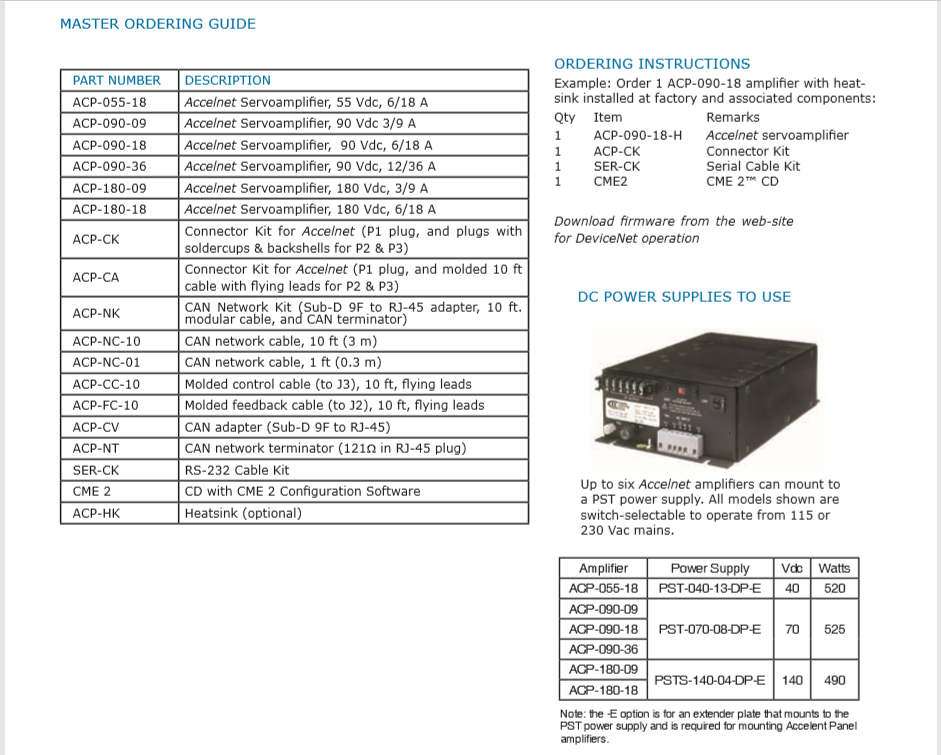

Accelnet is a high-performance, DC powered amplifier for position, velocity (using encoder, Halls, or BEMF), and torque control of brushless and brush motors. It can operate as a distributed drive using the CANopen or DeviceNet protocols, or as a stand-alone drive accepting analog or digital commands from an external motion controller. In stand-alone mode, current and velocity modes accept digital 50% PWM or PWM/polarity inputs as well as ±10V analog. In position mode inputs can be incremental position commands from step-motor controllers, analog ±10V, or A/B quadrature commands from a master-encoder. Pulse to position ratio is programmable for electronic gearing. Amplifier commissioning is fast and simple using CME 2™ software operating under Windows® and communicating with Accelnet via CAN or an RS-232 link. CANopen is the default protocol, DeviceNet is supported by downloading firmware from the web-site. CAN address selection is by a 16-position rotary switch. If there are more than sixteen devices on the CAN bus, the additional address bits needed can come from programmable inputs, or can be set in flash memory.

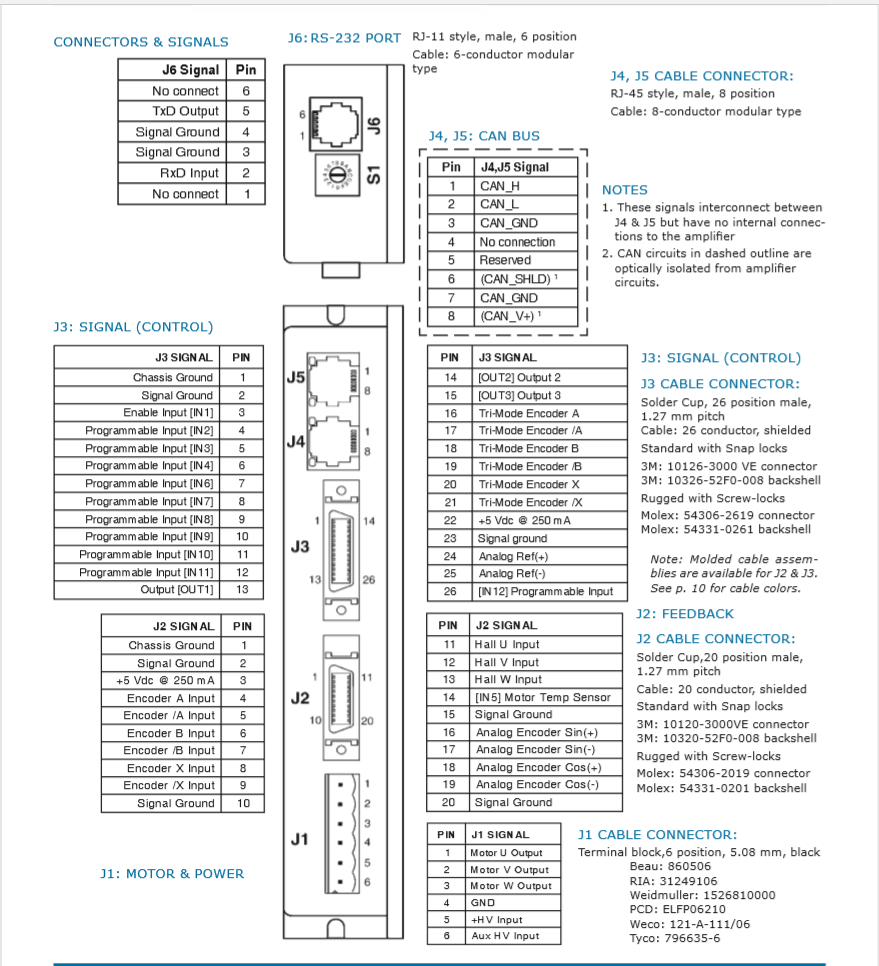

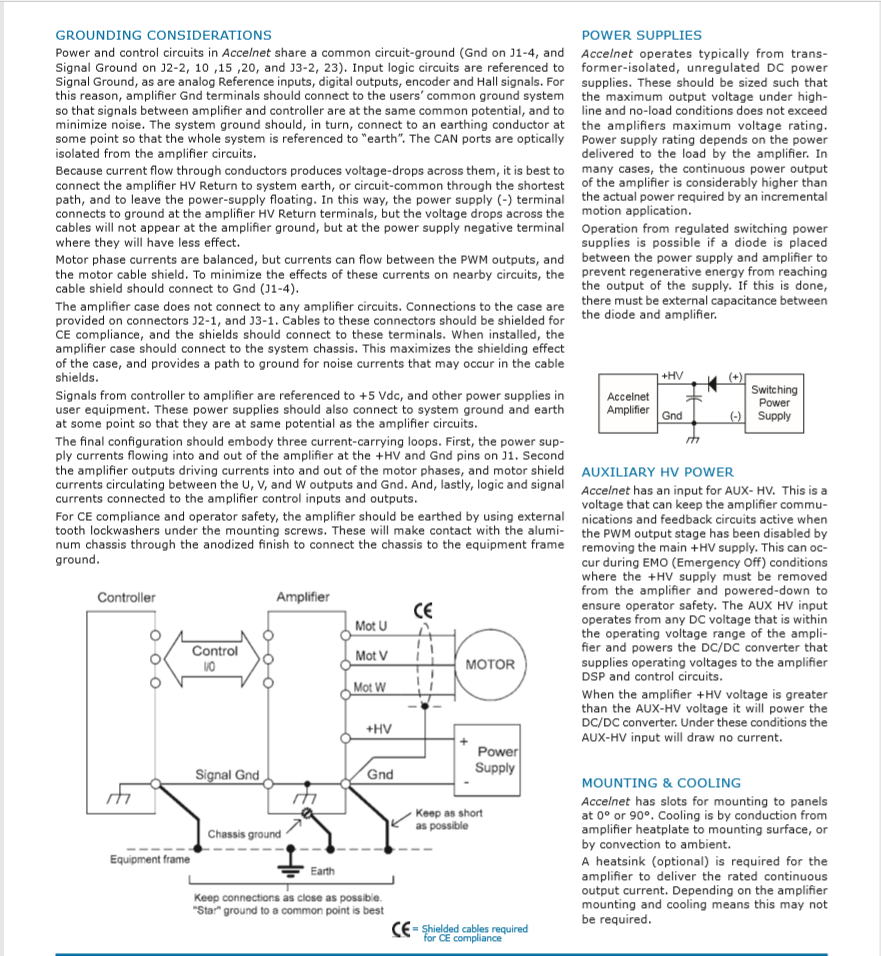

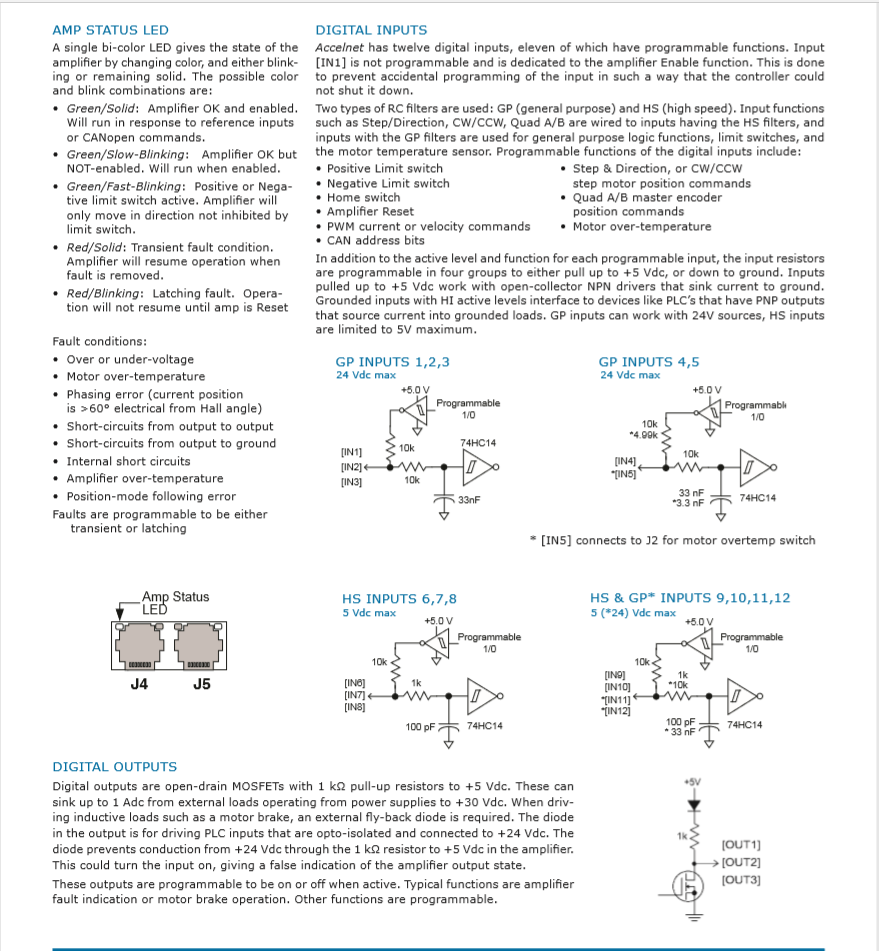

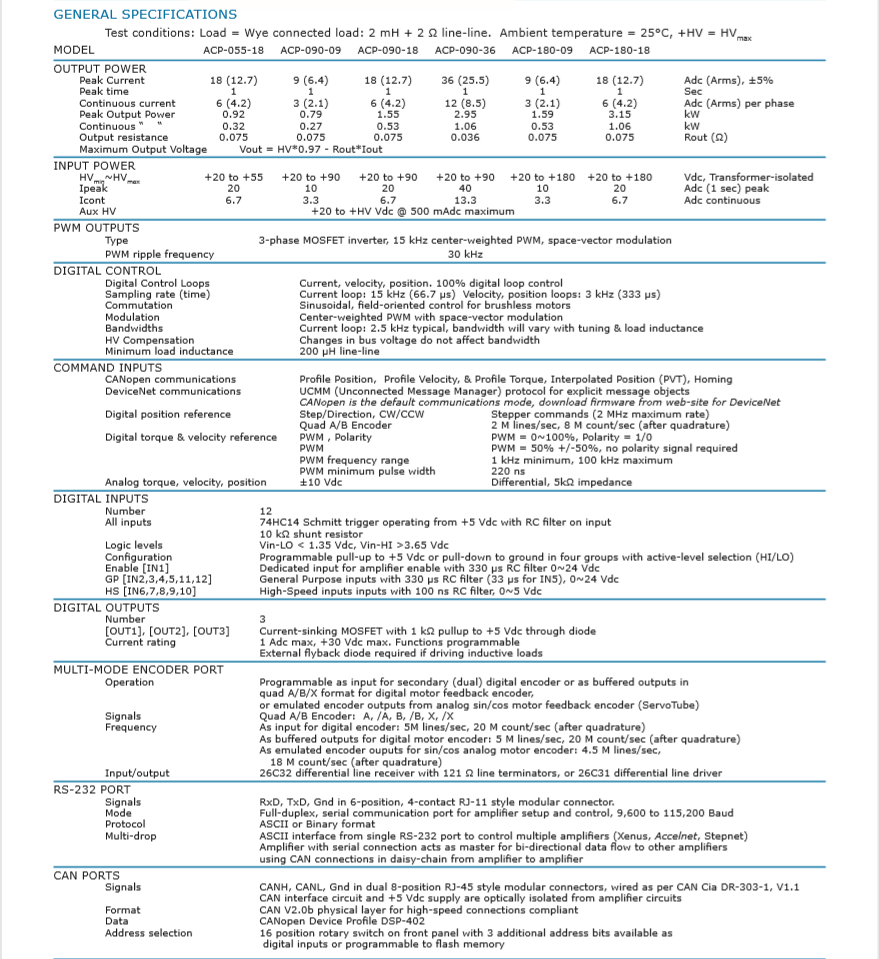

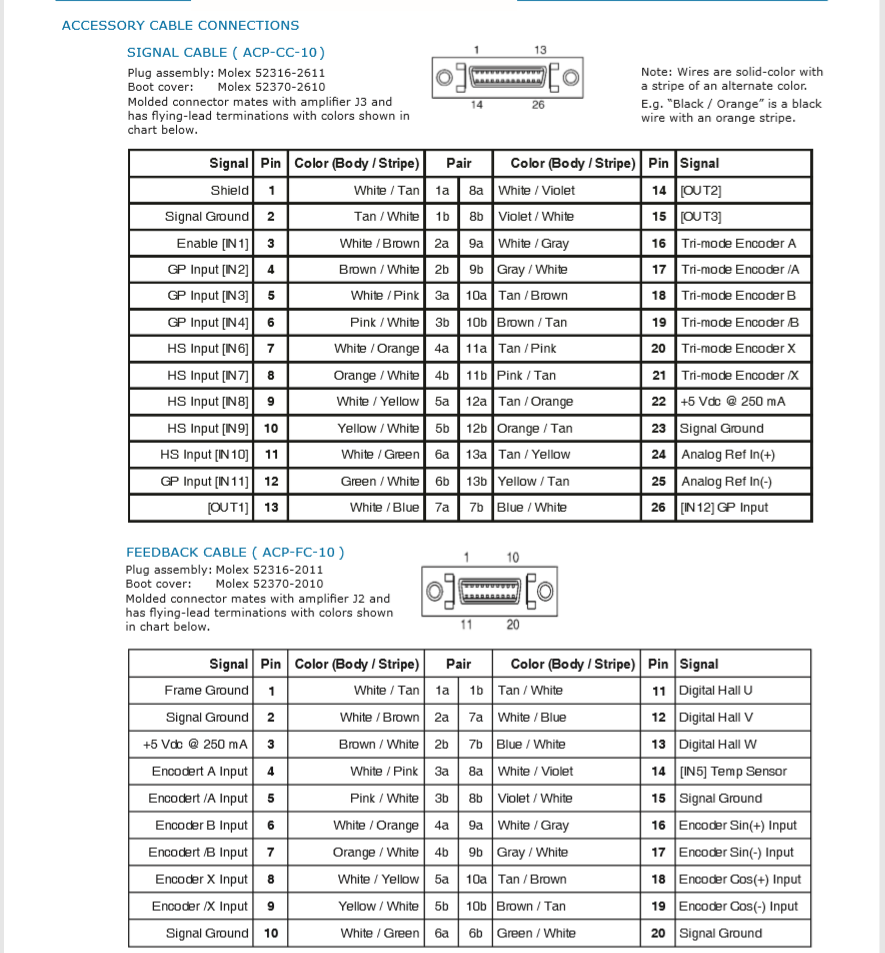

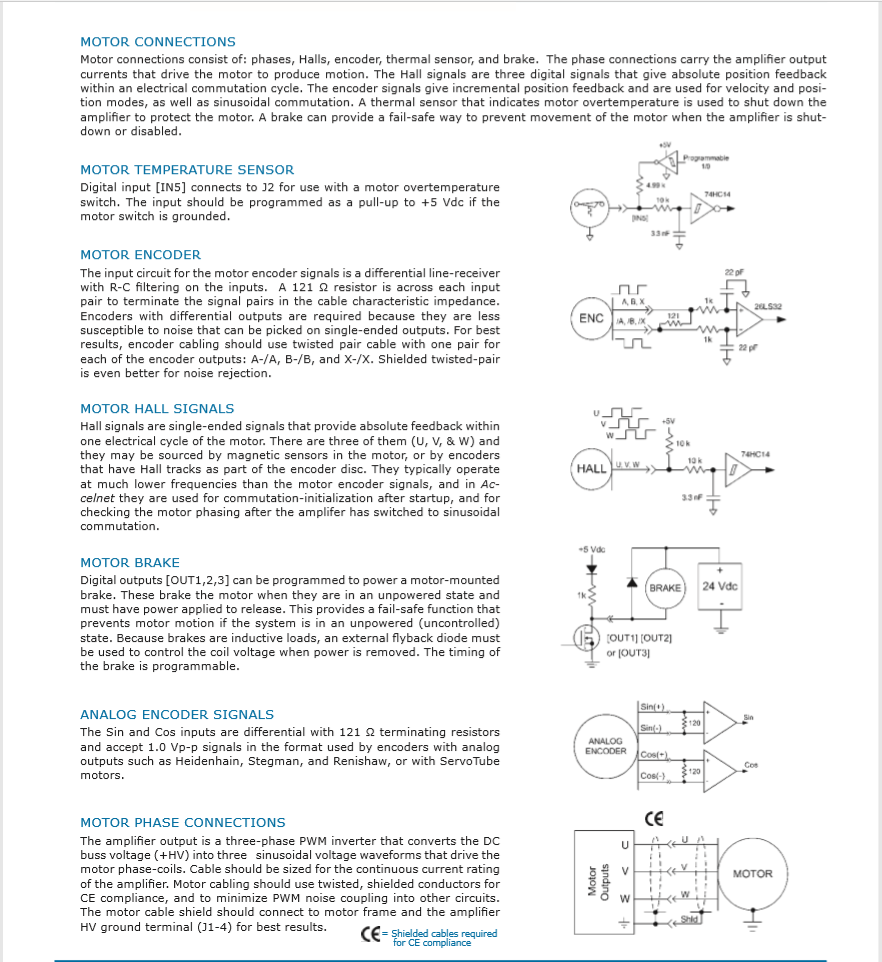

Accelnet models operate as Motion Control Devices under the DSP-402 protocol of the CANopen DS-301 V4.01 (EN 503254) application layer. DSP-402 modes supported include: Profile Position, Profile Velocity, Profile Torque, Interpolated Position Mode (PVT), and Homing. The two CAN ports are optically isolated from amplifier circuits. There are twelve digital inputs eleven of which have programmable functions. These include CAN address, motion-abort, limit & home switches, stepper/encoder pulse inputs, reset, digital torque or velocity reference, and motor over-temperature. Input [IN1] is dedicated for the amplifier Enable. There are three programmable logic outputs for reporting an amplifier fault, motor brake control, or other status indications. Amplifier power is transformer-isolated DC from regulated or unregulated power supplies. An AuxHV input powers control circuits for “keep-alive” operation permitting the amplifier power stage to be completely powered down without losing position information, or communications with the control system.
