Copley Controls: CANopen Accelnet Panel (ADP Series)
Copley Controls: Accelnet Panel (ADP Series)



Price: (Members Only)

Quantity in Stock:2

Availability: Subject to availability
Order #: ADP


Cable 1:
SER-CK: Serial Cable Kit - 1 per comp.to be used w/ CME2 s/w [Add (Members Only)]

Cable 2:
ADP-CV: DB9 Female to RJ45 Adapter Assembly [Add (Members Only)]

Accessory1:
ADP-NK: CANopen Network Kit [Add (Members Only)]

Accessory2:
ADP-NT: CANopen Network Terminator [Add (Members Only)]

Connector1:
ADP-CK: Solder Cup Connector Kit [Add (Members Only)]

Model No.:


Qty:
Description Specifications and Drawings

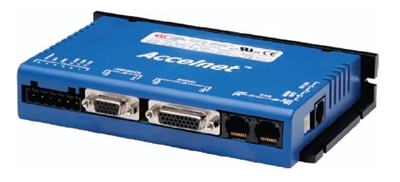

Copley Controls: Accelnet Panel (ADP Series)

20-180 VDC Digital Drives for Brushless Motors


D
escription

Accelnet is a high-performance, DC powered drive for position, velocity (using encoder, resolver, Halls, or BEMF), and torque control of brushless and brush motors. It can operate as a distributed drive using the CANopen, or as a stand-alone drive accepting analog or digital commands from an external motion controller. In stand-alone mode, current and velocity modes accept digital 50% PWM or PWM/polarity inputs as well as ±10V analog. In position mode inputs can be incremental position commands from step-motor controllers, analog ±10V, or A/B quadrature commands from a master-encoder. Pulse to position ratio is programmable for electronic gearing.

Drive commissioning is fast and simple using CME 2™ software operating under Windows® and communicating with Accelnet via CAN or an RS-232 link. CAN address selection is by a 16-position rotary switch. If there are more than sixteen devices on the CAN bus, the additional address bits needed can come from programmable inputs, or can be set in flash memory.

Accelnet models operate as Motion Control Devices under the DSP-402 protocol of the CANopen DS-301 V4.01 (EN 50325-4) application layer.

DSP-402 modes supported include: Profile Position, Profile Velocity, Profile Torque, Interpolated Position Mode (PVT), and Homing. The two CAN ports are optically isolated from drive circuits.

Digital quad A/B encoders and Halls are standard feedback devices. Sin/cos analog encoders are supported in models with an “S” appended to the part number. Resolver feedback is supported in models with “R” appended to the part number.

There are twelve digital inputs eleven of which have programmable functions. These include CAN address, motion-abort, limit & home switches, stepper/encoder pulse inputs, reset, digital torque or velocity reference, and motor over-temperature. input [IN1] is dedicated for the drive enable. There are three programmable logic outputs for reporting an drive fault, motor brake control, or other status indications.

Drive power is transformer-isolated DC from regulated or unregulated power supplies. An AuxHV input powers control circuits for “keep-alive” operation permitting the drive power stage to be completely powered down without losing position information, or communications with the control system.

Control Modes

  • Indexer, Point-to-Point, PVT

  • Camming, Gearing, Position, Velocity, Torque

Command Interface

  • Stepper commands

Single-ended or Differential selectable

  • CANopen

  • ASCII and discrete I/O

  • ±10V position/velocity/torque command

  • PWM position/velocity/torque command

  • Master encoder (Gearing/Camming)

Communications

  • CANopen

  • RS232

Feedback

  • Digital Quad A/B encoders

  • Analog sin/cos encoder (-S option)

  • Brushless resolver (-R option)

  • Aux encoder / emulated encoder output

  • Digital Halls

I/O - Digital

  • 12 inputs, 3 outputs

Dimensions: mm [in]

  • 168 x 99 x 31 [6.6 x 3.9 x 1.2]


Model No.: ADP-055-18, ADP-090-09, ADP-090-18, ADP-090-18-R, ADP-090-18-S, ADP-090-36, ADP-180-18-R, ADP-180-30
