Copley Controls: VAC Servo Amplifier 7429AC
Copley Controls: VAC Servo Amplifier 7429AC

Alternate View
Copley Controls

Price: (Members Only)

Quantity in Stock:1

Order #: 7429AC
Qty:

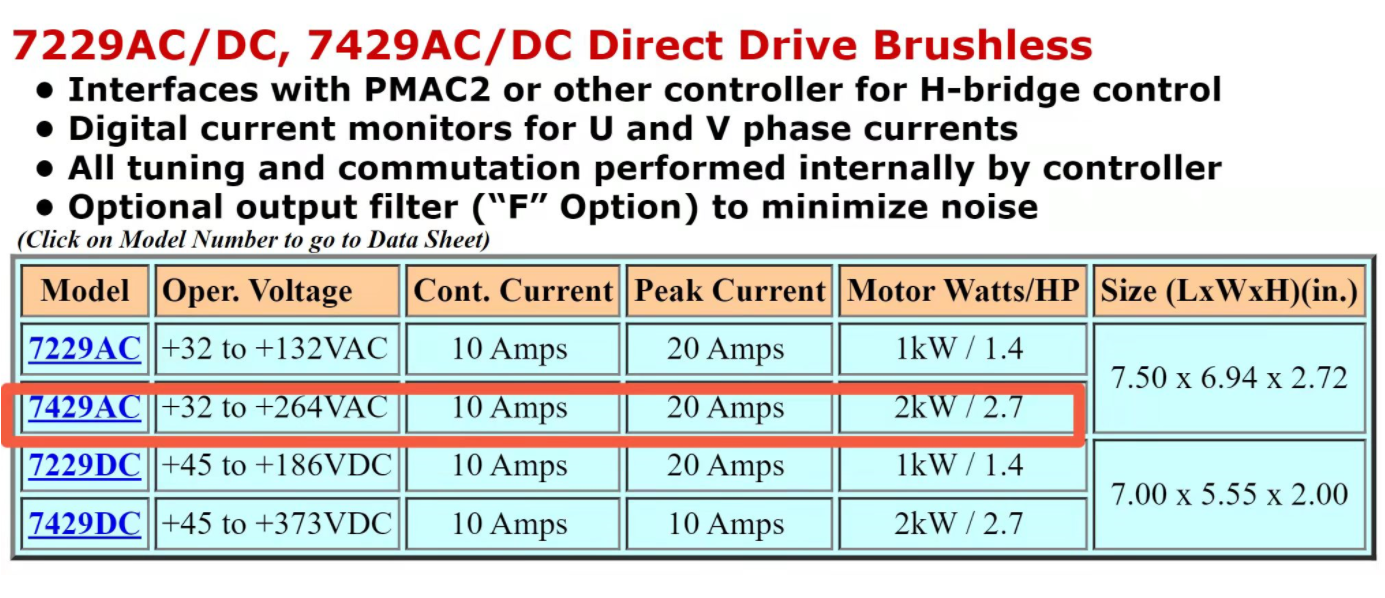

Description Specifications and Drawings


Copley Controls: VAC Servo Amplifier 7429AC

Complete Line-Powered AC Brushless Servo Amplifiers with external sinusoidal commutation


Product Description

This is a legend product of Copley Controls. Open box and new condition.


Features

  • Complete line-powered servo amplifier for AC brushless motors with external sinusoidal commutation

  • Input: 32~264VAC, 50/60Hz, rated current 16A, max 20A

  • Optically isolated power and signal stages

  • Separate motor and signal Sub-D type connectors

  • Control system current limitation without loss of phase and alarm signal

  • Interface with PMAC2 or other controllers for H-bridge control

  • Digital current monitor for U and V phase currents

  • All regulation and commutation are performed internally by the controller

  • Optional output filter ("F" option) to minimize noise


Dimensions: MM (IN)

  • 190.5 x 176.3 x 69.1 (7.50 x 6.94 x 2.72)
