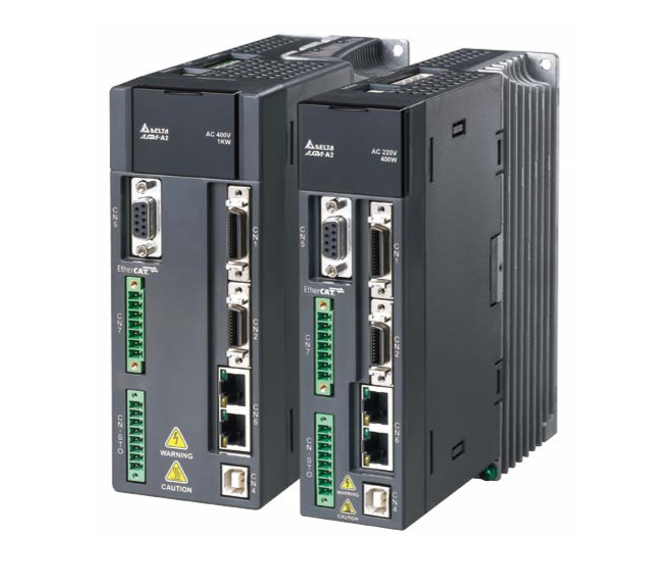

Delta: AC Servo Drives ASD-A2-2043-E
Delta: AC Servo Drives ASD-A2-2043-E

Alternate View


DELTA: AC Servo Motors ECMA-K11320RS
DELTA: AC Servo Motors ECMA-K11320SS

833-9MOTION [email protected].

Price: (Members Only)


Availability: Subject to availability
Order #: ASD-A2-2043-E
Qty:

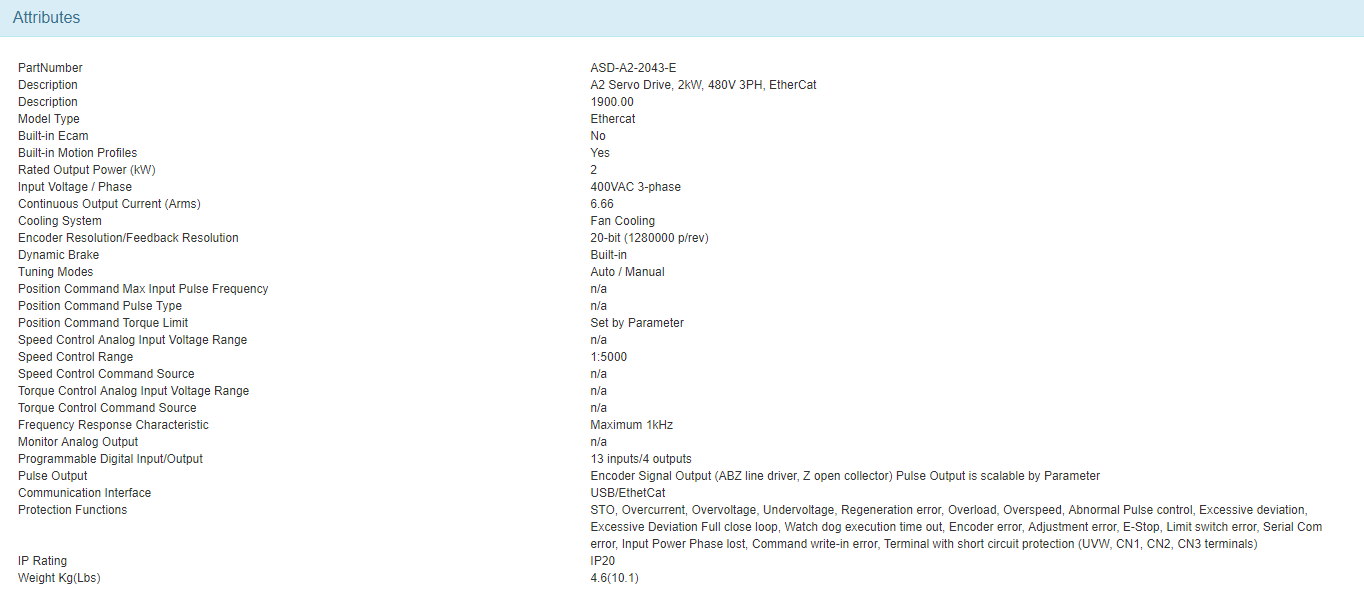

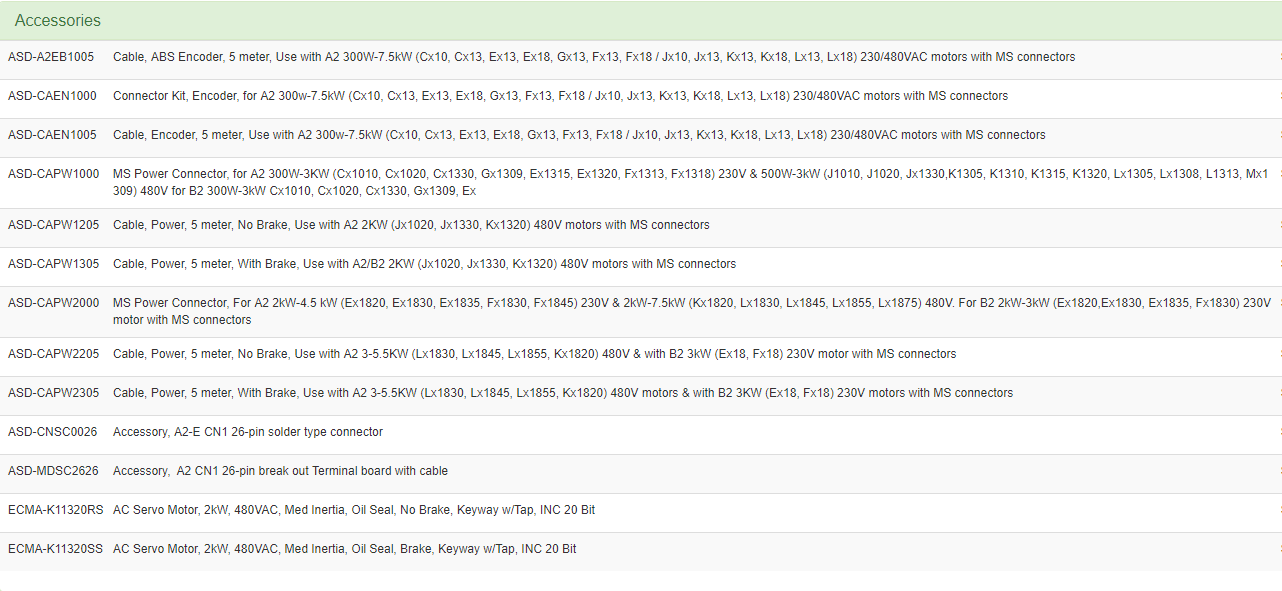

Description Ordering Information Specifications and Drawings


Delta: AC Servo Motors and Drives (ASDA-A2 Series)


The current trend of motion control is to have the control command source close to the drive. To catch this trend, Delta developed the new ASDA-A2 series, offering excellent motion control function so that the external controller could be almost eliminated. ASDA-A2 series features a built-in electronic cam (E-CAM) function which is the best solution for flying shear, rotary cutoff and synchronized motion applications. The whole new position control Pr mode is a unique and most significant function that provides a variety of control modes and definitely enhances system performance. The advanced CANopen interface for high-speed communication enables the drive to integrate with other parts of the automation more efficiently and effectively. The full closed-loop control, auto notch filter, vibration suppression and gantry control functions help to perform complex motions that require high precision and smooth operation. The 20-bit superior resolution encoder which is essential for accurate positioning applications is equipped as standard. In addition, the outstanding Capture and Compare functions for high-speed pulses offer the best support for stepless positioning. Other additional functionality, such as up to 1kHz frequency response, innovative editing software and the high-speed PC monitoring function (like oscilloscope), etc. all drastically maximize the performance of ASDA-A2 series.

Delta's new ASDA-A2 series is the ultimate servo system providing a total solution for a wide range of machine tools and industrial applications.

There are five models of ASDA-A2 series: ASDA-A2-L, ASDA-A2-M, ASDA-A2-F, ASDA-A2-U, ASDA-A2-E

Features:
High Precision Control

  • ECMA series servo motors feature incremental encoder with 20-bit resolution (1280000 pulses/revolution). Existing functions to meet the requirements from delicate process have been enhanced. Stable rotation at low speed has also been achieved.

  • Up to 1kHz frequency response. Settling time below 1ms.

Superlative Vibration Suppression

  • Built-in automatic low-frequency vibration suppression (for crane control): two vibration suppression filters are provided to minimize the vibration at machine edges automatically and sufficiently.

  • Built-in automatic high-frequency resonance suppression: two auto notch filters are provided to suppress the mechanical resonance automatically.

Flexible Internal Position Mode (Pr Mode)

  • ASDA-A2-Soft configuration software provides internal parameter editing function for defining the path of each axis freely.

  • 64 internal position settings are offered for continuous motion control.

  • Destination position, speed and acceleration & deceleration commands could be changed in the middle of operation.

  • 35 kinds of homing modes are available.

Unique Built-in Electronic Cam (E-CAM)

  • Up to 720 E-CAM points.

  • Smooth interpolation between points can be completed automatically to yield a flexible programming.

  • ASDA-A2-Soft configuration software provides electronic cam (E-CAM) profile editing function.

  • Applicable for rotary cutoff and flying shear applications.

Full Closed-loop Control (Capable of reading second feedback signals)

  • Built-in position feedback interface (CN5) is able to read second feedback signals from motor encoder and send the current position back to the drive to form a full closed-loop so that high accuracy position control can be accomplished.

  • Reduce the effects of mechanical imperfections such as backlash and flexibility to ensure the position precision at machine edges.

Features of ASDA-A2-M:

  • CANbus communication speed is 1M bps, in comply with CANopen DS301 standard.

  • 3 CANmotion modes (Profile Position Mode, Interpolation Position Mode, Homing Mode) are provided for CANopen DS402 standard. Max. length of the communication cable can reach up to 40m (when using standard communication cable).

  • Station configuration can be set via parameter settings.

  • In conjunction with Delta’s PLC, it is able to save the wiring and establish Delta fieldbus system configuration.

Features of ASDA-A2-U:

  • Max. 14 digital inputs.

  • Using powerful “Pr mode” is able to perform complex motions.

  • Quick connector is available for easy installation and use.

  • Built-in DC 24V power supply is provided to simplify the wiring and save space.

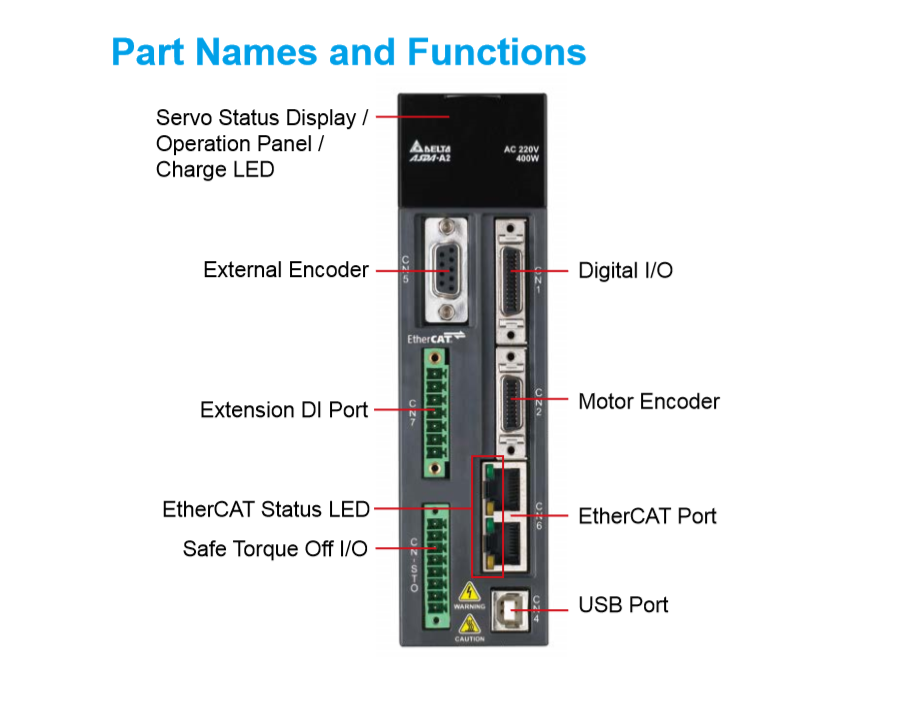

Features of ASDA-A2-E :

· Touch probe function can be enabled with two dedicated Digital Inputs (DI) on CN7 or the external encoder.

· Integrated Safe Torque Off (STO) safety function according to the standards of EN 61800-5-2; IEC 61508, SIL2; IEC 62061, SIL2; ISO 13849-1, Cat.3 ,PL=d.

· Wide power range coverage in both 220V and 400V.

· Supports full-closed loop control.

· Supports absulute type and incremental type ECMA series servo motors.

Applications:

  • Precise carving machine.
  • Precise lathe/milling machine.
  • Double column type machining center.
  • TFT LCD cutting machine.
  • Robot arm.
  • IC packaging machine.
  • High-speed packaging machine.
  • CNC processing equipment
  • Injection processing equipment.
  • Label inserting machine.
  • Food packaging machine p
  • Printing.
Supporting Links:

1) Delta ASDA-A2 Catalog.
2) Delta ASDA-A2 Manual.

3) Delta ASDA-A2-E Catalog.
4) Delta ASDA-A2-E Manual.
