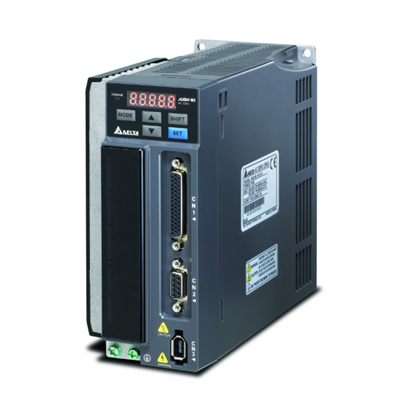

To meet the requirements of general-purpose machine tools and enhance the competitive advantage in the industrial automation market, Delta Electronics, Inc. is pleased to announce that the new high-performance and cost-effective ASDA-B2 series servo motors and drives has launched into the market.
The power rating of the ASDA-B2 series is offered from 0.1kW to 3kW. The superior properties of this series emphasize on "built-in generic functions for general-purpose applications" and "avoiding variable costs from mechatronics integration." When Delta's ASDA-B2 series is in use, the users can conveniently complete assembly, wiring and operation setups. In addition, in switching from other brands to Delta's ASDA-B2 series, outstanding quality and features, and complete product lineup make the replacement is easy and quick to achieve. Using Delta ASDA-B2 series, not only the wiring and operation becomes much easier, and the requirements of general-purpose machine tools for the market could be satisfied as well. Moreover, the customized solutions are available on request for different industries so that make ASDA-B2 series be widely popular and always in demand by the customers in the field of industrial automation.
Features:
High-resolution
encoder with 17-bit (160,000 p/rev) is equipped as a standard feature which
satisfies the application needs of high precision positioning control and
stable rotation at low speed.
Satisfy
High Precision Positioning Requirements
·
Support
pulse input (up to 4Mbps) and analog voltage two kinds of command.
·
Built-in position, speed and torque three control
modes (speed and torque mode could be controlled via internal parameters or
analog voltage command).
·
There auto notch filters are provided to suppress
the mechanical resonance automatically and make the system operate more
smoothly.
Offer Easy-To-Install Solution for Simple Start-Up
·
Motor
sizing software is offered for the customers to conduct the estimation of the
equipment conveniently.
·
ASDA-Soft configuration software (tuning software)
is provided for the customers to meet the performance requirements quickly.
·
Easy-to-use digital keypad is ideal for setting
parameters and monitoring the servo drive and motor directly.
·
Servo motor provides brake, oil seal etc. optional
configurations for the requirements of different applications.
Reduce Maintenance and Wiring Cost for Versatile
Operation
·
Existing
power cables and encoder cables for ASDA series could be used still. When
upgrading, there is no need to purchase new accessories.
·
The control circuit and main power circuit is
separated, safety is increased and maintenance is much easier.
·
400W and above servo drive is built-in with
regenerative resistor, significantly save the wiring and cost.
·
Two analog input terminals (CN5) are provided,
easily monitor and the status of the servo motor.
