Delta: AC Servo Motors ECMA-E11320SS
Delta: AC Servo Motors ECMA-E11320SS

Shop by Phone (972) 719-5555 or Email [email protected].

Price: (Members Only)


Availability: subject to availability
Order #: ECMA-E11320SS
Qty:

Description Ordering Information Specifications and Drawings

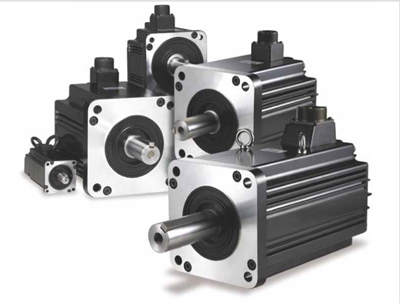

Delta: AC Servo Motors (ECMA-E Series)

ECMA series servo motors are permanent AC servo motors, capable of combining with: 200 to 230V ASDA-A2 220V series AC servo drives from 100W to 15kW and 380V to 480V ASDA-A2 400V series AC servo drives from 750W to 7.5kW.

For the 220V series, there are eight frame sizes available: 40mm, 60mm, 80mm, 86mm, 100mm, 130mm, 180mm, and 200mm. Motor speeds are from 1000 r/min to 5000 r/min. Torque output is from 1.92 N-m to 224 N-m.

For the 400V series, there are four frame sizes: 80mm, 130mm, 180mm, and 200mm. Motor speeds are from 1500 r/min to 5000 r/min. Torque output is from 2.39 N-m to 119.36 N-m. In terms of optional configurations, the ECMA series provides a brake and oil seals to fully support our customers' needs. It also offers two different shaft selections, round shaft and keyways, for various applications.

Support Links
AC Servo Motor, 2kW, 220VAC, MED Inertia, Oil Seal, Brake, Keyway w/Tap, INC 20 Bit
