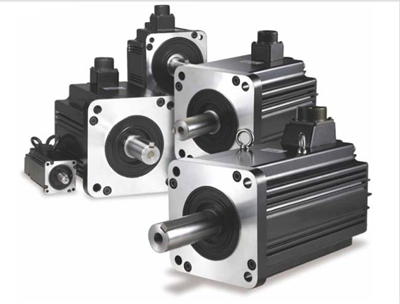

Delta: AC Servo Motors ECMA-K11320RS
Delta: AC Servo Motors ECMA-K11320RS

Shop by Phone (972) 719-5555 or Email [email protected].

Price: (Members Only)


Availability: Lead time is 1-2 weeks.
Order #: ECMA-K11320RS
Qty:

Description Ordering Information Specifications and Drawings


Delta: AC Servo Motors (ECMA Series)

ECMA series servo motors are permanent AC servo motors, capable of combining with: 200 to 230V ASDA-A2 220V series AC servo drives from 100W to 15kW and 380V to 480V ASDA-A2 400V series AC servo drives from 750W to 7.5kW.

For the 220V series, there are eight frame sizes available: 40mm, 60mm, 80mm, 86mm, 100mm, 130mm, 180mm, and 200mm. Motor speeds are from 1000 r/min to 5000 r/min. Torque output is from 1.92 N-m to 224 N-m.

For the 400V series, there are four frame sizes: 80mm, 130mm, 180mm, and 200mm. Motor speeds are from 1500 r/min to 5000 r/min. Torque output is from 2.39 N-m to 119.36 N-m. In terms of optional configurations, the ECMA series provides a brake and oil seals to fully support our customers' needs. It also offers two different shaft selections, round shaft and keyways, for various applications.



Supporting Links:
1) Delta ASDA-A2 Catalog.

Support Links
AC Servo Motor, 2kW, 480VAC, MED Inertia, Oil Seal, No Brake, Keyway w/Tap, INC 20 Bit
