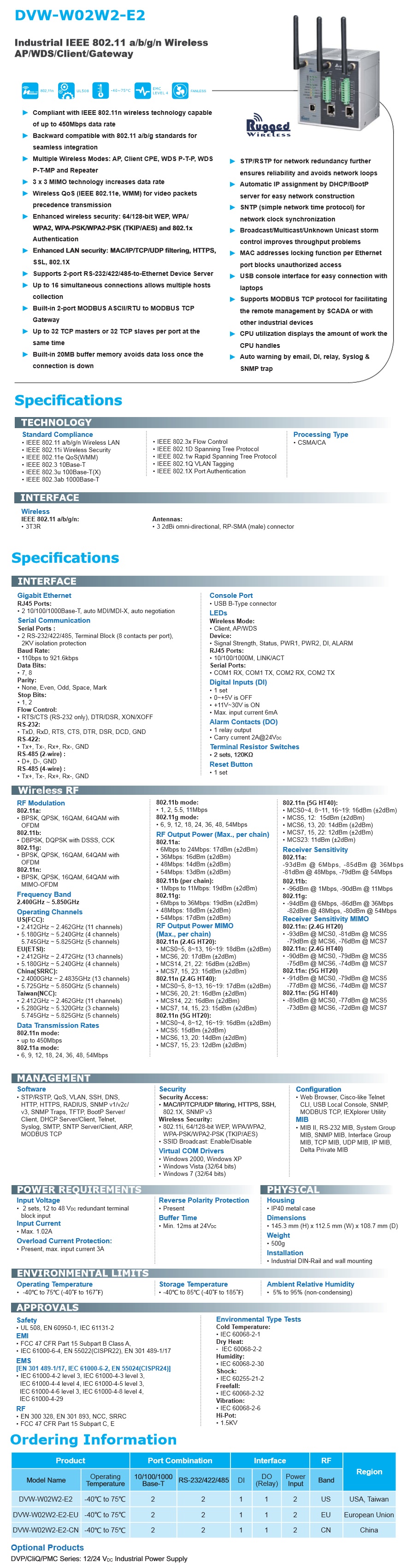

Delta: Industrial Ethernet Solution (DVW-W02W2-E2 Series)

Delta has just launched the Delta Industrial Ethernet Total Solution, which provides Ethernet products with enhanced hardware design, a user-friendly software interface, packet protection and compatibility with multiple industrial communication standards. With the rise of industrial automation technology and intelligent municipal engineering systems, the Ethernet, with its advantages of high speed, high stability and high compatibility, has become the most popular and widely used communication protocol. Based on Delta’s accumulated customer service experience and industrial know-how, the Delta Industrial Ethernet Total Solution helps customers construct an industrial Ethernet system that will satisfy their requirements in a wide range of applications. All of Delta’s Ethernet products are certified to UL, CE and FCC standards.

Wireless AP/WDS/Client/Gateway: DVW-W02W2-E2 Series

Adopting MIMO technology, and support multiple wireless operating mode. 3-in-1 serial ports, enhanced wireless security, WMM and a wide-operating temperature from -40℃ to 75℃ help constructing a reliable industrial wireless network.

Features:

  • Compliant with IEEE 802.11n wireless technology capable of up to 450Mbps data rate

  • Backward compatible with 802.11 a/b/g standard for seamless integration

  • Multiple Wireless Modes: AP, Client CPE, WDS P-T-P, WDS P-T-MP, Repeater

  • 3×3 MIMO technology increases data rate

  • Wireless QoS(IEEE 802.11e, WMM) for video packets precedence transmission

  • Enhanced wireless security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES) and 802.1X Authentication

  • Supports 2-port RS-232/422/485-to-Ethernet Device Server

  • Up to 16 simultaneous connections allows multiple hosts collection

  • Built-in 2-port MODBUS ASCII/RTU to MODBUS TCP Gateway

  • Up to 32 TCP masters or 32 TCP slaves per port at the same time

  • Built-in 20MB buffer memory to avoids data loss once the connection is down

  • SNTP (simple network time protocol) for network clock synchronization

  • Broadcast/Multicast/Unknown Unicast storm control improves throughput problems

  • USB console interface for easy connection with laptops

  • Supports MODBUS TCP protocol for facilitating the remote management by SCADA or with other industrial devices

  • CPU utilization displays the amount of works the CPU handles

  • Auto warning by email, DI, Relay, Syslog & SNMP trap

Specifications:

Technology (Standard Compliance)

  • IEEE 802.11 a/b/g/n Wireless LAN

  • IEEE 802.11i Wireless Security

  • IEEE 802.11e QoS(WMM)

  • IEEE 802.3 10Base-T

  • IEEE 802.3u 100Base-T(X)

  • IEEE 802.3ab 1000Base-T

  • IEEE 802.3x Flow Control

  • IEEE 802.1D Spanning Tree Protocol

  • IEEE 802.1w Rapid Spanning Tree Protocol

  • IEEE 802.1Q VLAN Tagging

  • IEEE 802.1X Port Authentication

Processing Type: CSMA/CA

Interface

Wireless

  • IEEE 802.11 a/b/g/n: 3T3R

Antennas: 3 2dBi omni-directional, RP-SMA(male) connector

Gigabit Ethernet

  • RJ45 Ports: 2 10/100/1000Base-T, auto MDI/MDI-X, auto negotiation

Serial Communication

  • Serial Ports : 2 RS-232/422/485, Terminal Block(8 contacts per port), 2KV isolation protection

  • Baud Rate: 110bps to 921.6kbps

  • Data Bits: 7, 8

  • Parity: None, Even, Odd, Space, Mark

  • Stop Bits: 1, 2

  • Flow Control: RTS/CTS ( RS-232 only ), DTR/DSR, XON/XOFF

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422: Tx+, Tx-, Rx+, Rx-, GND

  • RS-485( 2-wire ) : D+, D-, GND

  • RS-485( 4-wire ) : Tx+, Tx-, Rx+, Rx-, GND

Console Port : USB B-Type connector

Digital Inputs(DI)

  • 1 set

  • 0~+5V is OFF

  • +11V~30V is ON

  • Max. input current 6mA

Alarm Contacts(DO)

  • 1 relay output

  • Carry current 5 A@24VDC

Terminal Resistor Switches: 2 sets, 120KΩ

Reset Button: 1set

Wireless RF

RF Modulation:

  • 802.11a

  • BPSK, QPSK, 16QAM, 64QAM with OFDM

  • 802.11b

  • DBPSK, DQPSK with DSSS, CCK

  • 802.11g

  • BPSK, QPSK, 16QAM, 64QAM with OFDM

  • 802.11n

  • BPSK, QPSK, 16QAM, 64QAM with MIMO-OFDM

Frequency Band: 2.400GHz ~ 5.850GHz

Operating Channels

US(FCC):

  • 2.412GHz ~ 2.462GHz (11 channels)

  • 5.180GHz ~ 5.240GHz (4 channels), 5.745GHz ~ 5.825GHz (5 channels)

EU(ETSI):

  • 2.412GHz ~ 2.472GHz (13 channels)

  • 5.180GHz ~ 5.240GHz (4 channels)

China(SRRC):

  • 2.412GHz ~ 2.472GHz (13 channels)

  • 5.725GHz ~ 5.850GHz (5 channels)

Taiwan(NCC):

  • 2.412GHz ~ 2.462GHz (11 channels)

  • 5.280GHz ~ 5.320GHz (3 channels), 5.745GHz ~ 5.825GHz(5 channels)

Management

Software

STP/RSTP, QoS, VLAN, SSH, DNS, HTTP, HTTPS, RADIUS, TACACS+, SNMP v1/v2c/v3, SNMP Traps, TFTP, BootP

Server/Client, DHCP Server/Client, Telnet, Syslog, SMTP, SNTP Server/Client, ARP, MODBUS TCP Security

  • Security Access: MAC/IP/TCP/UDP filtering, HTTPS, SSH, 802.1X, TACACS+, SNMP v3

  • Wireless Security: 802. 11i, 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES)

  • SSID Broadcast: Enable/Disable

Virtual COM Drivers: Windows 2000, Windows XP, Windows Vista (32/64 bits), Windows 7 (32/64 bits) Configuration: Web Browser, Cisco-like Telnet CLI, USB Local Console SNMP, MODBUS TCP, IEXplorer Utility

MIB: MIB II, RS-232 MIB, System Group MIB, SNMP MIB, Interface Group MIB, TCP MIB, UDP MIB, IP MIB, Delta Private MIB

Power Requirements

  • Input Voltage: 2 sets, 12 to 48VDC redundant terminal block input

  • Input Current: Max. 1.02A

  • Overload Current Protection: Present, Max. input current 3A

  • Reverse Polarity Protection: Present

  • Buffer Time: Min. 12ms at 24VDC

Physical

  • Housing: IP40 aluminum metal case

  • Dimensions: 145.3 mm(H) × 112.5 mm(W) × 108.7 mm (D)

  • Weight: 500g

  • Installation: Industrial DIN-Rail and wall mounting

Environmental Limits

  • Operating Temperature: -40℃ to 75℃(-40℉ to 167℉)

  • Storage Temperature: -40℃ to 85℃(-40℉ to 185℉)

  • Ambient Relative Humidity: 5% to 95%(non-condensing)

Approvals

  • Safety : UL 508, EN 60950-1, IEC 61131-2, BSMI

  • EMI: FCC 47 CFR Part 15 Subpart B Class A, IEC 61000-6-4, EN 55022, EN 301 489-1/17

  • EMS: EN 301 489-1/17, EN 55024, IEC 61000-6-2

  • RF: FCC 47 CFR Part 15 Subpart C & E, EN 300 328, EN 301 893, NCC, SRRC

Environmental Type Tests

  • Cold Temperature: IEC 60068-2-1

  • Dry Heat: IEC 60068-2-2

  • Humidity: IEC 60068-2-30

  • Shock: IEC 60255-21-2

  • Freefall: IEC 60068-2-32

  • Vibration: IEC 60068-2-6

  • Hi-Pot: 1.5KV

Model No.: DVW-W02W2-E2, DVW-W02W2-E2-CN, DVW-W02W2-E2-EU
