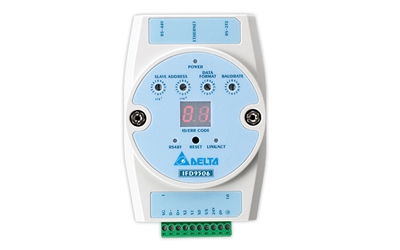

Delta: Industrial Fieldbus Solution (IFD9506 Series)
Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

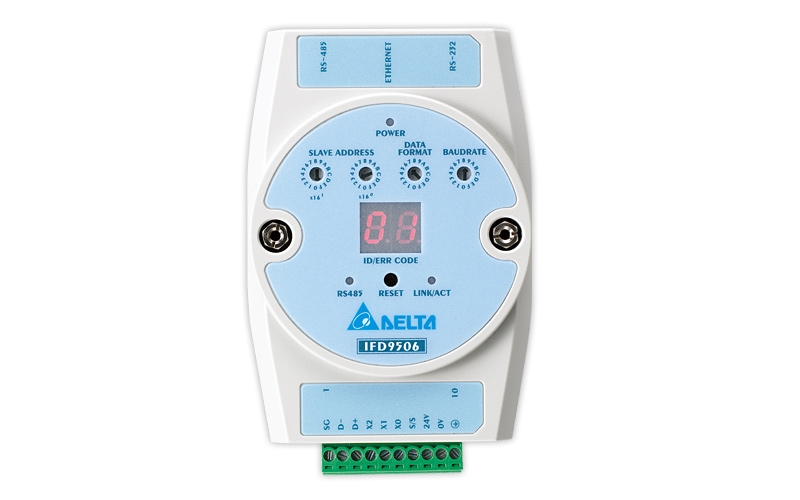

Ethernet Communication Devices (IFD9506 Series)
Combines the most popular Ethernet and industrial products
Crosses the boundary of traditional types of transmissions
Offers 10/100M bps high-speed transmission and highly efficient monitoring
Features:
Isolation in RS-485 channel (incl. power supply)
Supports Modbus TCP protocol
Smart Monitor
Supports webpage setup & on-line monitoring
Serial Virtual COM available
3 e-mail alarms (DI)
Specifications:
Network Interface
Transmission method: IEEE 802.3, IEEE 802.3u
Transmission interface: RJ-45 MDI/MDIX, no jumper cable required
Baud rate: 10/100M bps, auto-detection
Network protocols: ICMP, IP, TCP, UDP, DHCP, SMTP, Modbus TCP
Power supply voltage: 24 VDC (-15 to 20%)
Power consumption: 3 W
Insulation voltage: 500 V
RS-485 Interface
Connector 1: RJ-11, 10-pin feed through terminal
Connector 2: 3-pin, removable
Transmission method: RS-485
Serial baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Data type: Modbus ASCII/RTU, user-defined
