Delta: CliQ II DIN Rail Power Supply DRP024V480W3B
Price:
(Members Only)
Availability:
Estimated lead time is 12-14 weeks
Order #:
DRP024V480W3B
Qty:
Description

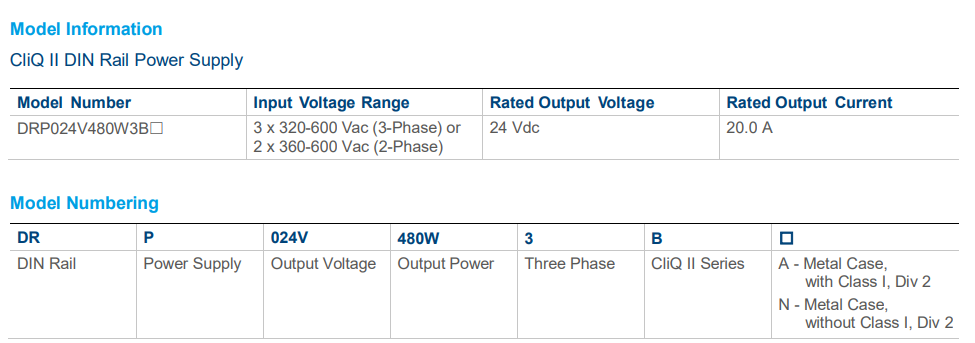

Ordering Information

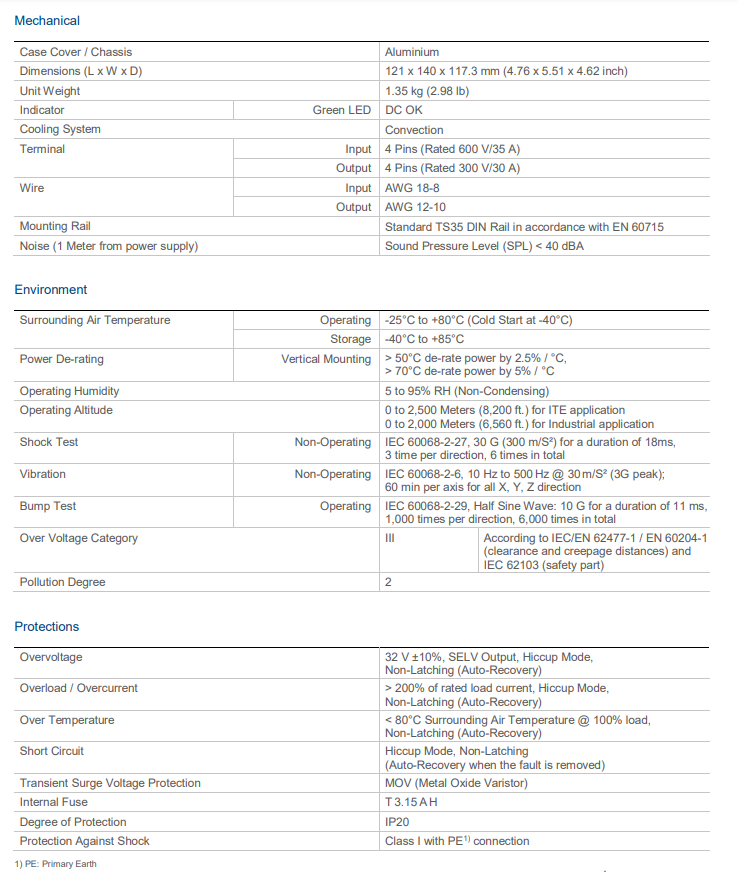

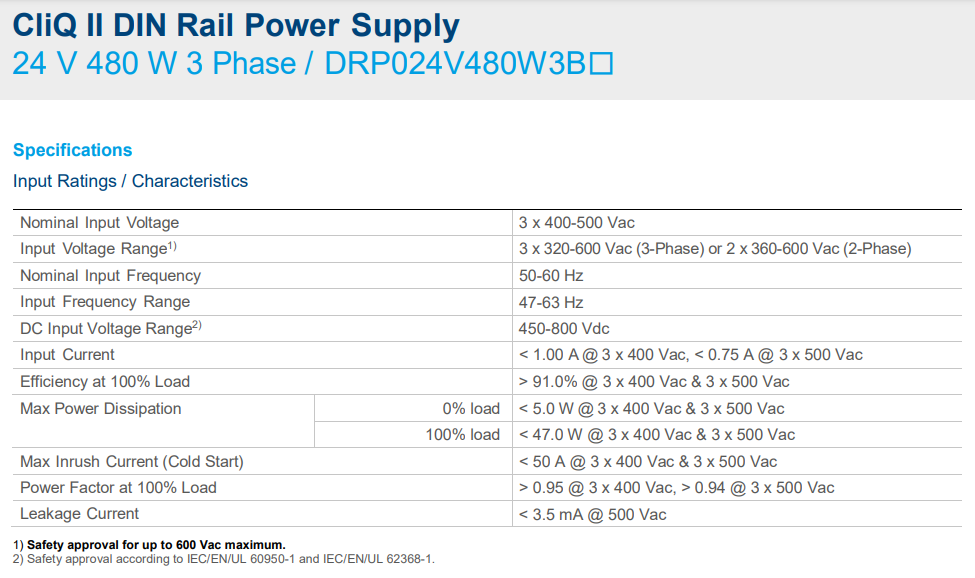

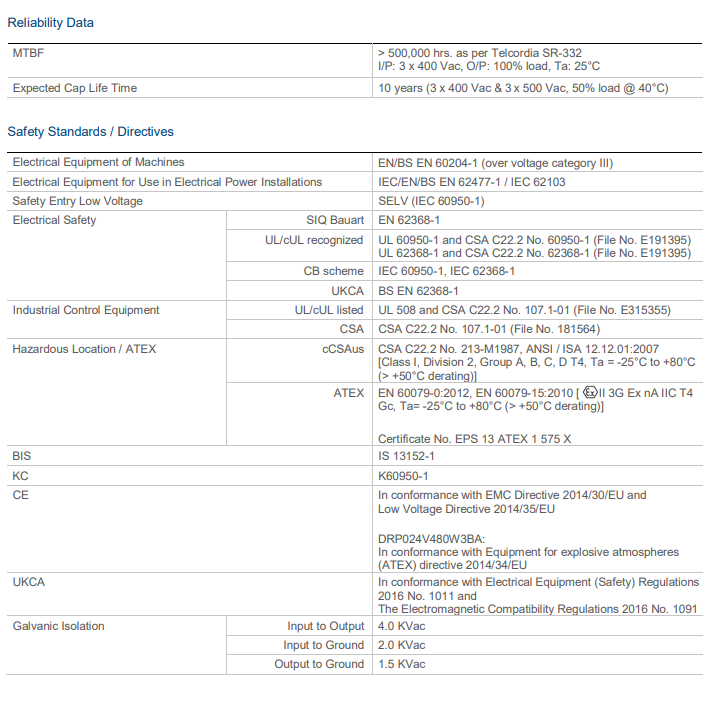

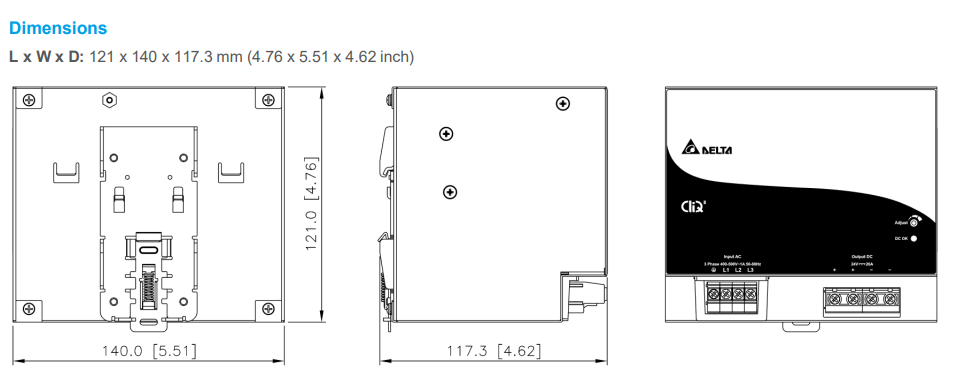

Specifications and Drawings

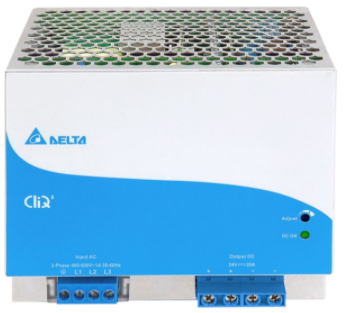

Delta: CliQ II DIN Rail Power Supply DRP024V480W3B
24V 480W 3 Phase DRP024V480W3B

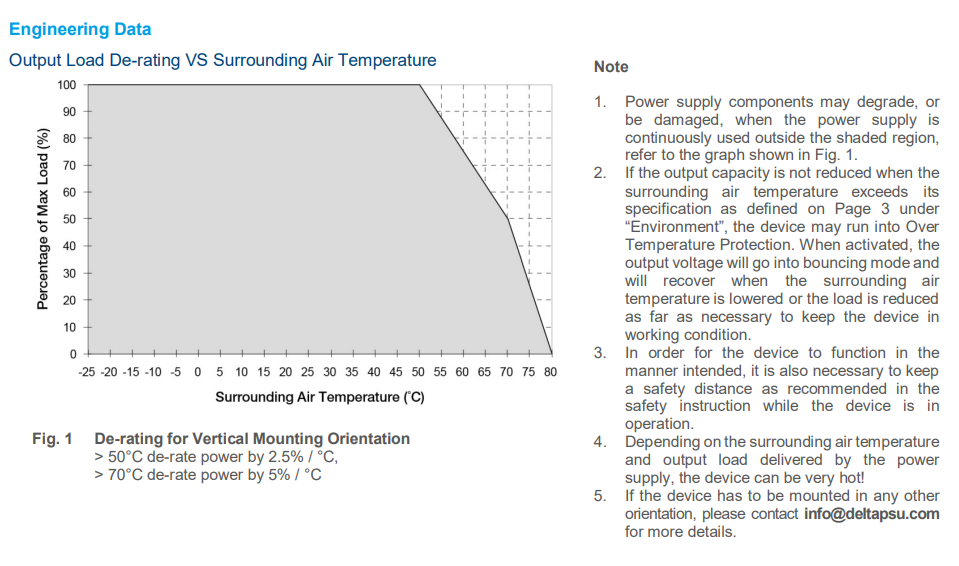

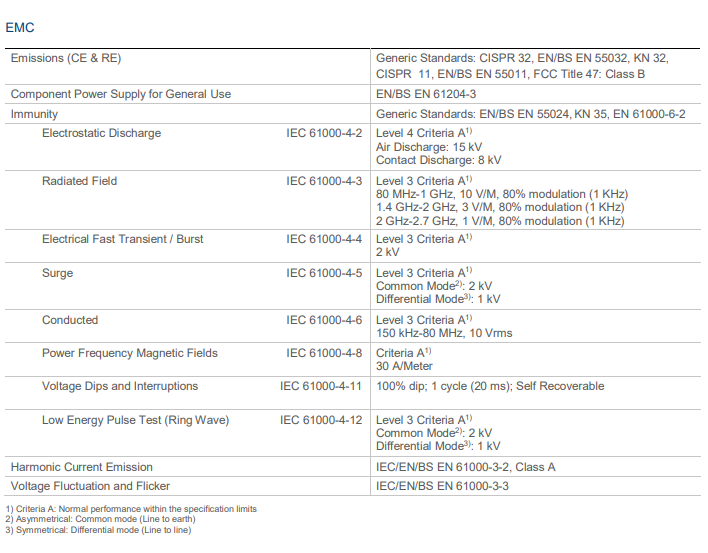

The CliQ II 3-phase DIN rail power supply series offers output voltage of 24 V. These products are encased in rugged yet lightweight full aluminium body that can withstand shock and vibration according to IEC 60068-2 standard. The series of 3-phase products can operate over a wide temperature range of -25°C to +80°C. These products also feature universal AC input voltage range for 3-phase from 320 Vac to 600 Vac or 2-phase from 360 Vac to 600 Vac, and the power will not de-rate throughout the entire range. Another great feature is the conformal coating on the PCBA which allows selected models to be certified to ATEX and Class I, Div 2 for use in hazardous locations. The design conforms to harmonic current emission IEC/EN 61000-3-2, Class A.
Support Links
CliQ II DIN Rail Power Supply-DRP024V480W
