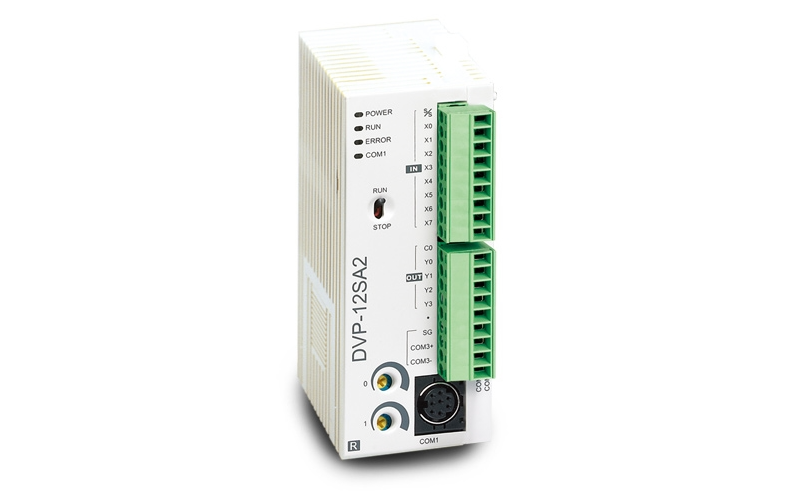

Delta: Programmable Logic Controllers - DVP Series DVP12SA211R
Delta: Programmable Logic Controllers - DVP Series DVP12SA211R

Shop by Phone (833) 966-8466 or Email [email protected].

Price: (Members Only)


Availability: 1-3 BUSINESS DAYS
Order #: DVP12SA211R
Qty:

Description Ordering Information Specifications and Drawings


Delta: Programmable Logic Controllers (DVP Series)

Programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control.

DVP Series Programmable Logic Controllers

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete “Delta Solution” for all users.

DVP-SA2 Series

The 2nd generation DVP-SA2 series slim type PLC offers bigger program capacity and executing efficiency, offering 100 kHz high-speed output and counting functions. It is extendable with DVP-S series left-side and right-side extension modules.

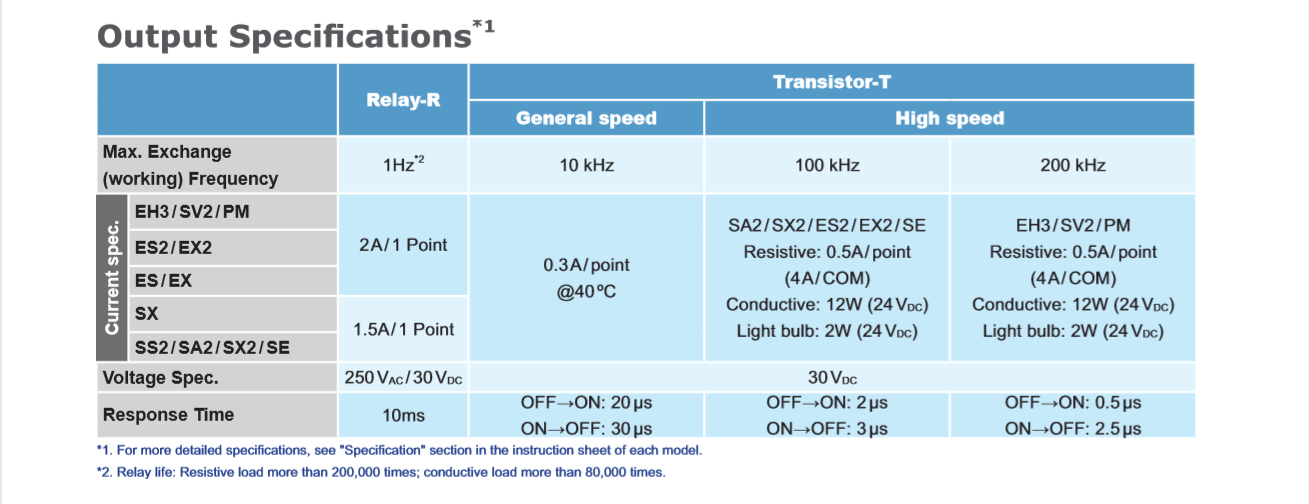

Specifications:

  • MPU points: 12 (8DI + 4DO)

  • Max. I/O points: 492 (12 + 480)

  • Program capacity: 16k steps

  • COM port: Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol.

  • Can be master or slave.

  • High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.

  • Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions.

  • Built-in High-Speed Counters

Applications:

  • Printing machine

  • Dyeing machine

  • Container filler (for prescription’s)

  • Workstation monitoring in production line (PLC EASY LINK)

Supporting Links:

Delta_DVP Catalog.pdf.
Delta_PLC_DVP_2018 Catalog.pdf.

Support Links
Delta Products, PLC, DVP12SA211R, DVP-S CPU 8DI/4DO, 24VDC, Relay Output
