Delta: Programmable Logic Controllers (DVP Series)
Programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control.
DVP Series Programmable Logic Controllers
Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network in to a complete “Delta Solution” for all users.

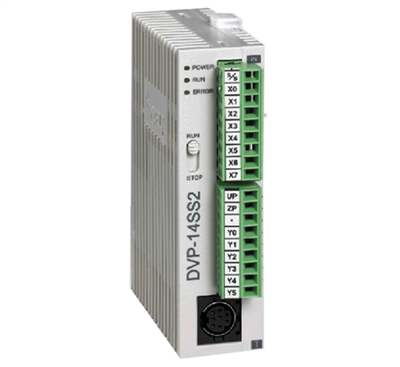

DVP-SS2 Series
The 2nd generation DVP-SS2 series slim type PLC keeps the basic sequential control functions from the DVP-SS series PLC but with faster execution speed and enhanced real-time monitoring capability.
Specifications:
MPU points: 14 (8DI + 6DO)
Max. I/O points: 494 (14 + 480)
Program capacity: 8k steps
COM port: Built-in RS-232 & RS-485 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave.
High-Speed Pulse Output：Supports 4 points (Y0 ~ Y3) of independent high-speed (max. 10kHz) pulse output
Supports PID Auto-tuning：DVP-SS2 saves parameters automatically after the PID auto temperature tuning is completed.
Built-in High-Speed Counters
Applications:
Spinning machine
Conveyor belt (rotation speed control)
Winding machine (tension control)
Supporting Links:
Delta_DVP Catalog.pdf. Delta_PLC_DVP_2018 Catalog.pdf.
