Delta: Advanced Industrial Touch Screen Panel HMI - Human Machine Interfaces
(DOP-100 Series)

Touchscreen, 15", Color, High Resolution, Dual-Core Advanced Multimedia HMI with Dual Ethernet Ports and Video/IP Camera Support

A human machine interface (HMI) is a platform which permits interaction between users and automation equipment. Delta’s HMI products provide various communication ports for fast communication and convenient control of a diverse range of machines, systems and facilities. The color touchscreen enables intuitive parameter entry and a variety of ways to display variable data, including trend graphs and alarm elements. The high resolution LCD display visualizes operating, monitoring and efficient control in real time. In addition, the user-friendly editing software guides users in quickly creating easy-to-navigate visual icons and easily designing intuitive monitoring screens for applications, while making adjustments, scheduling, and programming operational sequences that enhance flexibility and save development time. This achieves rapid system development that simplifies wiring and installation, saves operating expenses, and makes systems more efficient, eliminating time-consuming adjustment and additional maintenance costs.

DOP-100 Series

Delta’s Human Machine Interface DOP-100 Series adopts the latest Cortex-A8 high speed processor and 65,536 color LCD display panel with high brightness and contrast. The DOP-100 Series supports multiple network functions, including FTP, E-Mail, VNC (Virtual Network Computing) Remote Monitoring, and NTP (Network Time Protocols) to meet customer requirements for cloud applications and smart manufacturing.

The Standard HMI is equipped with 2+ COM ports to meet most customer requirements. The Standard Ethernet Type offers an Ethernet port for fast connection with other equipment.

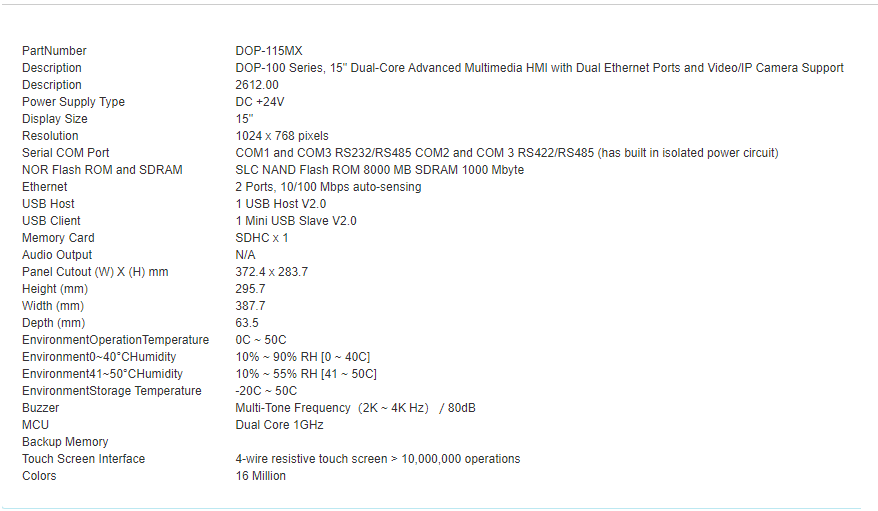

Specifications:
