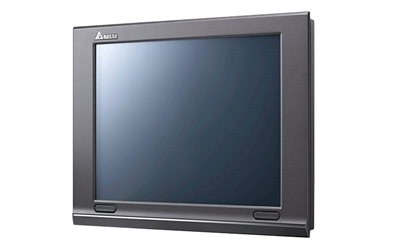

Delta: Touch Panel HMI - Human Machine Interfaces DOP-W127B
Delta: Touch Panel HMI - Human Machine Interfaces DOP-W127B

Alternate View


Shop by Phone (972) 719-5555 or Email [email protected].

Price: (Members Only)


Order #: DOP-W127B
Qty:

Description Ordering Information Specifications and Drawings


Delta: Touch Panel HMI - Human Machine Interfaces (DOP-W Series)

A human machine interface (HMI) is a platform which permits interaction between users and automation equipment. Delta’s HMI products provide various communication ports for fast communication and convenient control of a diverse range of machines, systems and facilities. The color touchscreen enables intuitive parameter entry and a variety of ways to display variable data, including trend graphs and alarm elements. The high resolution LCD display visualizes operating, monitoring and efficient control in real time. In addition, the user-friendly editing software guides users in quickly creating easy-to-navigate visual icons and easily designing intuitive monitoring screens for applications, while making adjustments, scheduling, and programming operational sequences that enhance flexibility and save development time. This achieves rapid system development that simplifies wiring and installation, saves operating expenses, and makes systems more efficient, eliminating time-consuming adjustment and additional maintenance costs.

DOP-W Series

The DOP-W Series is a large Human Machine Interface (HMI) that comes with a high resolution and high brightness touch screen in 10.4”, 12” and 15” sizes. With the latest Cortex-A8 processor for up to 1GHz pulse wave, the DOP-W Series delivers high performance with rapid response. Its rugged and CE-certified aluminum enclosure protects from vibration and changing ambient temperatures, and features an IP65 waterproof front panel for harsh environments. Built-in stereo speakers increase utility and flexibility. The DOP-W Series complies with CE and UL safety approvals and provides an efficient and competitive solution to meet customer needs for a wide range of high-end industrial automation applications.

Specifications:

  • 12" (1024 x 768 pixels) TFT LCD 65536 colors

  • CE-certified aluminum enclosure

  • 2 sets of COM ports, support RS232 / RS422 / RS485

  • Supports USB Host, direct connection to USB disk, printer and mouse

  • Supports SD card

  • Supports 2 Ethernet ports

  • Supports audio output (MP3, Wav files)

  • Supports video format: MPEG1, MPEG2, WMV

  • Touch screen complies with IP65

  • Supports horizontal / vertical display

  • PC editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7

Applications:

  • Meets Customer Needs.
  • Satisfies a Variety of Applications.
  • Three serial communication interfaces (RS-232/RS-422/RS-485), USB disk, audio output, SD card and more are supported for various applications.
  • Not just Delta industrial automation products, but more than 30 brands, and over 100 models of PLCs or controllers can be connected for effortless communication and versatile operation.


Supporting Links:

Delta_HMI_DOP_Catalog.pdf.

Delta_PLC-HMI_Cable_Guide.pdf.

Delta_DOP-W_Instruction.pdf.

Support Links
Touchscreen, Wide Screen, 12.1", IP65, High Resolution HMI, Built-In Stereo Speakers
