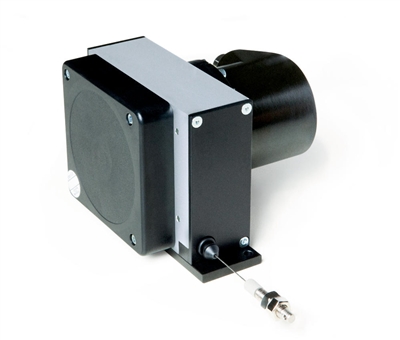

SIKO: Draw-wire encoder (SG61 Series)

Robust design with 6000 mm measurement length

Universally usable wire-actuated encoder with measuring lengths of max. 6000 mm, robust design as well as precise and safe wire guidance; prepared for the attachment of various types of rotary encoders with 58 mm standard flange.In combination with a safety encoder from the PURE.MOBILE sensor platform, the wire-actuated encoder can also be used in safety-critical applications up to Performance Level PLd. Furthermore, the wire-actuated encoder can also be used in safety-critical applications up to Performance Level Pld for easy parameterization.

Profile SG61:

• Robust design
• Easy mounting
• Measurement lengths up to max. 6000 mm
• Flexible wire outlet thanks to Wire-Flex technology
• Incremental or absolute encoder
• Also available as a safety version in combination with WV58MR rotary encoder
• High flexibility thanks to free choice of rotary encoders with 58 mm standard flange
• Various wire types
• with PURE.MOBILE technology

More information: Rotary encoders that can be combined with this wire-actuated encoder

• for analog outputs such as current or voltage: AV3650M, AV58M
• for incremental outputs: IV5800
• for absolute outputs: WV58MR, WV5800M, WV5850, WV3650M, WV36M/CAN

SIKO rotary encoders have the following interfaces, among others: incremental, SSI, CANopen, CANopen Safety, SAE J1939, various fieldbus protocols.



Part Number: SG61-0005 (SG61-6000-GWS-OG6-0-T1)
Features:

• Measurement Range: 6000mm
• Rope Fixture: GW wire suspension with thread
• Wire Design: S stainless steel wire
• Encoder Type: 0G6 without encoder
• Position of Electrical connection: 0 without encoder
• Operating temperature: T1 -20℃---+80℃
