Dynomotion: 4-Axis Stepper Driver KStep
KStep is a KFLOP expansion
board designed specifically for plug-and-play stepper motor control. With only
a motor power supply, stepper motors and the KFLOP+KStep you have all you need
to start controlling 4 motors (or 8 with 2 KSteps).
This ease-of-use also comes with high
performance, high efficiency, and additional 12-24V isolated I/O expansion
sufficent for most applications. Although it is possible to use third-party
stepper or servo drives with our KFLOP controller, KStep provides complete

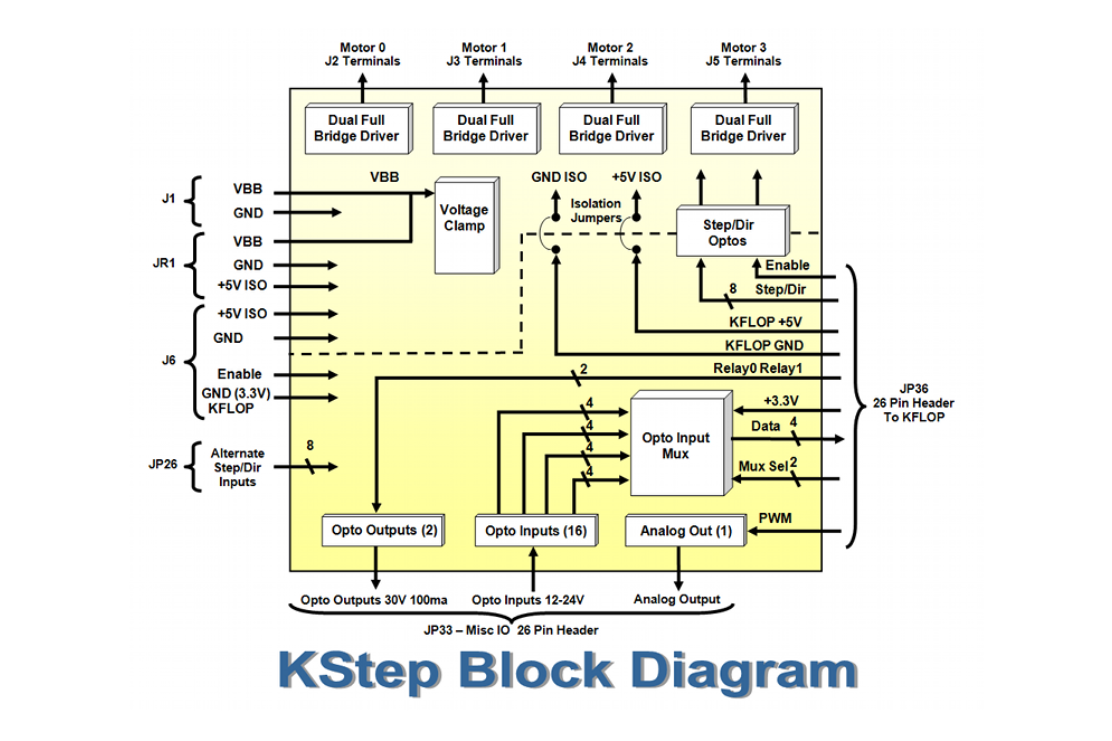

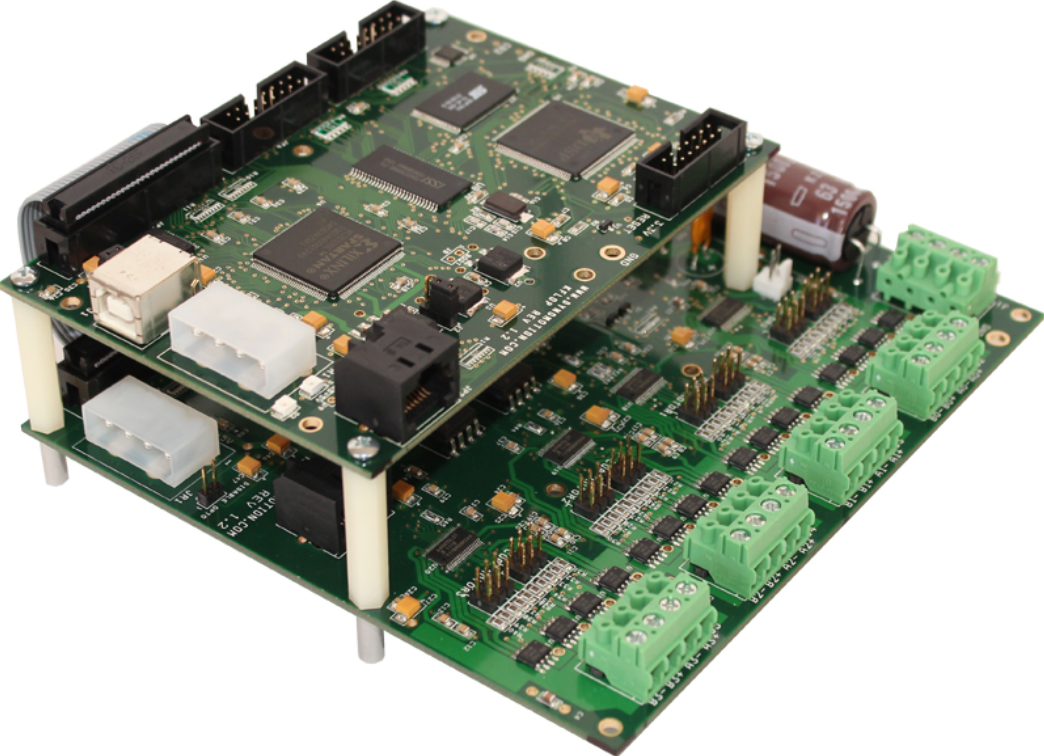

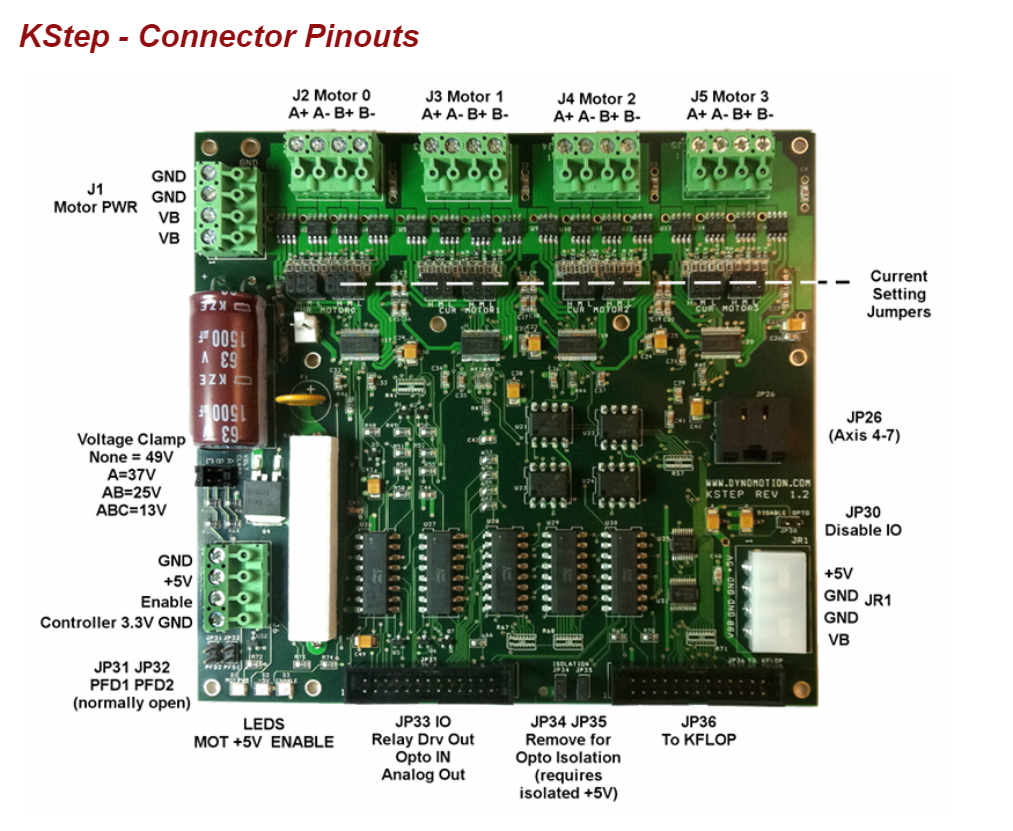

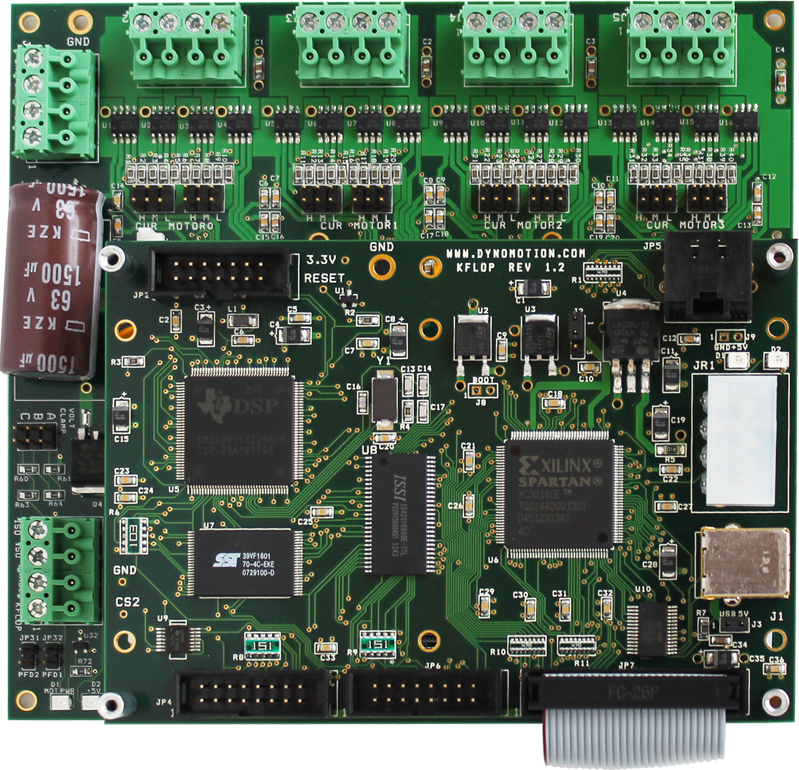

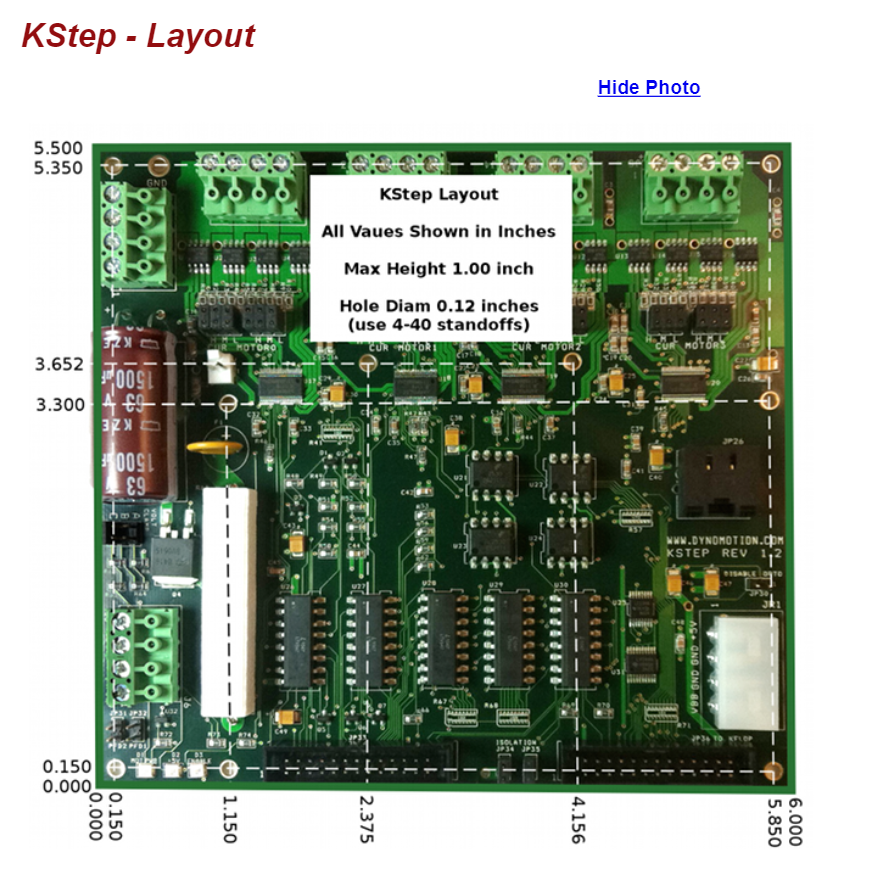

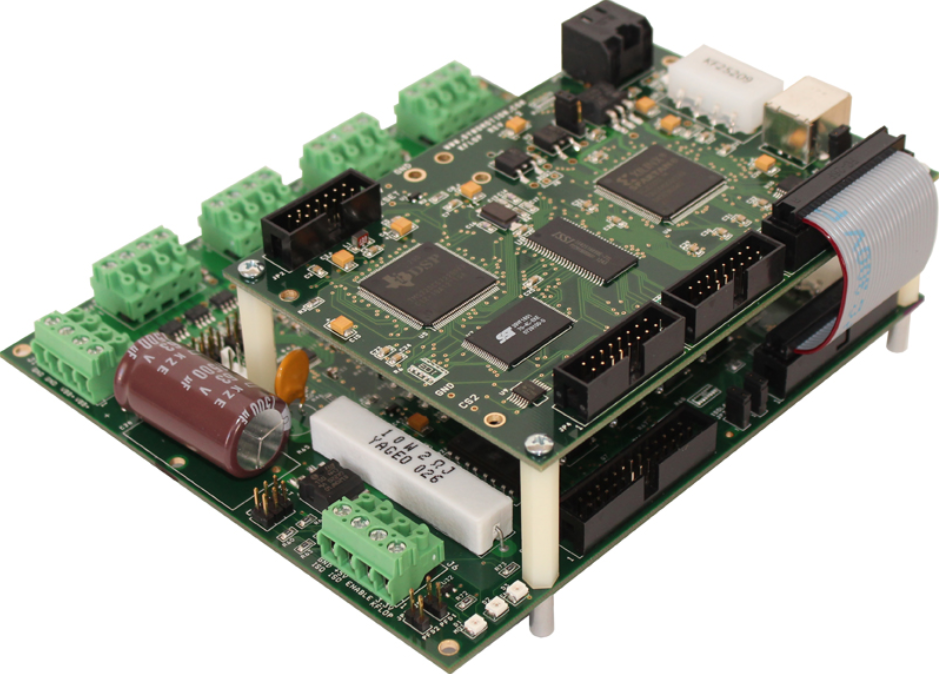

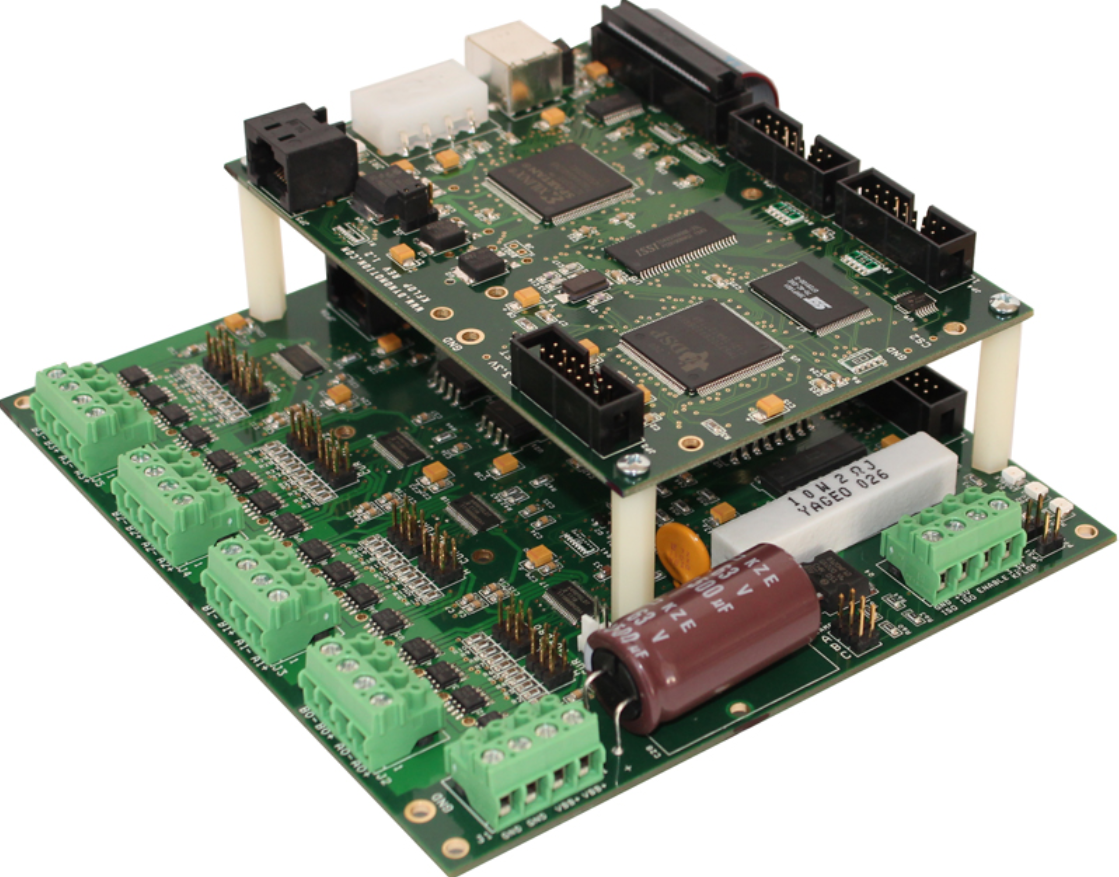

connectivity with a single ribbon cable connection, easily mounts to KFLOP with
standoffs, and gets the most out of our software. In addition, KStep's ultra
low resistance MOSFETS eliminates the need for special cooling and heat
sinking. This setup reduces cabling and wiring and puts everything you need
into a nice footprint. KStep really is a culmination of many customer
requirements in one expansion board.

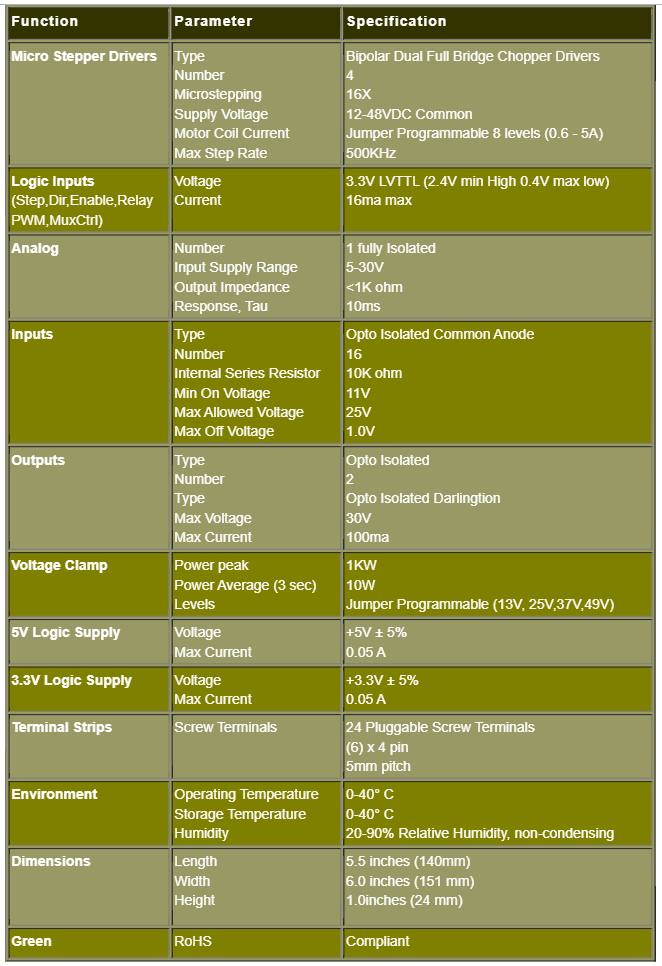

Features:
- Quad 240W
Microstepper Amplifer
- Plug-n-Play with
KFLOP
- 16X Microstepping
- 5A @ 48V Max
- Super High
Efficiency 17 milliohm MOSFETS
- Opto Isolation
- Mixed Current
Decay
- 500K steps/sec
- Regenerative
Voltage Clamping (1KW peak)
- Includes 1 Opto
Isolated Analog Output
- Includes (16)
12-24V Opto Inputs
- Includes (2) 30v
@ 0.1A Opto Isolated Drivers
- Software:
The main
strength of Dynomotion's products is the comprehensive level of software
support. From the flexibility of the low-level programmable FPGA logic, digital
signal processing routines, real-time multitasking programs, host motion
control libraries, interpreters, compilers, .NET interface, examples, mach3
support, servo tuning and analysis tools, and supplied host applications.
Applications:
- Most
anything using 200+W Steppers
- CNC
machining:
- Mills
- Lathes
- Brakepresses
- Grinders
- Spinners
- Routers
- Saws
- Robotics
- Automation
- Camera
Control
- Pick-and-place
- Data
Acquisition
Example Input/Outputs:
- Size 23 Stepper Motors
- Stepper
Motors greater than 5A are ok, but current is limited at 5A which is
generally not a problem
- Simple
sinking 24V Limit and Home Switches
- Spindle
controls with 0-10V analog input
Not to be used with:
- Supply voltages lower than 12V and higher than 48V
Model No.: KELOP, KStep, Kanalog, SnapAmp, Konnect, KNozz.
