Autonics Encoder E40HB-8-2048-6-L-5
Autonics Encoder E40HB-8-2048-6-L-5


Price: (Members Only)


Order #: E40HB-8-2048-6-L-5
Qty:

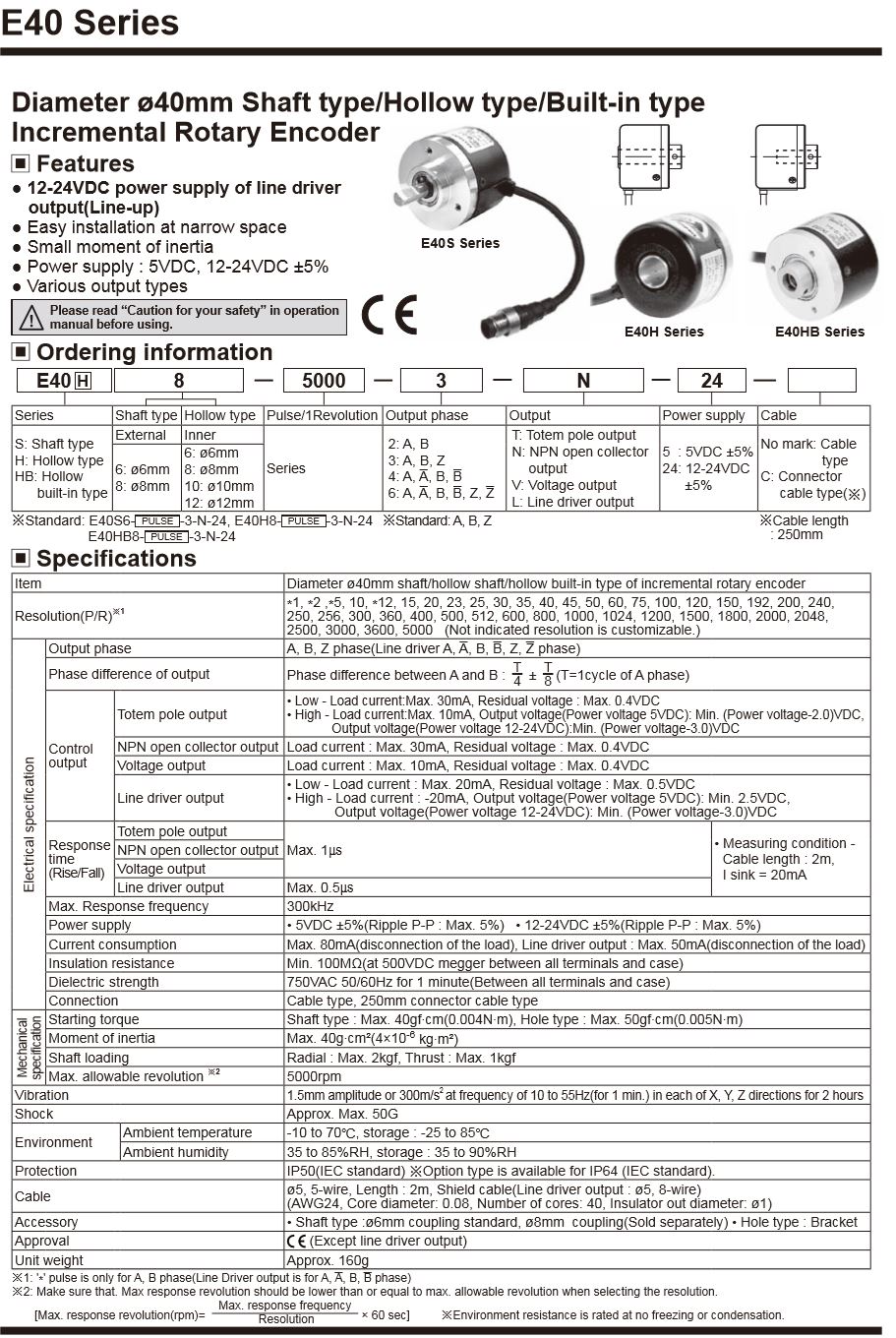

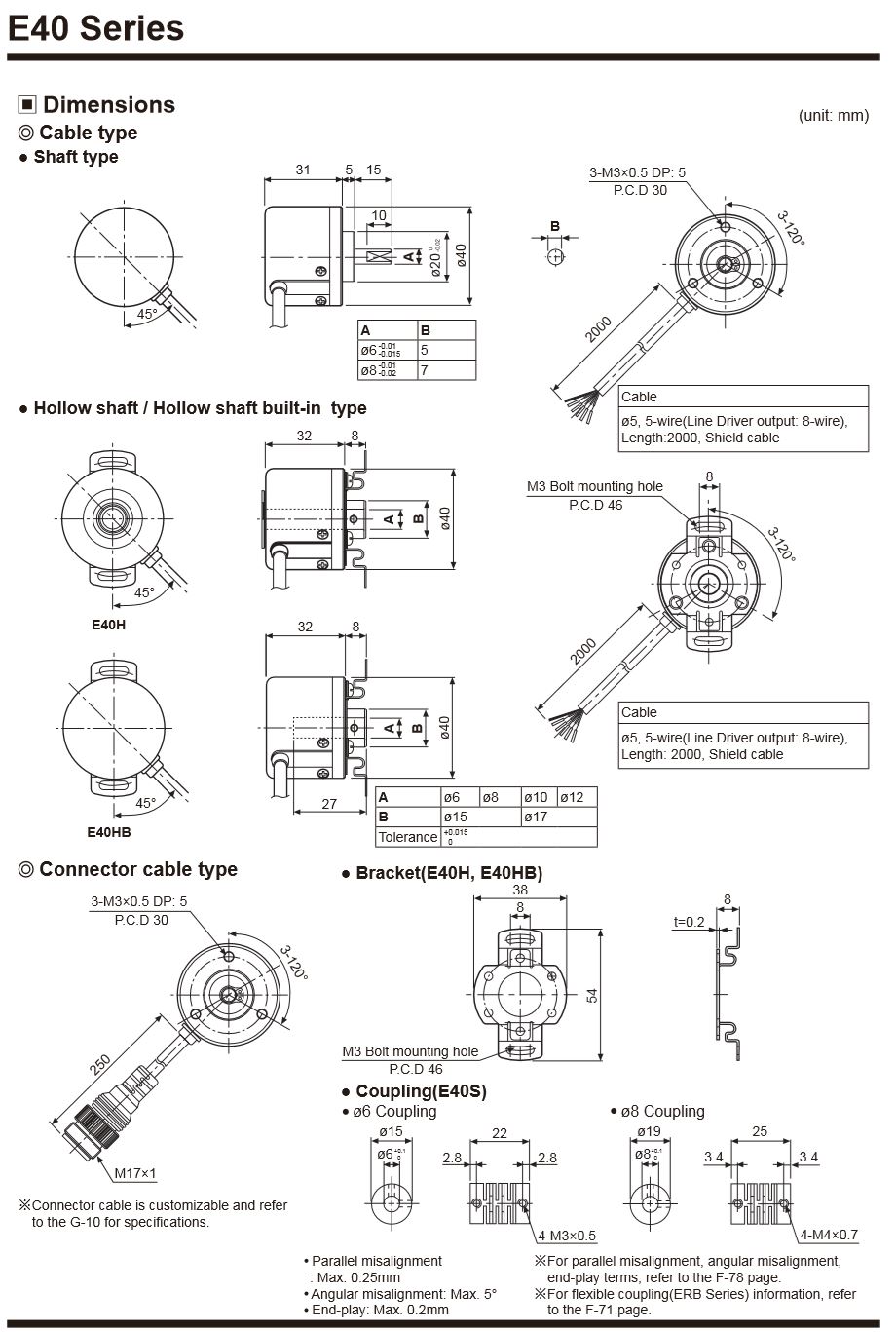

Description Specifications and Drawings

Hollow Shaft Encoder

Encoder, Incremental, 40mm, 8mm Hollow Shaft, 2048 PPR, A,A/,B,B/,Z,Z/ Line driver output, 5 VDC,400mm cable
Shaft inner diameterØ8mm
Max. response frequency300kHz
Max. allowable revolution5000rpm
Starting torqueMax. 50gf.cm(max. 0.0049N.m)
Resolution2048P/R
Output phaseA, , B, , Z,

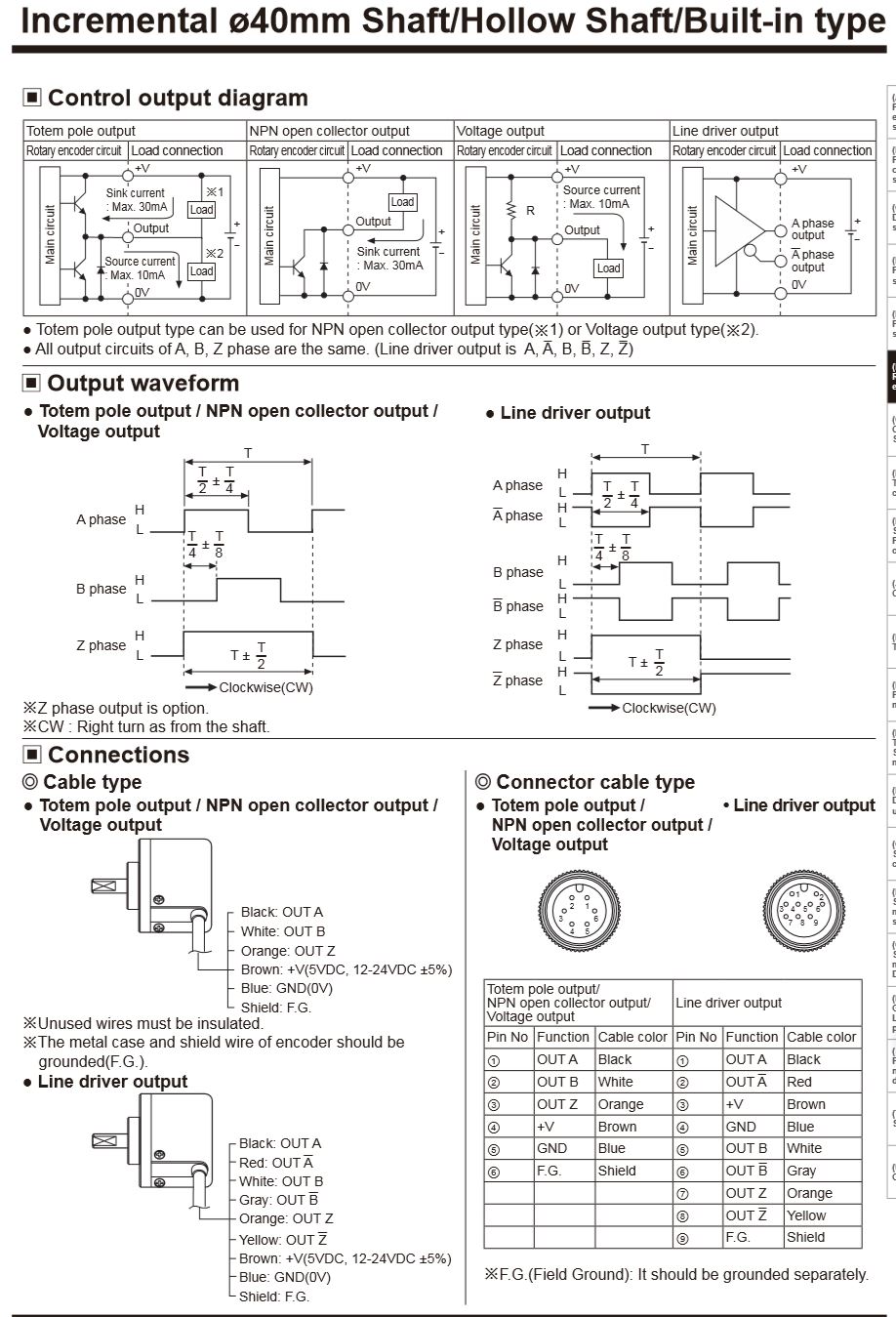

Control outputLine Driver
Power supply5VDC ±5%(ripple P-P: max. 5%)
Connection typeRadial cable type
Protection structureIP50
Environment_Ambient temperature-10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 90% RH
AccessoriesBracket
WeightApprox. 120g
