ESI Motion: Lightweight & Micro Sized Dual Axis Servo Drive Module (MITE)

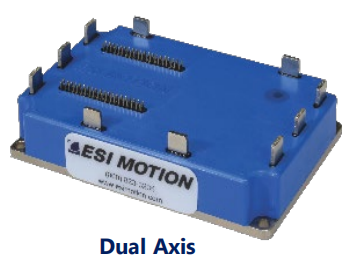

ESI Motion: Dual Axis Servo Drive Module - Mite

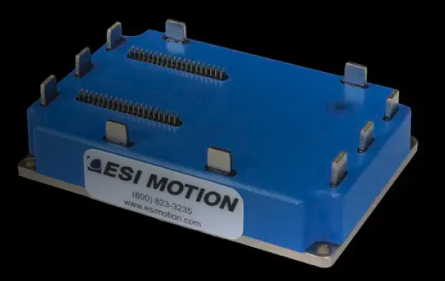

Alternate View


Request for Price, Lead time, and quantity


ESI Motion’s MITE Servo Drive Module is Extreme Power, Extreme Precision, Dual-Axis, Giant Reliability, and Small Footprint. The tiny Mite packs incredible power into a small package.
Bus Voltage (DC) 10V-170V, Peak Motor Current Up to 80A, Output Power 2kW


Price: (Members Only)


Availability: Subject to availability
Order #: MXXAYYYVPD


Accessories*:


Options*:


Model*:


.
Description Ordering Information Specifications and Drawings


Lightweight & Micro Sized Dual Axis Servo Drive Module (MITE)

The Dual-Axis Mite is one of the most unique extreme duty servo modules available on the market. Like other drives from ESI Motion, the Dual-Axis Mite is a combination of our durable control module and power driver modules. Unlike other drive systems, however, the Dual-Axis Mite offers a ruggedized solution in a package that is a fraction of the size and weight of units with similar capabilities.

The Dual-Axis Mite is perfect for many applications including robotics, space, industrial and military! If you need a Single-Axis version check out the Single-Axis Mite
The Dual-Axis Mite is as configurable as it is compact. No two systems are alike and our servo controllers give you the ability to specify a wide range of options to fit your needs.

Highlights

• Wide temperature range

• Aerospace ready • Compact size

• Single and dual-axis configurations available

• High-power density

• Configurable, user-friendly GUI with built-in scope features

Applications

• Gimbals & antenna positioners

• Missiles & armaments

• Satellites

• Unmanned systems

• Robotics

75+ Configurations

Specifications

BUS VOLTAGE (DC)

10V-170V

PEAK MOTOR CURRENT

Up to 80A

OUTPUT POWER

2kW

TEMPERATURE

-40ºC to 71ºC -55ºC to 100ºC (Extended)

ELECTRICAL SPEED

Up to 75,000 RPM

WEIGHT

3.7 oz (105g)

SIZE

2.0” L x 3.0” W x 0.6” H
