ESI Motion: Rugged High Voltage & High Temperature Servo Drive (Vulcan)
ESI Motion: Rugged High Voltage & High Temperature Servo Drive (Vulcan)

Request for Price, Lead time, and quantity

The Vulcan operates at high voltages, and temperatures up to 121° C, Bus Voltage (DC) 24V to 610V, Peak Current up to 65A,Output Power 12kW, Motor Supports DC brushless, brushed and induction Feedback Supports sensorless, Encoder, hall & resolver.

Price: (Members Only)


Availability: Subject to availability

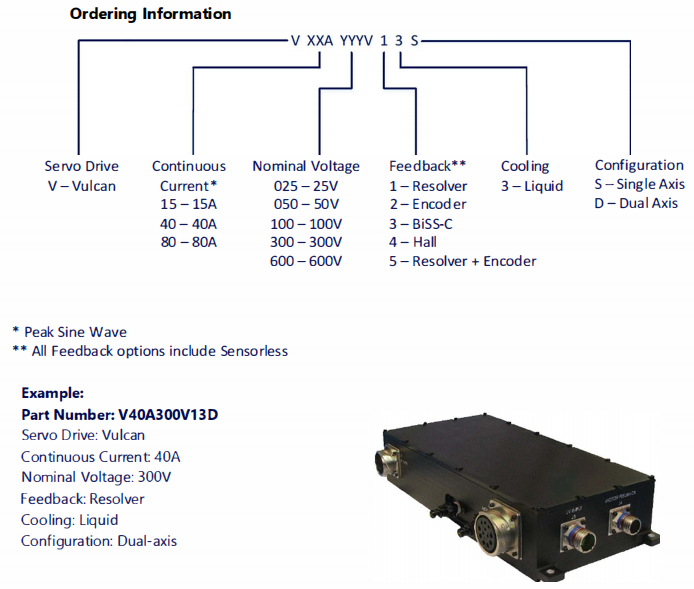

Order #: VXXAYYYV13S


Model*:


.

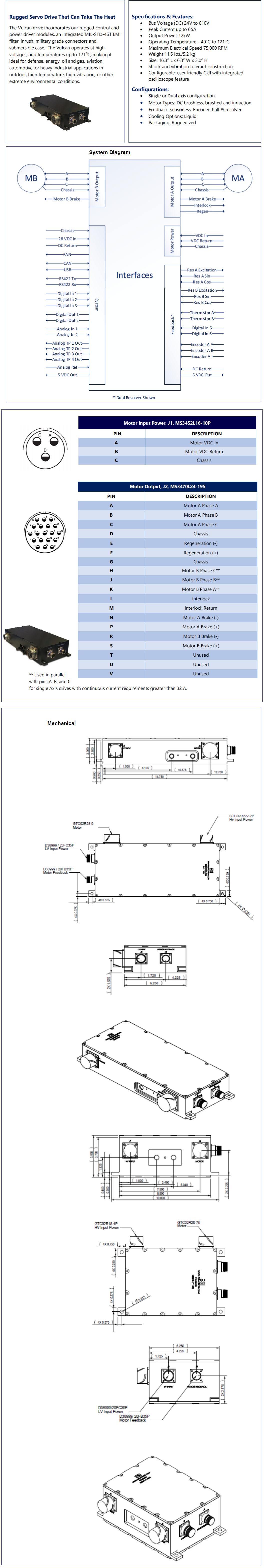

Description Ordering Information Specifications and Drawings


ESI Motion: Rugged High Voltage & High Temperature Servo Drive (Vulcan)

ESI Motion’s Vulcan Servo Drive offers the most thermally resistant, high-temperature and fully ruggedized servo control module. The Vulcan line is an integrated solution, with advanced features in a “plug-and-play” capable package. The Vulcan drive marries ESI’s rugged control systems with the equally durable power driver module, then adds integrated EMI filters, inrush limiters, military grade connectors and seals and a fully submersible case. The resulting product is an extremely ruggedized servo control package with unmatched performance.

The Vulcan drive incorporates our rugged control and power driver modules, an integrated MIL-STD-461 EMI filter, inrush, military grade connectors and submersible case. The Vulcan operates at high voltages, and temperatures up to 121° C, making it ideal for defence, energy, oil and gas, aviation, automotive, or heavy industrial applications in outdoor, high temperature, high vibration, or other extreme environmental conditions.

Specifications:

BUS VOLTAGE (DC)

24V-610V

PEAK MOTOR CURRENT

65A

TEMPERATURE (AMBIENT) (COOLANT)

-40ºC to 121ºC -40ºC to 85ºC

ELECTRICAL SPEED MAX

Up to 75,000 RPM

WEIGHT

11.5 lbs (5.2 kg)

MOTOR TYPES

DC Brushless, Brushed and Induction

FEEDBACK OPTIONS

Sensorless, Encoder, Resolver, Hall

COOLING OPTIONS

Liquid

PACKAGING

Ruggedized

SIZE

16.3” L x 6.3” W x 3.0” H
