ESI Motion: Ultra-Low Weight & Compact Single-Axis Sized Servo Drive System - P XXA 80V X (Proton)
ESI Motion: Single Axis Servo Drive Module -Proton

Request for Quantity and Price

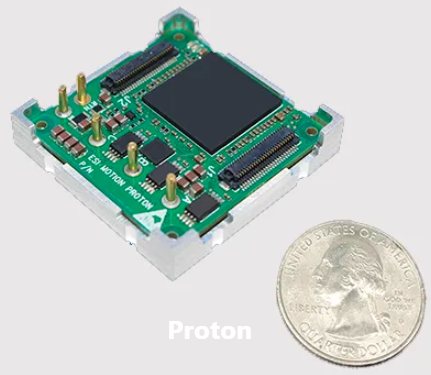

ESI Motion’s Proton leads the industry with its extremely small size and low weight. The Proton is a high-performance digital servo controller that can source 50 Amps with an 80 VDC bus to drive the most demanding applications.

Price: (Members Only)


Availability: Subject to availability
Order #: PXXA80VX


Model*:

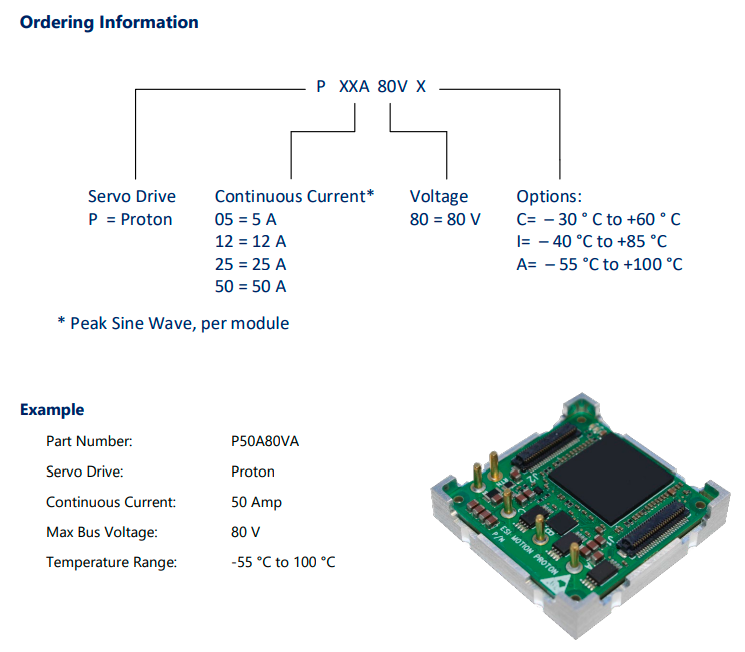

Option Example: P = Proton. 05 = 5 A Continuous Current. 80 = 80 V. Options: A= – 55 °C to +100 °C. I= – 40 °C to +85 °C. C= – 30 ° C to +60 ° C.

Accessories*:

.
Description Ordering Information Specifications and Drawings


Ultra-Low Weight & Compact Single-Axis Sized Servo Drive System - PXXA80VX (Proton)

ESI Motion’s servo drive systems are designed for precision military, aviation, automotive, robotics, and specialized industrial applications where size and weight are critical. ESI Motion’s Single-Axis Proton leads the industry with its extremely small size and low weight. The Proton is a high-performance digital servo controller that can source 50 Amps with an 80 VDC bus to drive the most demanding applications. These tiny drives have a high-power density and proven field reliability.
If you need a dual axis drive which isn’t much larger, check out the (up to) 100A Atom! Both drives are now available in EtherCAT!
Specifications:

Bus Voltage Range:

8VDC – 80VDC

Continuous Motor Current:

50 Amps

Continuous Output Current without Heatsink:

30 Amps

Max Output Power:

3850W (80 VDC Bus, Motor Current 50 Amps peak-of-sin)

Wide Operating Temperatures:

Aerospace -55°C to 100°C , Industrial -40°C to 85°C , Commercial -30°C to 60°C

WEIGHT

0.59oz (16.72g)

SIZE

37.1mm x 37.1mm x 10.4mm (1.47” L x 1.47” W x 0.41” H)
ESI Motion Servo Drive Module
