ESI Motion: Versatile High-Power Density Servo Drive(Draco)
ESI Motion: Versatile High-Power Density Servo Drive(Draco)

Request for Price, Lead time, and quantity

ESI Motion’s Draco versatile servo drive is ideal for high-performance applications operating at high temperatures, in high vibration, or other extreme environmental conditions.
Nominal Voltage Options: 300VDC or 600VDC,Maximum Continuous Output Current to 120A,Maximum DC Power to 33.35 kW

Price: (Members Only)


Availability: Subject to availability
Order #: DCXXXAYYYVCS


Model*:


Options*:


.

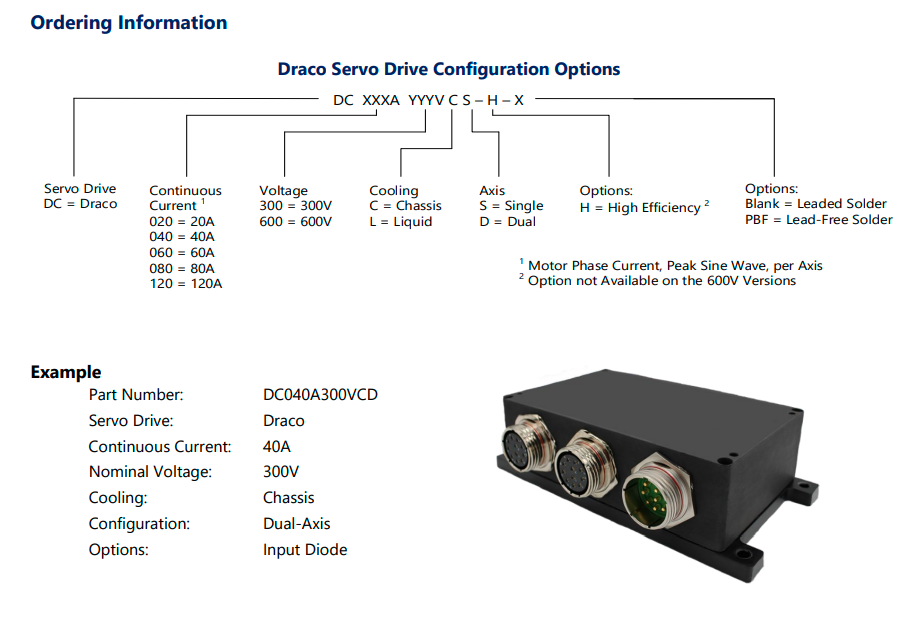

Description Ordering Information Specifications and Drawings

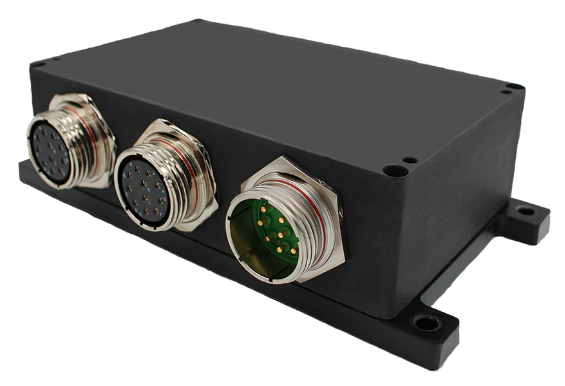

Versatile High-Power Density Servo Drive (Draco)
ESI Motion’s Draco Servo Drive provides power house performance in a small, lightweight package. Draco incorporates our rugged, high-density DSP controller and power driver modules, offers several feedback options, and is packaged in a military-grade submersible case.

ESI Motion’s Draco Servo Drive builds upon the success of our flagship Dragon servo motor line with size and weight reductions, and performance increases, utilizing state-of-the-art wide bandgap technology. It is available in multiple configurations to fit a myriad of applications. Draco incorporates our rugged, high-density DSP controller and power driver modules, offers several feedback options, and is packaged in a military-grade submersible case.

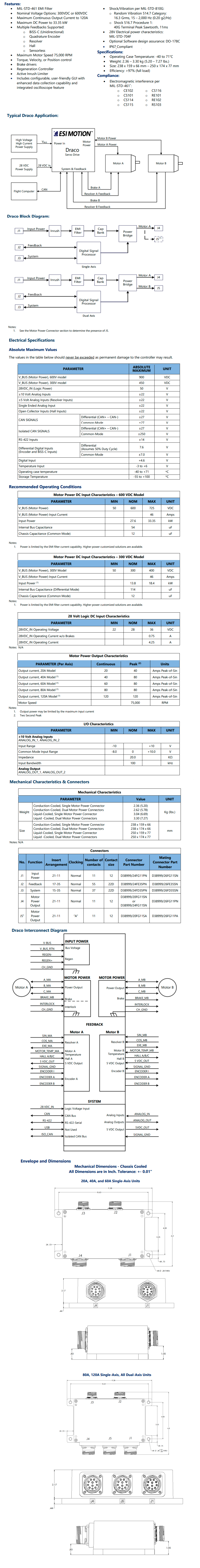

Specifications:

NOMINAL Vbus OPTIONS

300VDC or 600VDC

MAXIMUM CONTINUOUS OUTPUT CURRENT

40A Per Axis (80A for paralleled axis model)

MAXIMUM DC POWER

29 kW

TEMPERATURE

-40ºC to 71ºC

ELECTRICAL SPEED

Up to 75,000 RPM

WEIGHT SINGLE CHANNEL DUAL CHANNEL

5.36 lbs 5.57lbs

EFFICIENCY

>97% (FULL LOAD)

FEEDBACK OPTIONS

Sensorless, Encoder, Quadrature Encoder, Resolver, Hall & BiSS-C

PACKAGING

Ruggedized

SIZE

9.38” L x 6.63” W x 2.60” H
