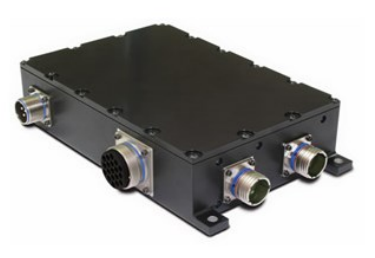

ESI Motion: Versatile High-Density Servo Drive (Dragon)
ESI Motion: Versatile High-Density  Servo Drive (Dragon)

Request for Price, Lead time, and quantity

ESI Motion’s Dragon Servo Drive Supports DC Brushless, Brushed, and Induction, Feedback: Sensorless, Encoder, Resolver, Hall, and BiSS-C, Bus Voltage (DC) 24 V to 610 V, Peak Current 40 A, Output Power 12 kW (per axis) Maximum Electrical Speed 75 K RPM

Price: (Members Only)


Availability: Subject to availability
Order #: DXXAYYYV11S


Model*:


.

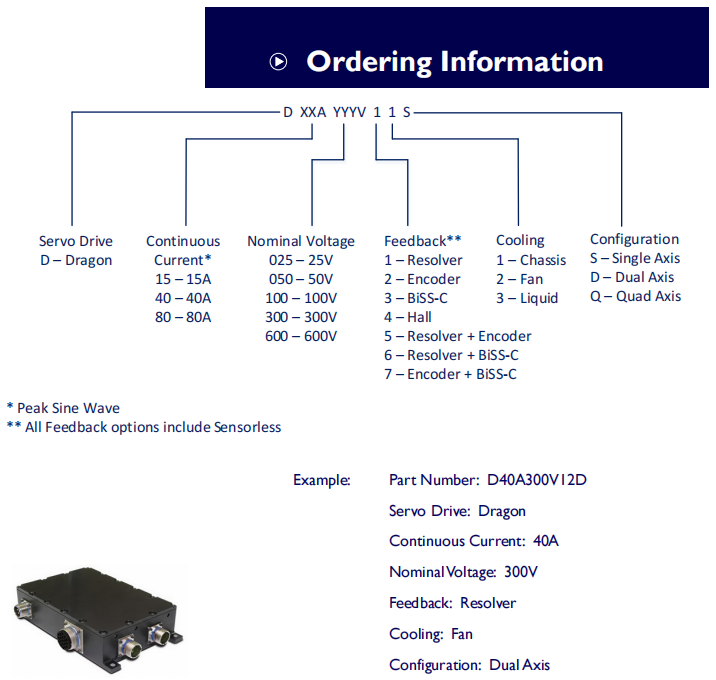

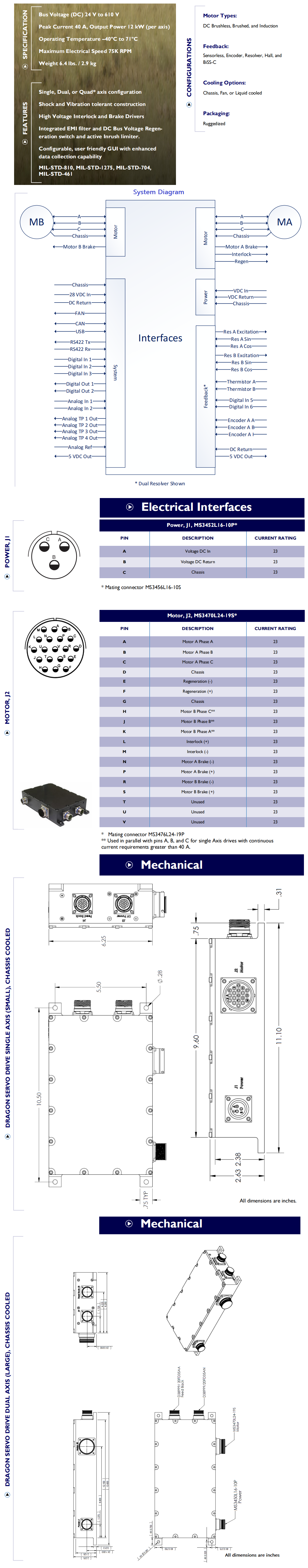

Description Ordering Information Specifications and Drawings


Versatile High-Density Servo Drive (Dragon)
ESI’s Dragon motor control line supports swift deployment into extreme applications. Our integrated modular system combines all critical functions into lightweight rugged packaging. The Dragon has the agility and flexibility you expect from a high-performance control system and is available in multiple configurations. The Dragon has been proven in rugged applications such as military and commercial vehicles. We can modify or customize the Dragon to suit your application.

ESI Motion’s Dragon Servo Drive is the core of ESI’s, fully integrated “plug and play” control solution.

This highly capable servo drive system has the agility and flexibility to offer multiple configurations. The Dragon incorporates our rugged controller and power driver modules, offers several feedback options, and is performance military, aviation, and packaged in a military-grade submersible case. This versatile servo drive is ideal for high specialized industrial applications operating outdoor, at high temperatures, in high vibration, or other extreme environmental conditions.
Specifications:

BUS VOLTAGE (DC)

24V – 610V

PEAK MOTOR CURRENT

Up to 80A

OUTPUT POWER

12kW

TEMPERATURE

-40ºC to 71ºC

ELECTRICAL SPEED

Up to 75,000 RPM

WEIGHT CHASSIS COOLED SINGLE CHASSIS COOLED DUAL

6.4 lbs (2.9kg) 8.6 lbs (3.9kg)

MOTOR TYPES

Brushless, Brushed and Induction

FEEDBACK OPTIONS

Sensorless, Encoder, Resolver, Hall & BiSS-C

PACKAGING

Ruggedized

SIZE SMALL LARGE

11.3” L x 7.0” W x 2.7” H 13.8” L x 7.0” W x 2.7” H
