AllMotion: EZ4AXIS17XR-ST USB Starter Kit
Stepper Motor Control Starter Kits

The SK-4AXIS17XR Starter Kit combines an EZ4AXIS17XR-ST Stepper Motor Controller + Driver and communication cables required for the first time user to get 4 Stepper Motors moving in less than half an hour. The user needs to provide only a power supply, stepper motors and a PC.

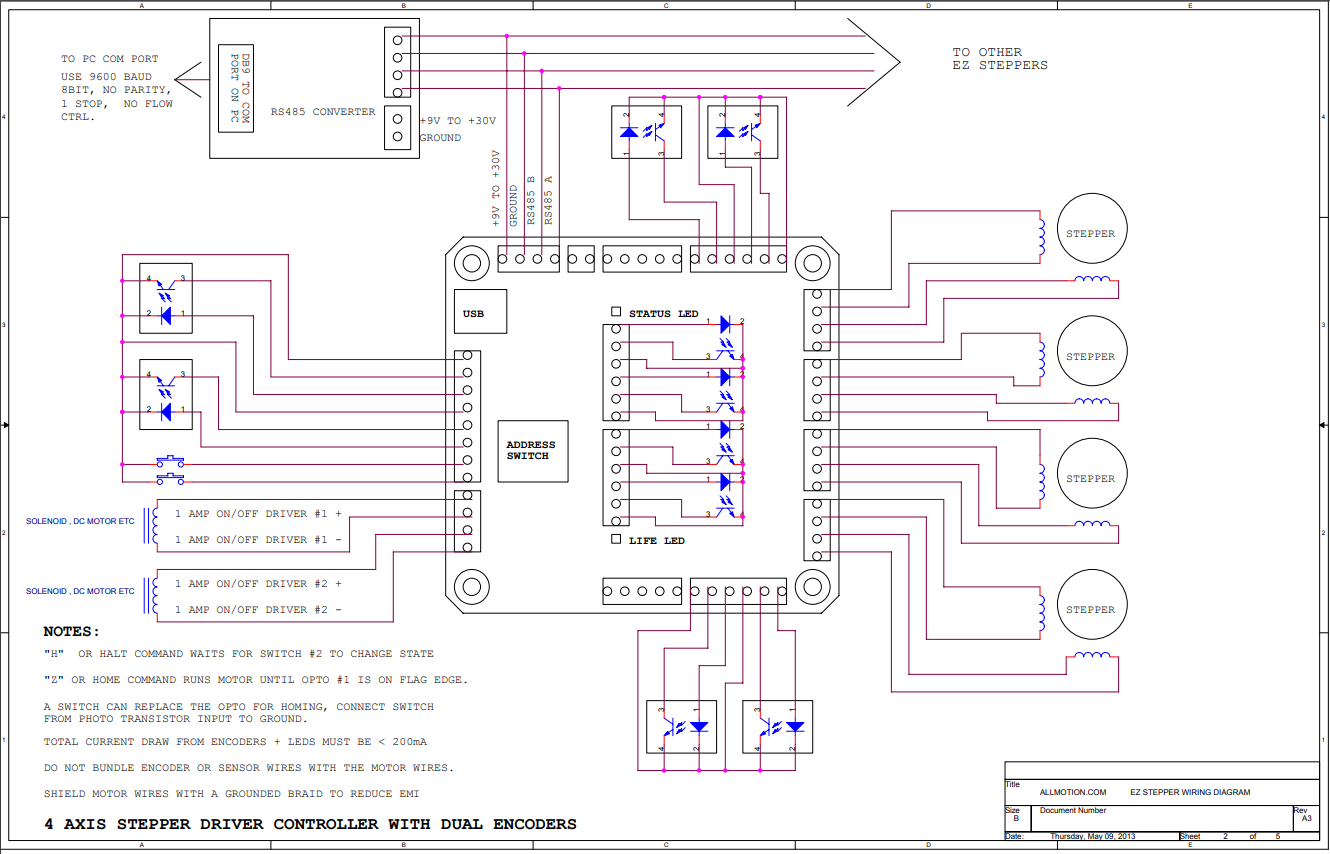

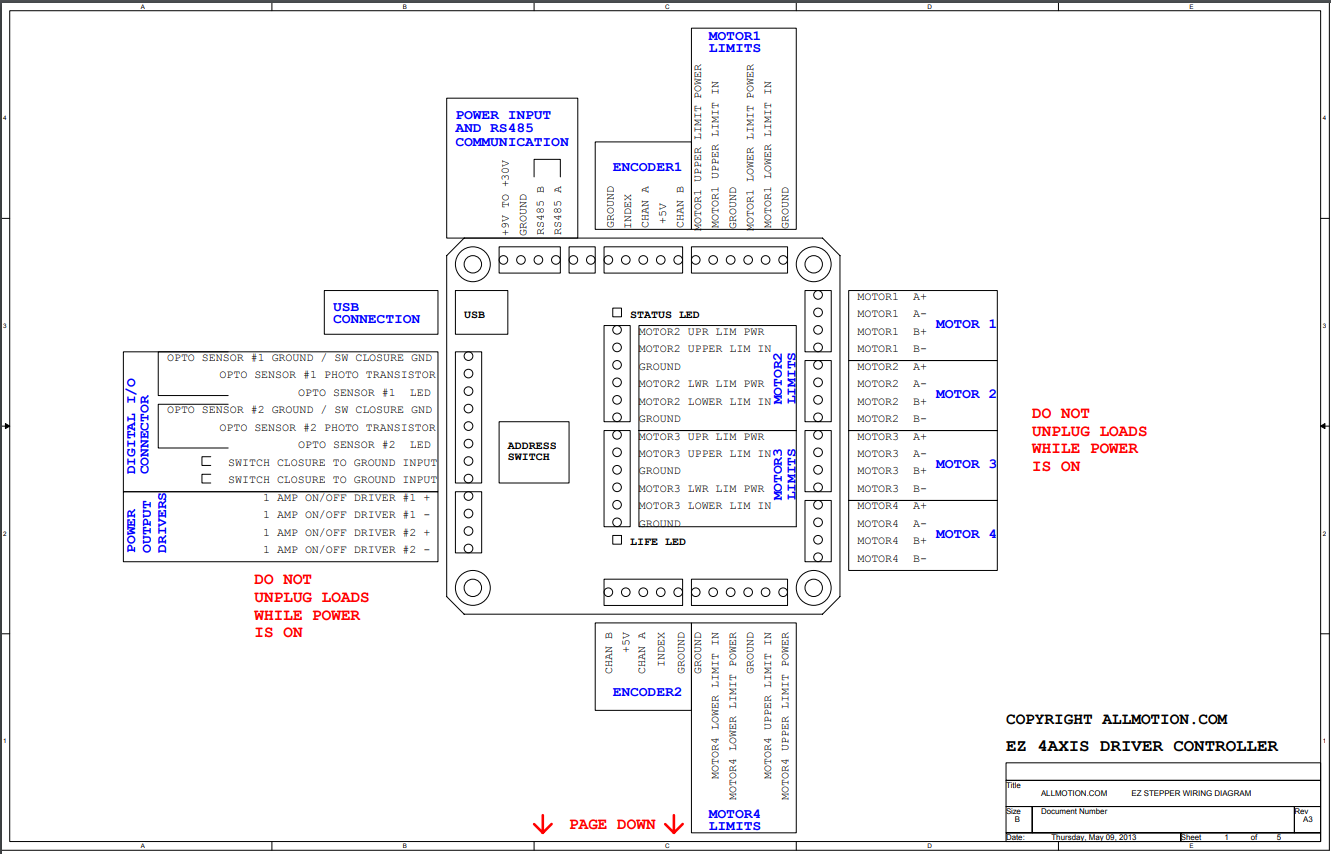

The EZ4AXIS Wiring Diagram shows exactly how to wire the EZ4AXIS Stepper Motor Controller + Drive.

Once your motor is connected, connect the USB cable to your PC and you'll be ready to start moving your motor. Please refer to the EZ Start Document available on the website.

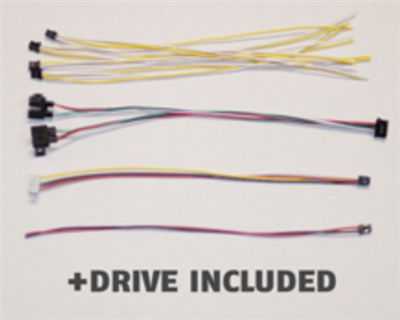

KIT CONTENT:

• One EZ4AXIS17XR-ST Stepper Motor Controller + Driver Board.
• One Pre-Wired Opto Interrupter, for use as a home flag.
• USB Cable
• Please download most current documentation and software from the Website.

Kit Includes:

EZ4AXIS17XR-ST Stepper Motor Control+Driver
