AllMotion: EZ4AXIS23WV USB Starter Kit(EZ4AXISSK)
AllMotion: EZ4AXIS23WV USB Starter Kit(EZ4AXISSK)


Price: (Members Only)


Availability: Usually Ships in 3 to 5 Business Days
Order #: EZ4AXISSK
Qty:

Description Specifications and Drawings


AllMotion: EZ4AXIS23WV USB Starter Kit(EZ4AXISSK)
Stepper Motor Control Starter Kits

Everything to get 4 Motors running within half an hour!

The EZ4AXISWVSK Starter Kit combines an EZ4AXIS23WV (1 Amp 30V) Stepper Motor Controller + Driver and communication cables required for the first time user to get 4 Stepper Motors moving in less than half an hour. The user needs to provide only a power supply, stepper motors and a PC.

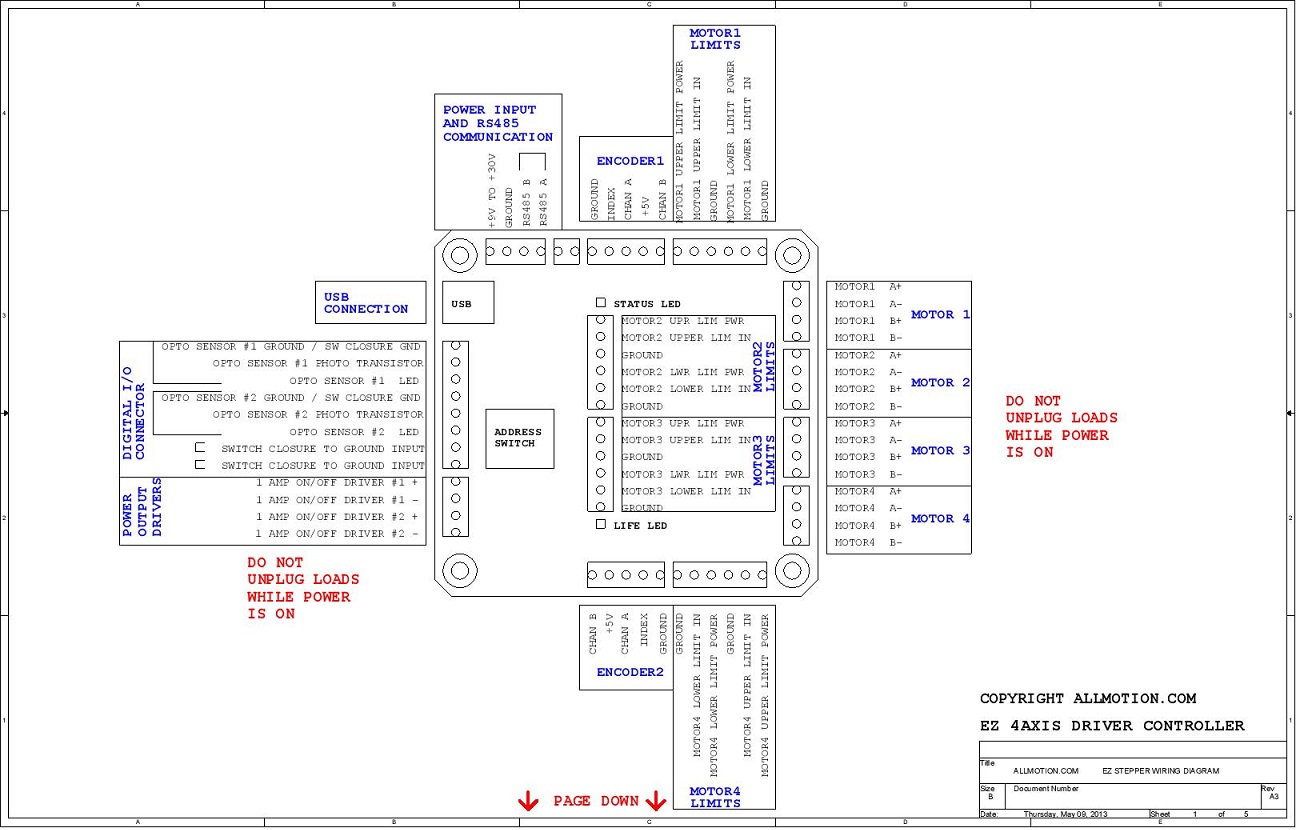

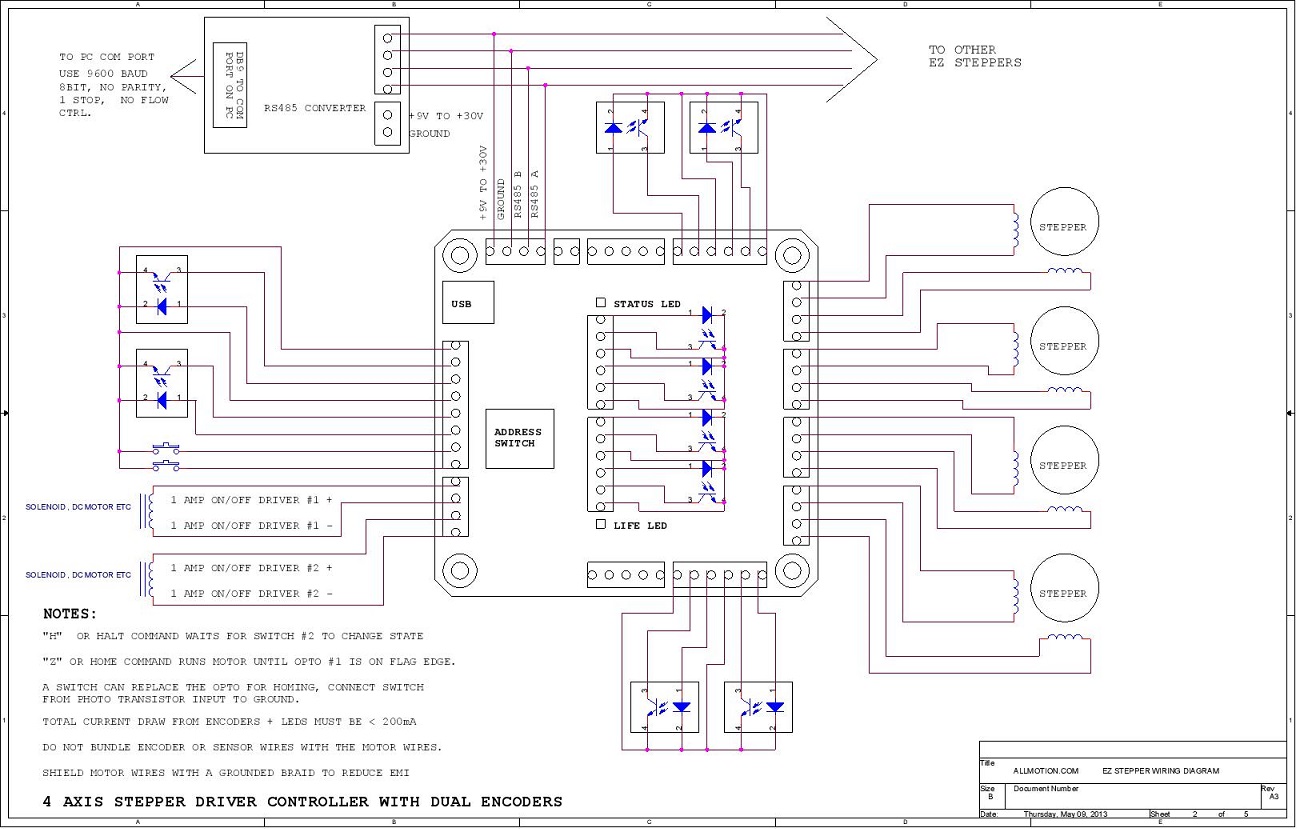

The EZ4AXISWV Wiring Diagram shows exactly how to wire the EZ4AXISWV Stepper Motor Controller + Drive.

Once your motor is connected, connect the USB cable to your PC and you'll be ready to start moving your motor. Please refer to the EZ Start Document available on the website.

KIT CONTENTS:

  • One EZ4AXIS23WV Stepper Motor Controller + Driver Board
  • One Pre-Wired Opto Interrupter, for use as a home flag
  • USB Cabl
  • Please download most current documentation and software from the Website.

Kit Includes:

Share your knowledge of this product. Be the first to write a review »
