AllMotion: EZHR23ENHC RS232 Starter Kit
AllMotion: EZHR23ENHC RS232 Starter Kit



Price: (Members Only)


Availability: Usually Ships in 3 to 5 Business Days
Order #: EZHR23ENHC-RS232-STARTER-KIT
Qty:

Description Specifications and Drawings


AllMotion: EZHR23ENHC RS232 Starter Kit
Stepper Motor Control Starter Kits

Everything to get your Motor running within half an hour!

The EZHR23ENHCSK Starter Kit combines an EZHR23ENHC (7 Amp 40V) Stepper Motor Controller + Driver, an RS485 Converter, and all cables required for the first time user to get their Stepper Motor moving in less than half an hour. The user needs to provide only a power supply, stepper motor, and a PC.

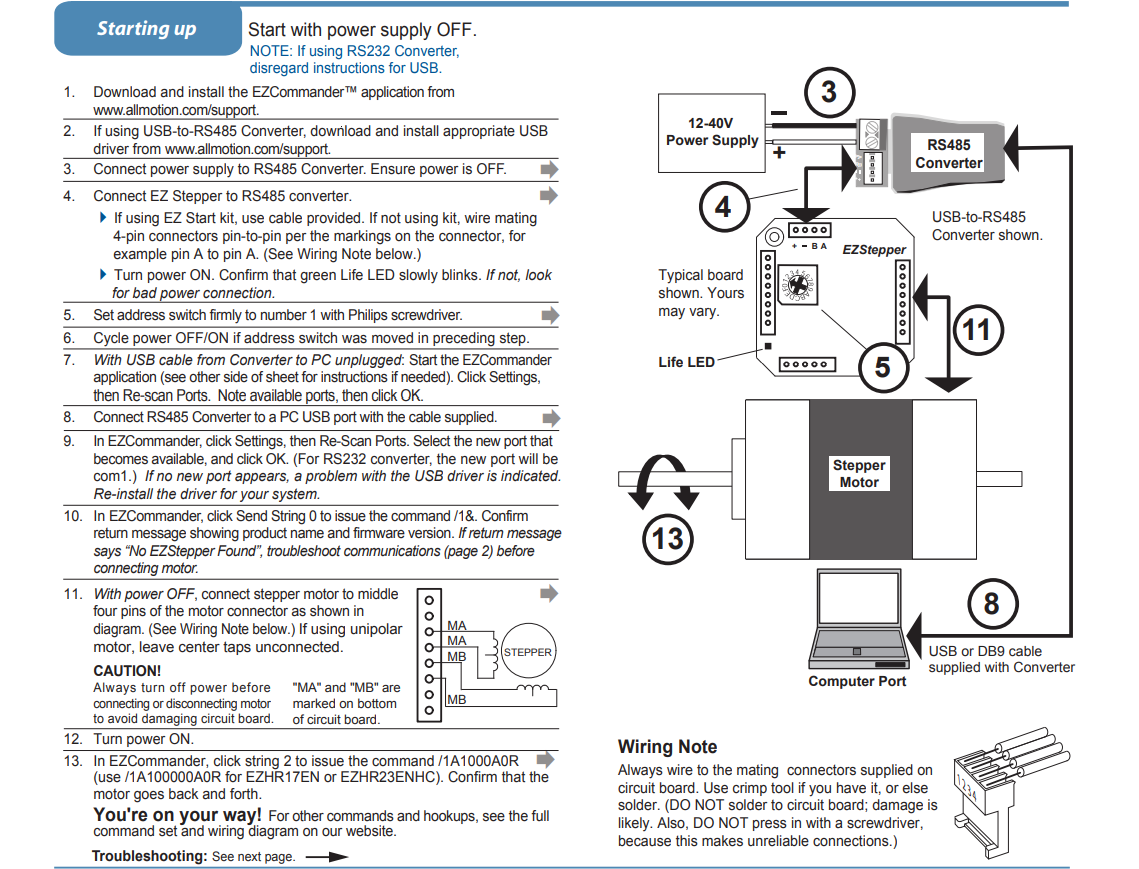

The second page of the EZStepper Wiring Diagram shows exactly how to wire the EZHR23 Stepper Motor Controller + Drive.

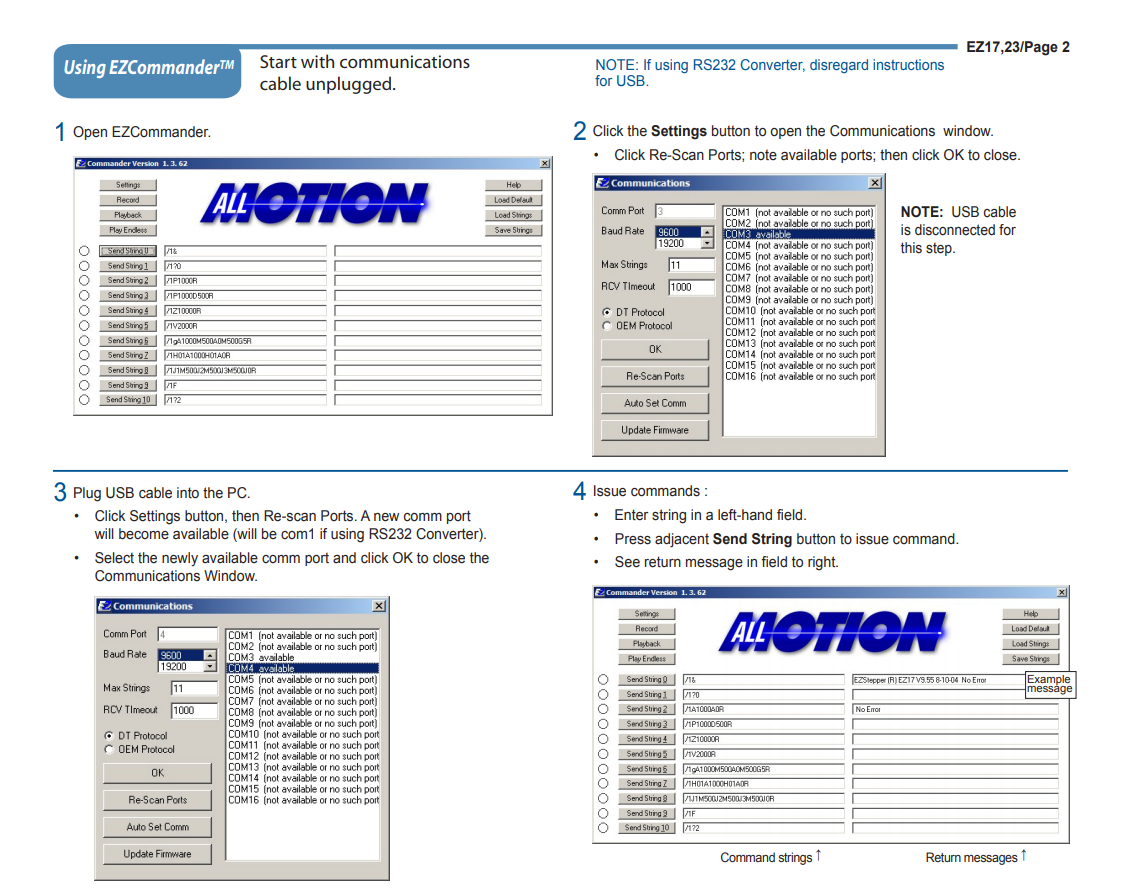

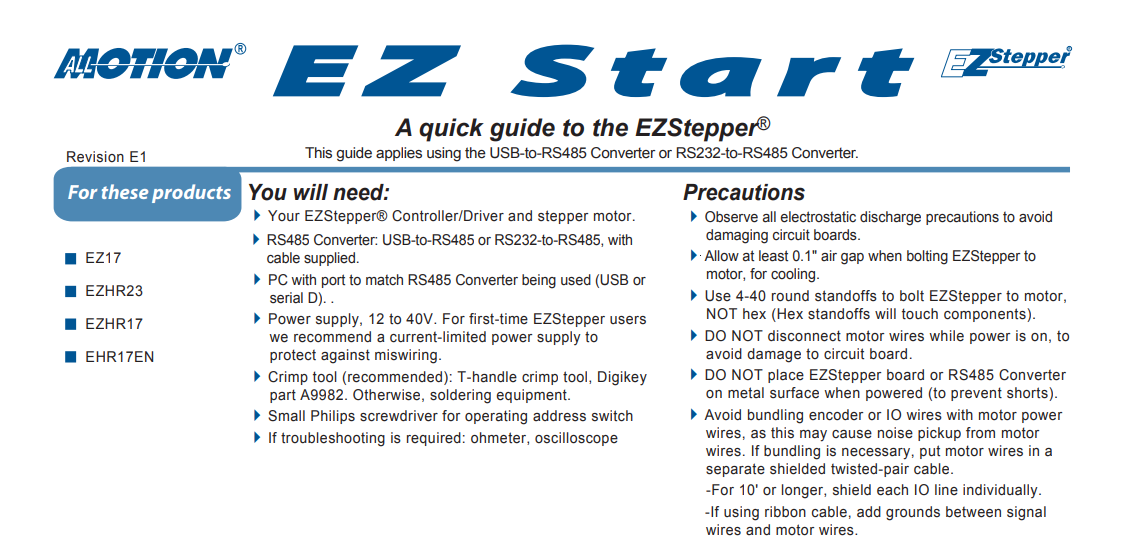

Once your motor is connected, connect the RS-485 Converter to your COM port on your PC and you'll be ready to start moving your motor. Please refer to the EZ Start Document available on the website.

Kit Includes:
