AMC China: Servo Drive CZRALTE-020B080
Economic Servo Drive, CZRALTE-040B080, 12A rated current,20A peak current,10-80VDC

Economic Servo Drive, CZRALTE-020B080, 12A rated current,20A peak current,10-80VDC

Price: (Members Only)

Quantity in Stock:397

Availability: Usually Ships in 1 to 2 Weeks
Order #: CZRALTE-020B080
Qty:

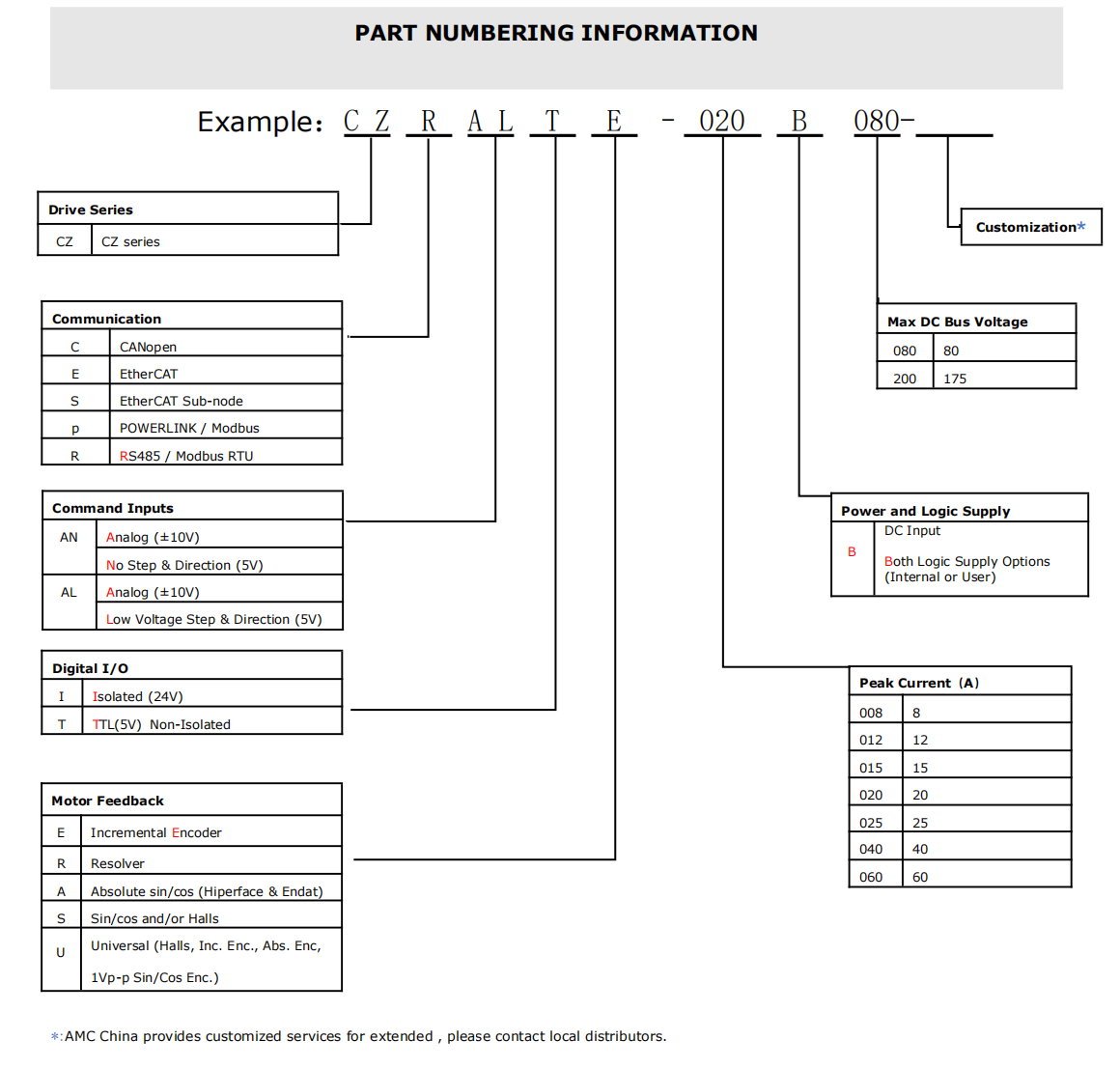

Description Ordering Information Specifications and Drawings


AMC China: Servo Drive CZRALTE-020B080

CZR Series digital servo drives are designed to drive brushed and brushless servo motors, stepper motors and AC induction motors. These all-digital drives operate in torque, speed or position mode and use space vector modulation (SVM) technology. Compared with traditional PWM, it can improve bus voltage utilization and reduce heat dissipation. The drive can be configured to use various external command signals, or the drive's built-in motion engine (internal motion controller for distributed motion applications) can be used to configure commands. In addition to motor control, these drives also have dedicated programmable digital and analog inputs and outputs to enhance the interface with external controllers and devices.

CZR series drives have the network communication function of RS-485/232 or Modbus RTU, they can all be connected to DriveWare®7 software through RS232 to complete drive debugging and configuration.


SPECIFICATIONS

Size (mm)119 x 105.5 x 43
Weight (g)430
Temperature (℃)0-75
Current Continuous (A)12.0(12.0Arms)
Current Peak (A)20.0(14.1Arms)
DC Supply Voltage (VDC)10 - 80
Network Communication
RS-485/232 / Modbus RTU

CONTROL/COMMAND

  • ±10 V Analog
  • Encoder Following
  • Indexing
  • Jogging
  • Over the Network
  • PWM and Direction
  • Sequencing

PRIMARY FEEDBACK

  • ±10 VDC Position
  • Halls
  • Incremental Encoder
  • Tachometer (±10 VDC)

OPERATING MODE

  • Interpolated Position Mode (PVT)
  • Profile Modes
  • Cyclic Synchronous Modes
  • Current
  • Position
  • Velocity

MOTOR TYPE

  • Three Phase (Brushless)
  • Single Phase (Brushed)
  • AC Induction
  • Stepper
