AMC: DIGIFLEX® PERFORMANCE™ Modbus RTU, RS-485/232 Drive Mounting Card MC1XDZR03-HP1

The MC1XDZR03-HP1 mounting card is designed to host a DZR or DZXR series DigiFlex® Performance™ digital servo drive. The drive plugs into the bottom side of the mounting card, providing a compact assembly with connectors and switches readily accessible. The MC1XDZR03-HP1 is ideal for prototyping and integrating a DZR or DZXR series digital servo drive in your machine.

The MC1XDZR03-HP1 utilizes side-entry right angle fixed screw terminals for the Motor and Power connectors. For vertical-entry quick-disconnect Motor and Power connections use the MC1XDZR03-QD mounting card.

The MC1XDZR03-HP1 is designed to host DZR and DZXR drive models with a 60 amp peak current rating (-060L080 models). Drives with a lower peak current rating may be used with the MC1XDZR03-HP1, although ADVANCED Motion Controls recommends the MC1XDZR03 or MC1XDZR03-QD for other drive models

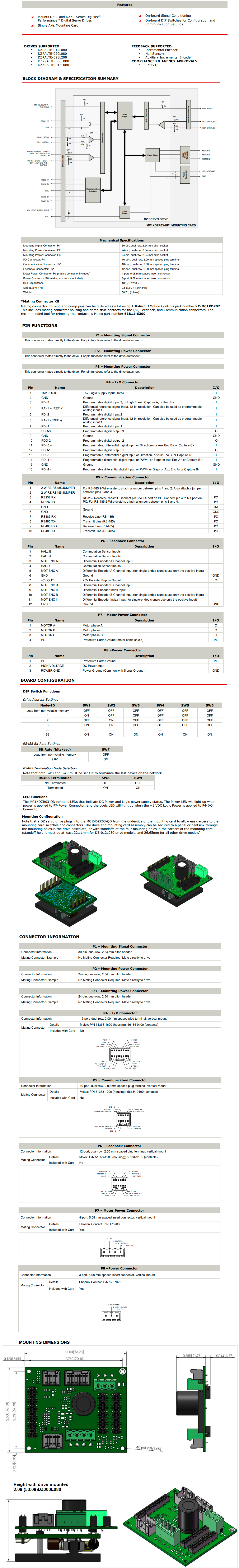

Specifications:

The MC1XDZR03-HP1 mounting card is designed to hold a high-current DZRALTE or DZXRALTE DigiFlex® Performance™ family pcb mount servo drive to simplify connection to the controller, motor, and feedback.

Downloads:
Datasheet_MC1XDZR03-HP1.pdf

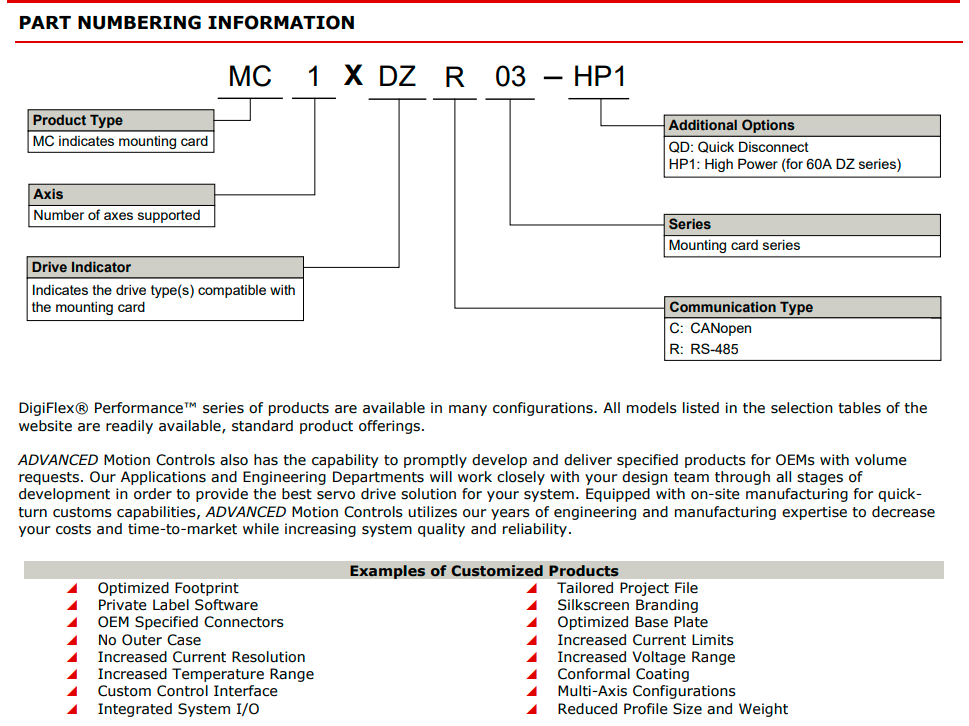

Product-Identification.pdf
