Fanuc Series 31i-MODEL B5

Part Number: A02B-0326-B602
Product Series: A02B-0326.

FEATURES:
Max. number of path: 6 path

Max. total number of control axes: 34 axes (26 feed axes, 8 spindles)
Max. number of simultaneous control axes: 5 axes

In addition to the features of above 31i-B, this model has simultaneous 5-axis machining function and can machine the work of complex shape at high-speed, highly-accurate and high-quality. It is suit for the leading-edge 5-axis machining center.

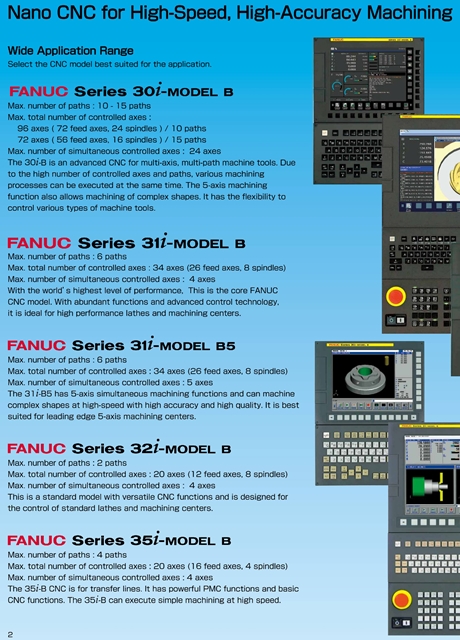

FANUC CNC Series 30i/31i/32i- model-B .

The CNC Series 30i/31i/32i-MODEL B are designed for today’s most complex, high-performance machines with a large number of axes, multiple part program paths and high-speed auxiliary machine functions. The Series 30i-MODEL B supports up to 32 servo axes, 24 simultaneous interpolated axes, 8 spindles and 5 independent PMC machine ladders. The CNC Series 30i/31i/32i-MODEL B is ideal for your next machine, whether it is a simple lathe or mill, or the most complex part profile, multi-axis application.

HIGHLIGHTS
5 axis machining with CNC Series 30i-MODEL B and CNC Series 31i-MODEL B5, for precision parts that faithfully match the original CAD drawing, with faster cycle times, improved surfaces finishes and simplified part programming, setup and operation.

Mill-turn and 5/6-sided machining, combining turning and milling in a single part program to reduce setup and cycle time and improve quality.

Linear and rotary transfer machining for the shortest cycle times for high volume manufacturing with the convenience and simplicity of a single CNC interface for multiple spindles and stations.

Precision grinding, with the performance and accuracy for cylindrical, surface and profile grinding.

Gear cutting, synchronizing multiple axes and spindles and providing highly customized operator interfaces for high quality cylindrical and bevel gear machines.

Woodworking machining of large nested part programs at ultra-high speed while maintaining accuracy for flat-bed and 5-axis routers.

New processes and technologies that require high performance motion control in applications such as composite tape laying, riveting, water jet, laser, friction stir welding and EDM..
